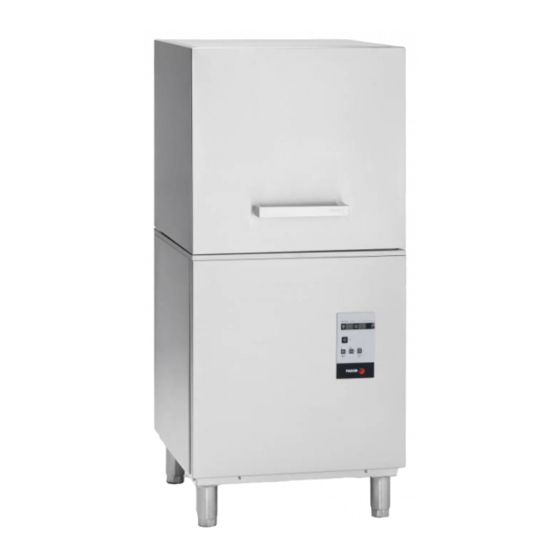

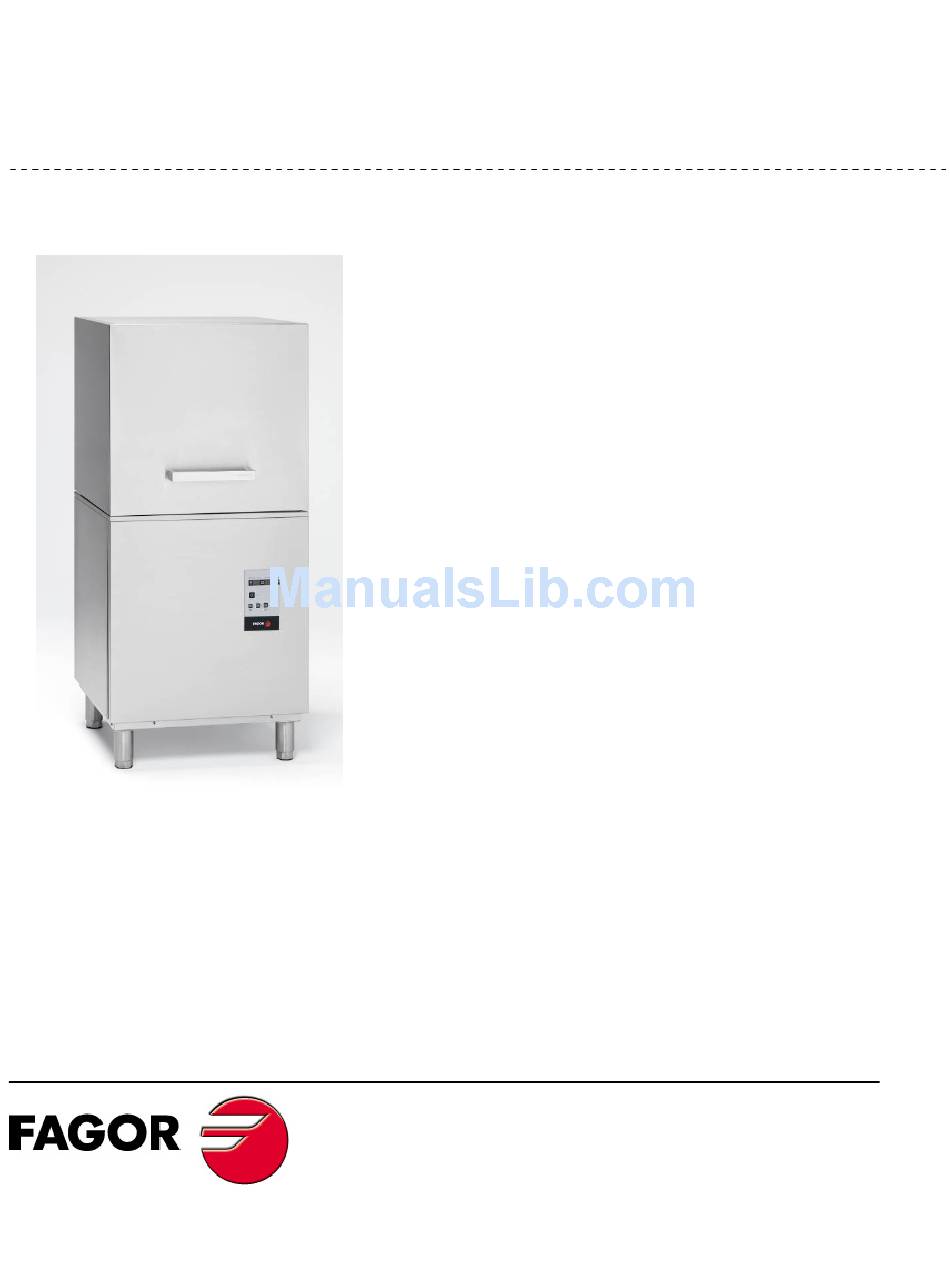

- Page 1 SERVICE MANUAL ********** 2013 DOOR STYLE DISHWASHER DOOR STYLE DISHWASHER Model: AD‐120CW ...
-
Page 2: Table Of Contents
DATA PLATE ................................4 POSITIONING ..............................5 WATER INSTALLATION ............................6 REQUESTED QUALITY OF THE WATER ......................7 WATER DRAINAGE INSTALLATION ........................7 ELECTRICAL CONNECTION ...........................8 TRANSFORMATION OF PHASES .............. ERROR! BOOKMARK NOT DEFINED. INSTALLATION CHECKLIST ............................9 OPERATION ............................... 10 TURNING THE MACHINE ON ......................... 10 PREPARING THE MACHINE ........................... 10 WASHING .............................. 10 DRAINING AND CLEANING .......................... 11 DETERGENT CONTROL ............................ 11 PREPARING THE WARE............................ 14 DELIMING .............................. 14 TROUBLESHOOTING ............................ 15 ELECTRICAL DIAGRAMS ............................. 18 WIRING SCHEMATICS ........................... 20 RECOMMENDED SPARE PARTS .............. ERROR! BOOKMARK NOT DEFINED. LIMITED WARRANTY ............................ 21 For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. II... -
Page 3: Specifications
Shipping volume (cu. ft.): 32 TECHNICAL SPECIFICATIONS Total Power Consumption Boiler Power Consumption Volts Amps Power (KW) Volts Amps Power (KW) 208/60/3 47.6 14.4 208/60/3 32.2 9.8 220/60/3 50.1 16.1 220/60/3 33.8 11 240/60/3 53.2 19.2 240/60/3 35.4 13.1 Pump Power Consumption Volts Amps Power (KW) 208/60/3 5.2 1.2 220/60/3 5.4 1.2 240/60/3 6 1.2 Total Power Consumption Boiler Power Consumption Volts Amps Power (KW) Volts Amps Power (KW) 208/60/1 75.1 14.4 208/60/1 52.2 9.8 220/60/1 79.1 16.1 220/60/1 54.9 11 240/60/1 85.8 19.2 240/60/1 59.4 13.1 Pump Power Consumption Volts Amps Power (KW) 208/60/1 5.2 0.9 220/60/1 5.4 1.0 240/60/1 6 1.2 For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 3... -
Page 4: Installation
INSTALLATION VISUAL INSPECTION Before installing the unit, check the package and machine for damage. All machines have been tested, inspected and packed at the factory and is expected to arrive to you in new, undamaged condition. Visually inspect the exterior of the package. Any damage should be noted and reported to the delivering carrier immediately. If damaged, open and inspect the contents with the carrier. In the event that the exterior is not damaged, yet upon opening there is concealed damage to the equipment, please notify the carrier. Notification should be made verbally as well as in written form. Request an inspection by the shipping company of the damaged equipment. Also, contact the dealer through which you purchased the unit. INSTALLATION DIAGRAMS W = Water inlet R = Terminal Block D = Drain hose V = Vacuum breaker C = Electrical M = Pressure Gauge Fig. 1 For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 4... -
Page 5: Data Plate
Any transformations or changes made on the machines during installation should be reflected on the data plate or using a label as below: Total load at indicated POSITIONING Leveling and adjusting the height of the appliance is done by turning the leveling stands to the desire height. Ensure that the unit is level before making any connections (Fig. 2). FI‐48W FI‐72W FI‐64W Fig.2 For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 5... -
Page 6: Water Installation
T = Lid Fig. 3 CAUTION: Do not confuse static pressure with flow pressure. Static pressure is the line pressure in a “no flow” condition (all valves and services are closed). Flow pressure is the pressure in the fill line when the solenoid valve is opened during the cycle THE DISPLAY OF THE PRESSURE GAUGE SHALL BE CLEARLY VISIBLE OF THE OPERATOR OF THE MACHINE. THE GAUGE SHALL HAVE INCREMENTS OF 1 psi (7 kpa) OR SMALLER AND SHALL BE ACCURATE TO ±2 psi (±14 kpa) IN THE 20 psi (103‐172 kpa) RANGES. IF THE GAUGE IS LOCATED UPSTREAM OF THE CONTROL VALVE, IT SHALL BE MOUNTED IN AN ACCESSIBLE VALVE WITH A ¼ IN IRON PIPE SIZE CONNECTION. If the water pressure is less than 20 psi (1.4 kg/cm ), installation of a water pump is required as shown in Fig. 4. In areas where the pressure fluctuates or is greater than the recommended pressure, it is suggested that a water pressure regulator be installed. S = Stop cock F = Filter H = Hose E = Electro valve B = Electro pump M = Manometer R = ¾” Copper For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 6... -
Page 7: Requested Quality Of The Water
Use only the supplied hoses (3/4” Female hose connector) at the water connections. Failure to do so may result in damage to the solenoid valve threads and leaking. Tighten by hand. Connect the bent side of the hose to the machine. Adaptor supplied for ¾” female garden hose connection. FOR HARD WATER SUPPLIES WITH A HARDNESS OF OVER 2 GRAINS OR 10ºF AND PH BEYOND THE RANGE OF 7.0 – 8.5, A WATER CONDITIONER MUST BE INSTALLED. Slowly turn on the water supply to the machine after the incoming fill line and the drain line have been installed. Check for any leaks and repair as required. All leaks must be repaired prior to placing the machine in operation. WATER DRAINAGE INSTALLATION Attach the drain hose as shown in Fig. 5. It is recommended to affix a siphon pipe to prevent odors. All piping from the machine to the drain must be a minimum 1‐1/2” I.P.S. There should also be an air gap between the machine drain line and the drain. For natural overflow efficiency use floor drain. D = Drain hose C = Drain collector A = Air Gap F = Scrap Basket Fig. 5 For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 7... -
Page 8: Electrical Connection
TANK CONTACTIOR BR Brown Z203050 BK Black Remove BR GY GY Gray ² 1x Z683097 16mm BL Blue ² 3x 683069 16mm Yellow Install ² 2x R263003 35mm Green WARNING: Electrical Shock Hazard It is the personal responsibility and obligation of the customer to contact a qualified electrician to assure that the electrical installation is adequate and is in conformance with the National Electrical Code, ANSI / NFPA 70 – latest edition and all local codes and ordinance. For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 8... -
Page 9: Installation Checklist
Is the incoming water supply at 20 ‐ 25 psi? Verify water hose, drain hose and chemical hoses are not kinked? Is the hot water supply at the optimum temperature (140ºF)? If not, list water temperature _______ °F Is the water hardness ≤2.0gpg/34.2ppm and PH level 7 ‐ 8.5ph? Has the drain plumbing been installed according to the instructions in this manual? Height of the drain hose ______ Air gap size _______ Was the drain installed to a garbage disposal? If yes, has been installed a back flow safety in case the garbage disposal fail? ____ Damages to a drain pump due to a failure of a garbage disposal will not be covered under warranty Is the overflow tube with the O‐ring fitted in its position inside the tank Is the detergent for commercial dishwashers? Have you adjusted the amount of detergent / rinse going to the machine? ____ Adjustments on detergent/rinse pump are not cover under warranty. Please refer to page 18 for instructions. In order to validate your warranty this checklist must be return to Fagor along with the product registration card. MODEL NO.__________________________ Registration can be completed by mail, phone, and fax or on the SERIAL NO.___________________________ website www.fagorcommercial.com INSTALLATION DATE ___________________ Fax: 3057790173 SERVICE REP. NAME ___________________ 13105 NW 47 Ave. Opa Locka, FL 33054 servicerequest@fagorcommercial.com PHONE Nº ___________________________ For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 9... -
Page 10: Operation
3 6 5 4 Fig. 9 TURNING THE MACHINE ON Press and hold the power button (1) for five seconds. LED # 2 will lit up and the machine will start filling up with water. PREPARING THE MACHINE After the machine has filled it will start heating up the rinse tank and the wash tank. The machine is ready to wash when the rinse thermometer (9) indicates 180º F (83˚C) and the tank thermometer (10) 160º F (71˚C). It is the user’s responsibility to wait until the minimum temperatures are displayed before putting the machine to wash. WASHING NOTE: All models are fitted with Thermo‐stop. The temperature of the incoming water should be higher than 120°F/ 50 ºC. (Ideal temp. 140°F/60 ºC) If it is lower, the machine's capacity may be affected and you may have extended cycles. There are 3 washing cycles for models described before: P1 (3), P2 (5) and P3 (7) of 60, 90 and 180 seconds respectively. (Fig.7). LED’s numbers 4, 6 and 8 indicate that the machine is working; depending on selected If you start your dishwasher prior to your booster heater (9) programme, one or other led will switch on. reaching a minimum of 180º F (83ºC), YOU WILL HAVE AN EXTENDED WASH CYCLE! For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 10... -
Page 11: Draining And Cleaning
From time to time clean washing and rinsing arms and nozzles, as shown from Fig.14 to Fig. 18. To avoid the risk of overheating, and cause damage to internal parts, machine should not be left on overnight Fig. 11 Fig. 12 Fig. 13 Fig. 10 Fig. 14 Fig. 15 Fig. 16 Fig. 17 For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 11... -
Page 12: Detergent Control
DETERGENT CONTROL Use ONLY Commercial Grade, High Temperature, Low Suds Liquid Detergent. Fagor doesn’t recommend any specific brand name of chemicals. Contact your local chemical distributor for questions concerning your chemical needs. All machines come equipped with an internal Detergent and Rinse dispenser. Take the tube located in the back or your machine marked “Detergent” and place inside detergent container. Take the tube with a blue stripe mark and place inside rinse container. Tubes are clear to provide you a visible means that chemicals are being dispensed. If desired you can control the amount of Chemical being dispensed by opening the bottom front panel of the machine. Locate the detergent dispenser (Fig. 9) and regulate according to the flow chart (Fig. 9a). For the Rinse, turn the button counterclockwise to get more rinse aide and clockwise for less. Verify all connections to the dispenser are hand tighten to prevent any leaks. Control and maintain the level of detergent and rinse aid of the tanks. Keep chemical tubing and filters submerged. DETERGENT PUMP DETERGENT ADJUSTMENT Gal./h. Oº 220º 1 0 2 0.06 3 0.20 4 0.40 ... - Page 13 Installation of External Chemical Pumps If you require the installation of an NON FAGOR Detergent and Rinse pump, a form MUST be fill out prior to installation by your installer. Failure to do so, will VOID YOUR WARRANTY!! This form can be located inside your dishwasher. If lost, please contact Fagor to get a copy. Dishwasher already incorporates a terminal block where you can connect an external chemical pump. Remove Right panel and locate terminal block (Fig. 25). Green and Violet are the connections for detergent. Green and White are the connections for rinse. Fig. Chemical Injectors: 1) Place External Detergent Injector at the back side of the machine above the stainless steel scrap filters. SOME MODELS INCORPORATE PREDRILLED HOLE AT THE BACK OVER WATER LEVEL. REMOVE PLUG FROM THE TANK AND FIT DETERGENT INJECTOR . ...
-
Page 14: Preparing The Ware
Fig. 10 Fig. 11 Fig.12 DELIMING In order to maintain dishwasher at optimum conditions, it is requested to remove lime and corrosion deposits on a frequent basis. A de‐liming solution should be available from your chemical supplier. Read and follow all instructions on the label of the de‐liming solution. Operations: Fill the machine. Add the correct amount of de‐liming solutions as recommended by the de‐liming solution manufacturer. The water capacity of the tank can be verified on the specification sheet of this manual Remove detergent and rinsing tubes from containers so no chemicals go to the machine Run the machine for the recommended period of time. As many cycles as needed. Turn off the machine and open the door. When clean, drain and re‐fill the machine and Run machine for 3‐4 cycles to remove de‐ liming solution Drain the machine. For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 14... -
Page 15: Troubleshooting
Verify circuit board fuse is If connected and still not working, replace Adhesive Trim. Rinsing temperature gauge Wait until sanitized rinsing temperature reached a min.of is lower than 180ºF. 180ºF. Check out your incoming water temperature. Recommended incoming water temperature is 140°F For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 15... - Page 16 TEMPERATURE OF 180°F closes when receiving voltage. If not, replace heater relay (Cc). Faulty Boiler element (Rc) Ohm out element check for continuity; if open, replace heater (Rc). For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 16...
- Page 17 Make sure that the rinse agent chemical lines are primed and free of kinks. Rinse agent not being Detergent tubes not Verify detergent tubes are secured inside container dispensed placed properly inside Adjust chemicals to proper levels container/improper adjustment For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 17...
- Page 18 Off Example of a 2 flashes ERROR ( Tank Water Fill Error) 1 Flash ( OPEN DOOR): This is indicated by a one flash and a pause. This continues as long as the door is open and the selected cycle is unfinished. 2 Flashes ( TANK FILL ERROR): This is indicated by a two flashes and a pause. This continues while the water in the tank does not reach the correct level in the specified time. 3 Flashes ( TANK DRAINAGE ERROR): This is indicated by a three flashes and a pause. This continues while the drainage pump does not drain the water in the tank to the correct level in the specified time. 4 Flashes ( BOILER HEATING ERROR): This is indicated by a four flashes and a pause. This continues while the water in the boiler does not reach the correct temperature in the specified time. 5 Flashes ( TANK HEATING ERROR): This is indicated by a five flashes and a pause. This continues while the water in the tank does not reach the correct temperature in the specified time. TEMPERATURE PROBE ERROR: The display may show different alarms for the temperature probes. The alarm is shown on the corresponding display ( boiler temperature display or tank temperature display). A4 : “Temperature probe open” alarm: “Temperature probe short-circuit” alarm: For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 18...
-
Page 19: Electrical Diagrams
For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 19... -
Page 20: Wiring Schematics
WIRING SCHEMATICS For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 20... -
Page 21: Limited Warranty
Warranty Coverage: If there is a defect in material or factory workmanship covered by this Warranty reported to Fagor during the period the applicable Warranty is in force and effect, Fagor will repair or replace, at Fagor’s option, that part of the Equipment that has become defective. Fagor will cover labor cost within one year from the Warranty Commencement date or 15 months from shipment date, whichever occurs first with the exception of the Glasswasher models, which will be 90 days labor and one year parts warranty. - Page 22 Fagor Commercial, Inc. 13105 NW 47 Ave. Miami, Fl. 33054 Tel: (305) 779 0170 Fax: (305) 779 0173 1‐866‐GO‐FAGOR www.fagorcommercial.com For Customer Service: Call 1‐866‐GO FAGOR – www.fagorcommercial.com | P. 22...
