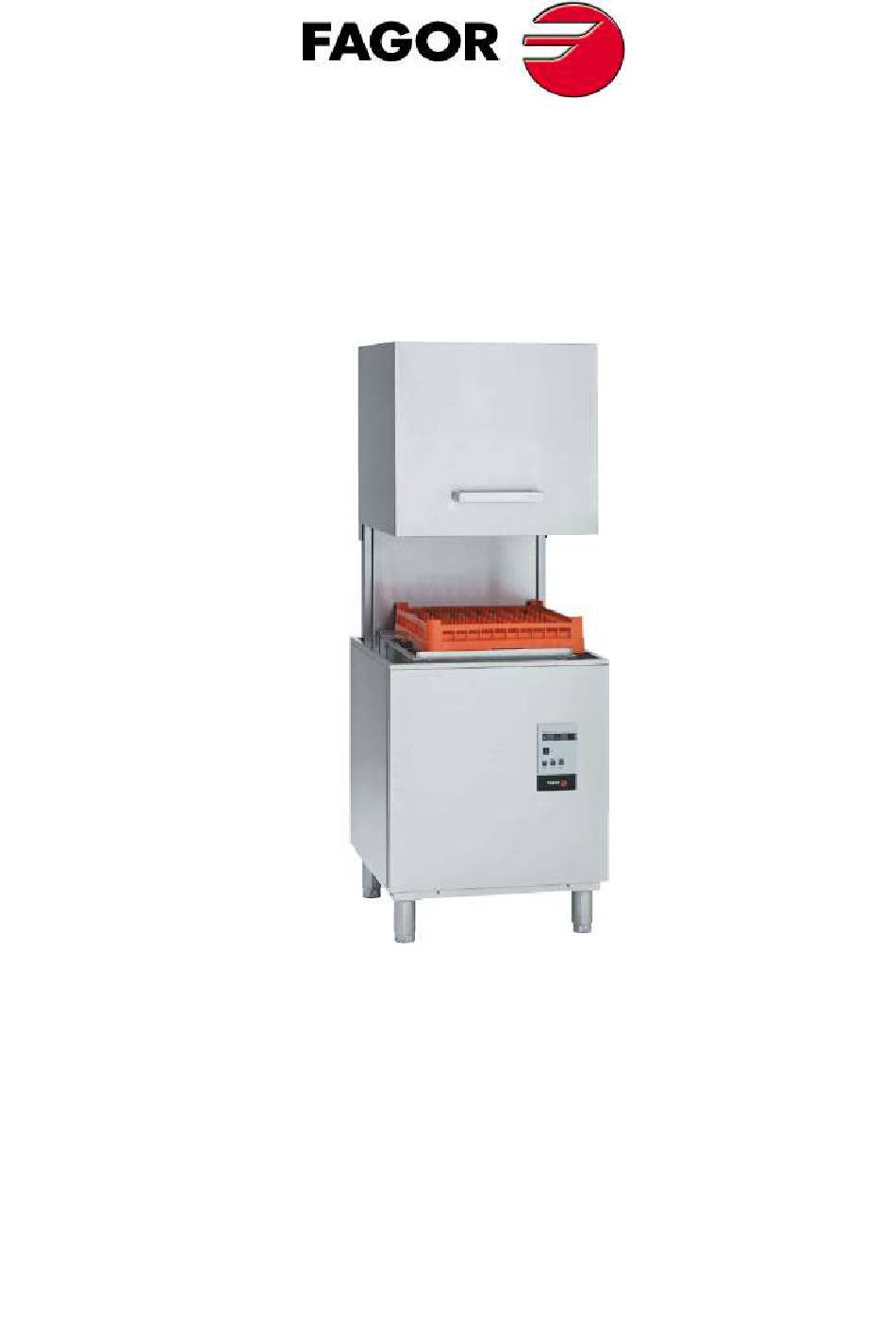

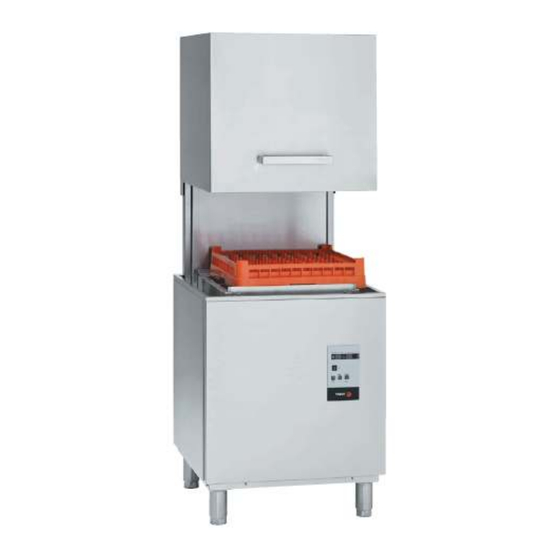

- Page 1 AD-90B / AD-120B Instruction Manual FAGOR PASS-THROUGH DISHWASHER WITH DRAIN PUMP Fagor Australasia Pty Ltd 7 Boola Place Dee Why NSW 2099 Phone: 02 9984 7533 Fax: 02 9984 7544 Email: info@fagor.com.au...
- Page 2 1. POSITIONING For the machine to work properly, you must ensure that it is level. Four threaded bolts (legs) are supplied with your machine. These should be fitted to the underside of the machine and adjusted to level the machine, as shown in Figure 1. Figure 1 2.
- Page 3 Figure 3 S = Stopcock / F = Filter / Fagor supplied hose and backflow prevention device/ E = Electrovalve Dynamic pressure during rinse is 2÷4 Kg/cm2. If the pressure is less than 2 kg/cm2 (28 PSI), an electrical pressure pump should be installed, as shown in Figure...
- Page 4 Figure 4 S = Stopcock / F = Filter / H = Hose / E = Electrovalve / B = Electropump When the water hardness level is above 10º F, a water softener should be installed. A stopcock (S) should be fitted below the machine’s water intake. See Fig. 3 & 4. Fix the drain hose as shown in Figure 5 and fit a siphon pipe to prevent bad smells.
- Page 5 2.9 Connect the strip as shown in Figure 6. Figure 6 MODEL 380-415V-3N~ am/ve=yellow-green a= blue m= brown g= grey n= black VOLTAGE MODEL S.cable=M Fuses=F MAINS CONNECTIONS AD – 90 4x2,5mm2 +T 25 A 380-415V- AD – 4x6mm2 + T 40 A 120 B Fit a general switch (I) independent of the appliance with a distance between contacts...
- Page 6 Phase psi) USING YOUR AD-90B / AD-120B DISHWASHER WITH DRAIN PUMP Put the blue hose (located at the back of the machine), into a bottle of rinse aid. Make sure that the filter on the ends of the pipe is fully submerged and the pipe is not kinked.
- Page 7 Figure 10 AD-90B / AD-120B Wait for water to heat up to required temperature. The thermometer (9) indicates the rinse temperature and the thermometer (10)indicates the wash temperature. The machine is ready when the thermometer (9) indicates 85-90° C and the thermometer (10) indicates 55-60°...
- Page 8 4.- MAINTENANCE Check the rinse liquid container on a daily basis to ensure levels are sufficient and the filters on the ends of the pipes are fully submerged. Check pipes leading from the containers for kinks. Clean the filter- trays in the bottom and waste collector every day (See F on Fig. 3 and Fig.
- Page 9 After sales service: Fagor Australasia Pty. Ltd., 7 Boola Place, Dee Why, NSW. Tel. 02 9984 7533 Email: info@fagor.com.au 6. INFORMATION FOR TECHNICIANS 6.1 CONFIGURATION OF THE DIPS...
- Page 10 6.2 ERROR DIAGNOSIS. Faults are diagnosed with impulse trains from the ON/OFF LED. The trains are formed by “x” impulses lasting 0.5 seconds. (ON) and a wait of 2 seconds, as shown in the following figure: 1. ERROR: OPEN DOOR This is indicated by a one-impulse train.
