Page 1: Instruction Manual
STUTPRXWAL STUTPTXWAL STUTPWALL Instruction Manual VGA Video Extender over CAT5 VGA Wall Plate Video Extender over CAT5 Receiver VGA Wall Plate Video Extender over CAT5 Transmitter... - Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Transmitter Unit (STUTPTXWAL) ..........2 Receiver Unit (STUTPRXWAL) ...........3 Hardware Installation ..............4 Wiring Information and Coding ........5 Distances and Resolutions ..........6 Adapter Output Polarity ..........6 Specifications ..............7 Technical Support ............ -
Page 4: Introduction
Introduction Packaging Contents • 1 x STUTPTXWAL (transmitter) or STUTPRXWAL (receiver) * both units included in STUTPWALL kit • 1 x Power Adapter * 2 included in STUTPWALL kit • 1 x User Manual • 1 x Terminal Block adapter for power adapter... -
Page 5: Installation

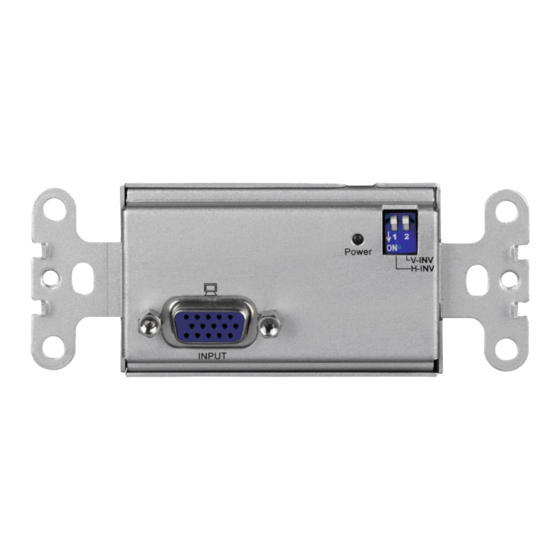

Installation Transmitter Unit (STUTPTXWAL) Front View * picture may vary from actual product • DE-15 Female Connector • Power LED • Control H/V signal inverting switch • The default setting of H-INV is “OFF”. If H-INV is set to “ON”, the horizontal signal output is adjusted. -
Page 6: Receiver Unit (Stutprxwal)
Rear View * picture may vary from actual product • Power Connector • RJ-45Female Connector Receiver Unit (STUTPRXWAL) Front View * picture may vary from actual product • DE-15 Female Connetor • EQ – Equalization length adjust (Adjust sharpness) •... -
Page 7: Hardware Installation
DE-15 male to male cable to PC video card. Connect STUTPTXWAL Transmitter and STUTPRXWAL Receiver unit together with CAT5 cable. Connect STUTPRXWAL Receiver unit DE-15 female connector with DE-15 male to male cable to monitor. Connect the power adapter on each unit. -
Page 8: Wiring Information And Coding
Wiring Information and Coding Conductor RJ45 Pin Conductor Colour Code White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown... -
Page 9: Distances And Resolutions
Distances and Resolutions 1920x1200 100m 1600x1200 CAT5/CAT5e 180m 1280x1024 200m 1024x768 300m 800x600 1920x1440 CAT6 1280x1024 100m 800x600 Adapter Output Polarity Output Level Conductor Colour +12V Black-White RTN (-) Black... -
Page 10: Specifications
Specifications Video Connector 15-pin D-Sub (DE-15) RJ45 Rear Connectors Terminal Block Maximum Resolution 1920x1200 at 60Hz Maximum Distance 300 meters at 800x600 Power Adapter Output 12VDC, 600mA Material Metal Color White 165 g (transmitter) Weight 170 g (receiver) Dimensions 78.2 mm x 41.2 mm x 52.8 mm... -
Page 11: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
