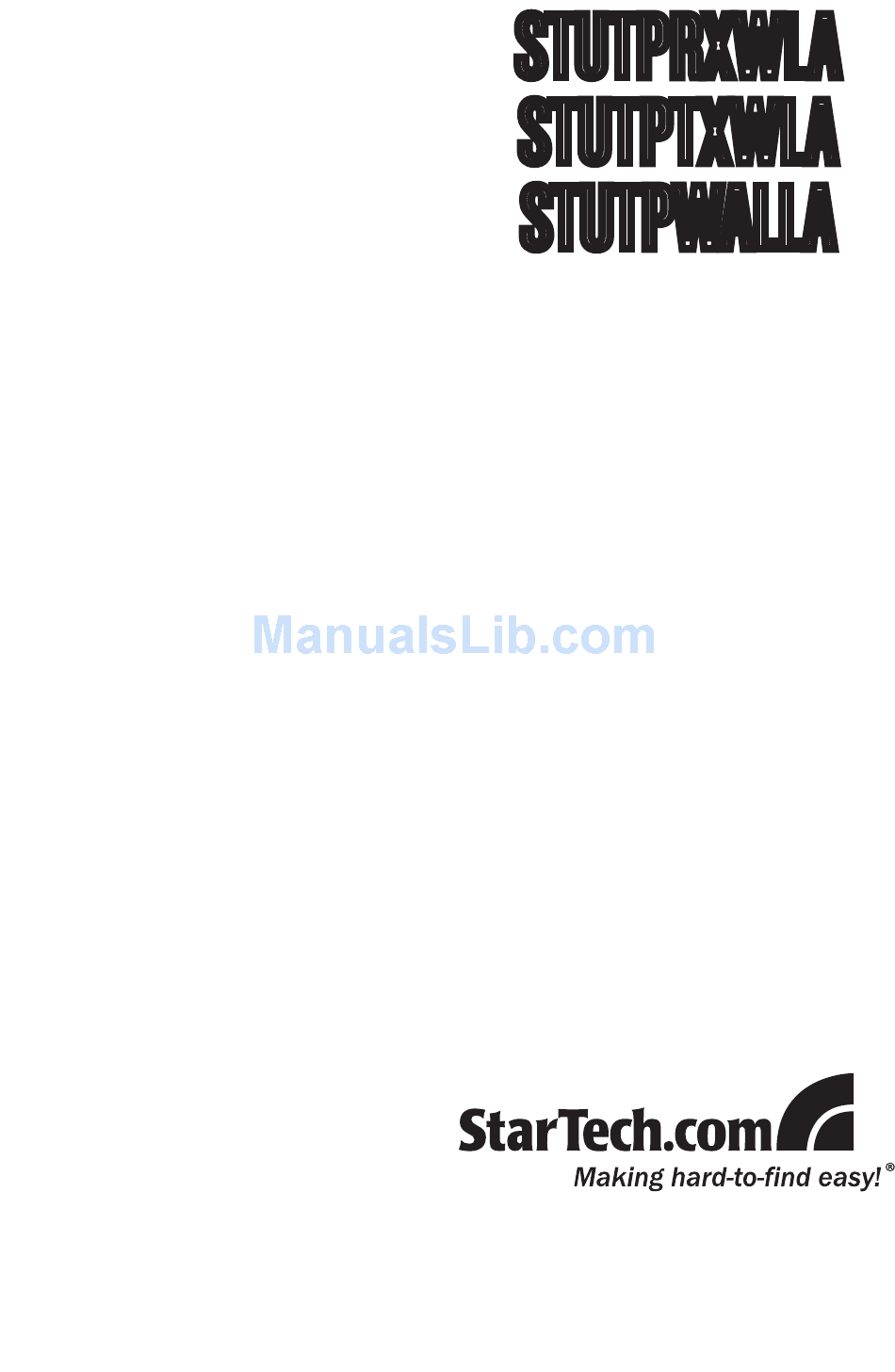

Page 1: Instruction Manual
STUTPRXWLA STUTPTXWLA STUTPWALLA Instruction Manual VGA Video Extender over CAT5 VGA Wall Plate Video and Audio Extender over CAT5 Receiver VGA Wall Plate Video and Audio Extender over CAT5 Transmitter... - Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Transmitter Unit (STUTPTXWLA) ..........2 Receiver Unit (STUTPRXWLA) ...........3 Hardware Installation ..............4 Wiring Information and Coding ........5 Distances and Resolutions ..........6 Adapter Output Polarity ..........6 Specifications ..............7 Technical Support ............ -
Page 4: Introduction
Introduction Packaging Contents • 1 x STUTPTXWLA (transmitter) or STUTPRXWLA (receiver) * both units included in STUTPWALLA kit • 1 x Power Adapter * 2 included in STUTPWALLA kit • 1 x User Manual • 1 x Terminal Block adapter for power adapter... -
Page 5: Installation
Installation Transmitter Unit (STUTPTXWLA) Front View * picture may vary from actual product • DE-15 VGA Female Connector • 3.5mm Mini-Jack Audio Input • 3.5mm Mini-Jack Microphone Input • GAIN – Adjust brightness • Power LED • Control H/V signal inverting switch •... -
Page 6: Receiver Unit (Stutprxwla)

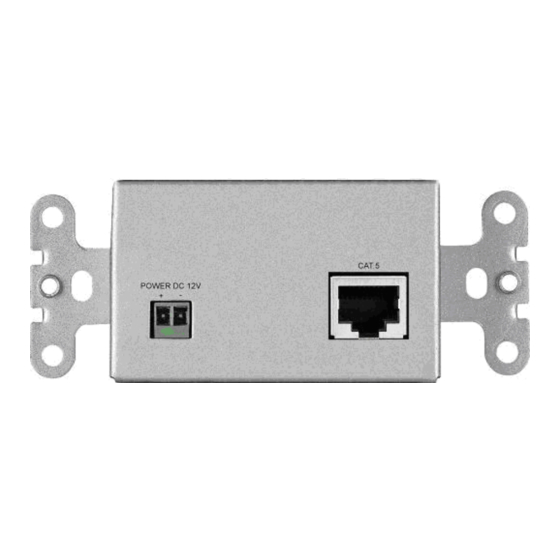

Rear View * picture may vary from actual product • Power Terminal Block Connector • RJ-45 Female Connector Receiver Unit (STUTPRXWLA) Front View * picture may vary from actual product • DE-15 VGA Female Connetor • 3.5mm Mini-Jack Audio Output •... -
Page 7: Hardware Installation
DE-15 VGA male to male cable to PC video card. Connect STUTPTXWLA Transmitter and STUTPRXWLA Receiver units together with CAT5 UTP cable. Connect STUTPRXWLA Receiver unit DE-15 VGA female connector with a DE-15 VGA male to male cable to the monitor/display. Connect the power adapter on each unit. -
Page 8: Wiring Information And Coding
Wiring Information and Coding Conductor RJ45 Pin Conductor Colour Code White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown... -
Page 9: Distances And Resolutions
Distances and Resolutions 1920x1200 100m 1600x1200 CAT5/CAT5e 180m 1280x1024 200m 1024x768 300m 800x600 1920x1440 CAT6 1280x1024 100m 800x600 Adapter Output Polarity Output Level Conductor Colour +12V Black-White RTN (-) Black... -
Page 10: Specifications
Specifications Video Connector 15-pin VGA (DE-15) Audio Connector 3.5mm stereo Mini-Jack RJ45 Rear Connectors Terminal Block Maximum Resolution 1920x1200@60Hz (at 50 m) Maximum Distance 300 meters (at 800x600) Power Adapter Output 12VDC, 600mA Material Metal Color White 136 g (transmitter) Weight 136 g (receiver) Dimensions... -
Page 11: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
