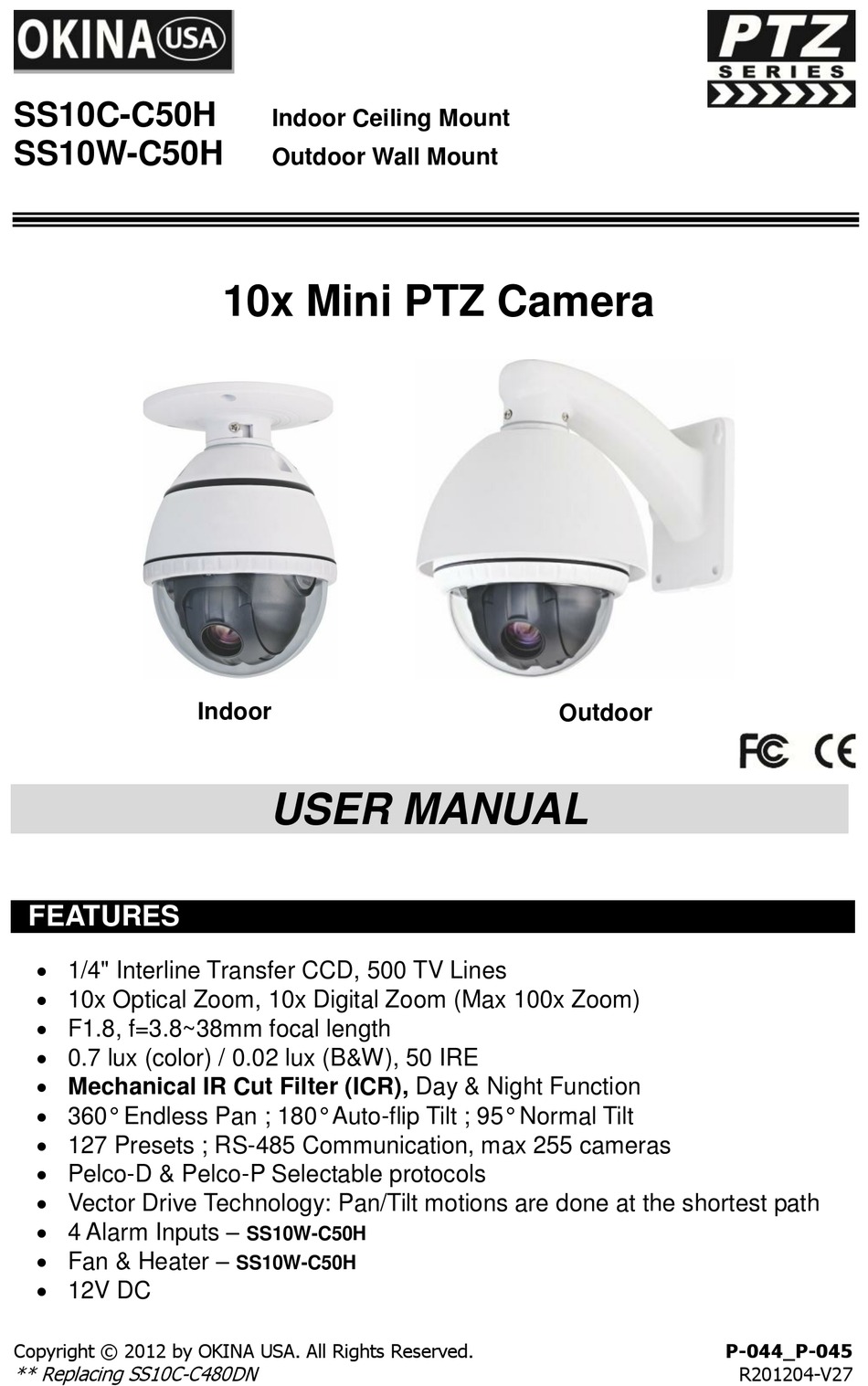

SS10C-C50H
SS10W-C50H
FEATURES
1/4" Interline Transfer CCD, 500 TV Lines
10x Optical Zoom, 10x Digital Zoom (Max 100x Zoom)
F1.8, f=3.8~38mm focal length
0.7 lux (color) / 0.02 lux (B&W), 50 IRE
Mechanical IR Cut Filter (ICR), Day & Night Function
360° Endless Pan ; 180° Auto-flip Tilt ; 95° Normal Tilt
127 Presets ; RS-485 Communication, max 255 cameras
Pelco-D & Pelco-P Selectable protocols
Vector Drive Technology: Pan/Tilt motions are done at the shortest path
4 Alarm Inputs –
Fan & Heater –
12V DC
Copyright © 2012 by OKINA USA. All Rights Reserved.
** Replacing SS10C-C480DN
Indoor Ceiling Mount
Outdoor Wall Mount
10x Mini PTZ Camera
Indoor
USER MANUAL
SS10W-C50H
SS10W-C50H
Outdoor
P-044_P-045
R201204-V27
Advertisement
Table of Contents
Related Manuals for Okina SS10C-C50H
Summary of Contents for Okina SS10C-C50H
-
Page 1: Featuers
Vector Drive Technology: Pan/Tilt motions are done at the shortest path 4 Alarm Inputs – SS10W-C50H Fan & Heater – SS10W-C50H 12V DC Copyright © 2012 by OKINA USA. All Rights Reserved. P-044_P-045 ** Replacing SS10C-C480DN R201204-V27... -
Page 2: Cautions
Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. -
Page 3: Limited Warranty
When the video product exhibits a distinct change in performance. LIMITED WARRANTY OKINA USA products are covered under warranty for one year from the date of purchase. The warranty will automatically be voided if any of the following occurs: 1. -
Page 4: Table Of Contents
INDEX FEATUERS ……………………………………………………………………………………. 1 CAUTIONS ………………………………………………………………………………….. 2-3 LIMITED WARRANTY ……………………………………………………………………….. 3 PACKAGE CONTENTS ……………………………………………………………………… 5 DIMENSIONS ……………………………………………………………………..………... 5-6 DIP SWITCH SETTING ……………………………………………………………………. 7-8 APPLICATION DIAGRAM ………………………………………………………..…………. 8 INSTALLATION …………………………………………………………………………… 9-10 OPERATION ……………………………………………………………………………….10-14 PRESET AND PATTERN FUNCTION PRE-CHECK …………………….……. 10 STARTING OSD MENU …………………………………………………….……. 11 RESERVED PRESET …………………………………………………………….. -
Page 5: Package Contents
One (1) Thread Connector One (1) User Manual *Ceiling bracket is standard for mini PTZ Dome. * Arm Type Wall mount bracket is standard for Outdoor PTZ Dome. Options for SS10C-C50H: Pendant Pole Bracket MB-CP10C L Type Wall Mount Bracket MB-CW1C... -
Page 6: Dimensions
DIMENSIONS Indoor Ceiling Mount Ø 5.04” / 128mm Ø 4.2” / 107.7mm Ø 5” / 127mm Outdoor Arm Type Wall Mount With Pendant Pole Mount With L Type Wall Mount... -
Page 7: Dip Switch Setting
DIP SWITCH SETTING Before you install the camera, you should set the DIP switches to configure the camera ID, communication protocol. Camera ID Setup ID number of camera is set using binary number. The example is shown below. ID Value Ex) ID=5 Ex) ID=10 ... -
Page 8: Application Diagram
Switch State Protocol (Pin 1) (Pin 2) PELCO-D, 2400 bps PELCO-D, 9600 bps PELCO-P, 4800 bps PELCO-P, 9600 bps If you want to control using DVR or P/T controller, the protocol must be identical to the camera. If you change the camera protocol by changing the DIP S/W, the change will be effective after you reboot the camera. -
Page 9: Installation
INSTALLATION Power Connection Please, check the voltage and current capacity of rated power carefully. Rated power is indicated in the back of main unit. Rated Power Input Voltage Range Current Consumption 12V DC 11V~18V DC 0.8 A RS-485 Communication For PTZ control, connect the keyboard and DVR. To control multiple cameras at the same time, RS-485 communication lines of them is connected in parallel as shown below. -
Page 10: Operation
Before connecting sensors, check driving voltage and output signal type of the sensor. Since output signal types of the sensors are divided into open collector and voltage output type in general, the cabling must be done properly after considering these typed. Signal Description IN COM+... -
Page 11: Starting Osd Menu
STARTING OSD MENU Function Using the OSD menu, Preset, Pattern, Swing, Group and Alarm Input function can be configured for each application. Enter Menu Press <Call> + Preset Number [95] + <Enter> RESERVED PRESET Description Some Preset numbers are reserved to special functions. Function <Call>... -
Page 12: Swing
SWING Function By using Swing function, you can make camera to move between 2 Preset positions repeatedly. When swing function runs, camera moves from the preset assigned as the 1 point to the preset assigned as the point in CW (Clockwise) direction. Then camera moves from the preset assigned as the 2 point to the preset assigned as the 1st point in CCW (Counterclockwise) direction. -
Page 13: Group
Movement by Joystick and preset movement can be memorized in a pattern. The rest memory size is displayed in progress bar. To save the recording, press NEAR key and to cancel, press FAR key. Method 2) OSD Using OSD Menu: See the section “How to use OSD Menu". -
Page 14: Other Functions
OTHER FUNCTIONS Power Up Action This function enables to resume the last action executed before power down. Most of actions such as Preset, Pattern, Swing and Group are available for this function but jog actions are not available to resume. Auto Flip In case that tilt angle arrives at the top of tilt orbit (90º), zoom module camera keep moving to opposite tilt direction (180º) to keep tracing... -
Page 15: How To Use Osd Menu
HOW TO USE OSD MENU OSD DISPLAY OF MAIN SCREEN P/T/Z Info Current Pan/Tilt angle in degree, zoom magnification and a compass direction. Camera ID Current Camera ID (address) Action Title Follovangs are possible Action-Titles and their meaning. "SET PRESET ×××" When Preset×××... -
Page 16: General Rules Of Key Operation For Menu
GENERAL RULES OF KEY OPERATION FOR MENU The menu items surrounded with ( ) always has its sub menu. For all menu level, to go into sub menu, press NEAR key. To go to up-one-level menu, press FAR key. ... -
Page 17: Privacy Zone Mask Setup
Camera ID [ON/OFF] PTZ Info [ON/OFF/AUTO] Action Title [ON/OFF/Auto] Preset Label [ON/OFF/AUTO] Alarm Input [ON/OFF/AUTO] Compass Direction Setup SET NORTH DIRECTION MOVE TO TARGET POSITION [NEAR:SAVE / FAR: CANCEL] Set North to assign compass direction as criteria. Move camera and press NEAR button to save. - Page 18 Display [ON/OFE] Sets if camera makes mask shows or not on images Clear Mask [CANCEL/OK] Deletes data in the selected Mask No. Privacy Zone Area Setup <Display Setup>→<Privacy Zone>→<Edit Mask> Move camera to area to mask. Then the menu to adjust mask size will be displayed. EDIT MASK 1 MOVE TO TARGET POSITION [NEAR:SELECT / FAR: CANCEL]...
-
Page 19: Camera Setup
CAMERA SETUP <Dome Camera Setup>→<Camera Setup> Setup the general functions of zoom camera module. ZOOM CAMERA SETUP FOCUS MODE SEMIAUTO DIGITAL ZOOM LINE LOCK <WHITE BALANCE SETUP> <AUTO EXPOSURE SETUP> BACK EXIT Focus Mode [AUTO/MANUAL/SEMIAUTO] Sets camera focus mode. SEMIAUTO Mode This mode exchanges focus mode automatically between Manual Focus mode and Auto Focus mode Manual Focus mode activates in... -
Page 20: Camera Setup
Auto Exposure Setup <Dome Camera Setup>→<Camera Setup>→<Auto Exposure Setup> AE SETUP - GLOBAL BACKLIGHT DAY/NIGHT AUTO1 BRIGHTNESS IRIS AUTO SHUTTER NORMAL SSNR MIDDLE SENS-UP <AUTO> BACK EXIT Backlight [ON/OFF] Sets Backlight Compensation Day/Night [AUTO1/AUTO2 DAY/NIGHT] AUTO1 exchanges Day/Night mode faster than AUTO2. -
Page 21: Motion Setup
MOTION SETUP <Dome Camera Setup>→<Motion Setup> Setup the general functions of Pan/Tilt motions. MOTION SETUP MOTION LOCK PWR UP ACTION AUTO FLIP JOG MAX SPEED 120/SEC JOG DIRECTION INVERSE FRZ IN PRESET <PARKING ACTION SETUP> <ALARM INPUT SETUP> BACK EXIT Motion Lock [ON/OFF]... - Page 22 Parking Action Setup <Dome Camera Setup>→<Motion Setup>→<Parking Action Setup> If Park Enable is set to ON, camera runs assigned function automatically if there is no PTZ command during assigned ''Wait Time''. PARKING ACTION SETUP PARK ENABLE WATI TIME 00:10:00 PARK ACTION HOME BACK...
-
Page 23: Preset Setup
Alarm x Type [Normal OPEN/Normal CLOSE] Sets sensor input type. Alarm x Action [Not USED/PRESET1~128] Assign counteraction preset position to each alarm input. PRESET SETUP <Dome Camera Setup>→<Preset Setup> PRESET SETUP PRESET NO CLR PRESET CANCEL <EDIT SCENE> <EDIT LABEL> LABEL 123 CAM ADJUST GLOBAL... -
Page 24: Preset Setup
Edit Preset Scene <Dome Camera Setup>→<Preset Setup>→<Edit Scene> EDIT SCENE – PRESET1 MOVE TO TARGET POSITION [NEAR: SAVE / FAR: CANCEL] Using Joystick, move camera angle to desired position. By pressing NEAR key, save current PTZ data. Press FAR key to cancel. Edit Preset Label <Dome Camera Setup>→<Preset Setup>→<Edit Label>... -
Page 25: Swing Setup
If you complete the Label editing, move cursor to "OK" and press NEAR key to save completed label. To abort current change, move cursor to "Cancel" and press NEAR key. SWING SETUP <Dome Camera Setup>→<Swing Setup> SWING SETUP SWING NO 1ST POS NOT USED 2ND POS... -
Page 26: Pattern Setup
[1 /sec~180 /sec] Swing Speed Sets Swing speed from 1 /sec to 180 /sec. Clear Swing [CANCEL/OK] Deletes current Swing data. PATTERN SETUP <Dome Camera Setup>→<Pattern Setup> PATTERN SETUP PATTERN NO UNDEFINED CLR PATTERN CANCEL <EDIT PATTER> BACK EXIT Pattern Number [1~4] Selects Pattern number to edit. -
Page 27: Group Setup
Move camera with joystick or run preset function to memorize the path (mostly curve path) in a selected pattern. The total memory size and the rest memory size is displayed m the form of bar. Maximum 1200 communication commands can be stored in a pattern. EDIT PATTERN1 MOVE TO START POSITION [NEAR: SAVE / FAR: DELETE]... - Page 28 Edit Group <Dome Camera Setup>→<Group Setup>→<Edit Group> Press Near key in "NO" list to start Group setup. EDIT GROUP 1 NO. ACTION ### DWELL OPT NONE NONE NONE NONE NONE SAVE CANCEL [NEAR:EDIT] Note that MAX.20 Functions are allowed in a Group. Move cursor up/down and press Near key to set up.
- Page 29 Action ### [NONE / PRESET / SWING / PATTERN] DWELL [0 seconds~4 minutes] Option It should be preset speed when preset is set in Action and the number of repeat when Pattern or Swing is selected in Action. Setup items such as Action, ###, Dwell and OPT. EDIT GROUP 1 NO.
-
Page 30: System Initialize
SYSTEM INITIALZE SYSTEM INITIALIZE CLEAR ALL DATA CLR DISPLAY SET CLR CAMERA SET CLR MOTION SET CLR EDIT DATA REBOOT CAMERA REBOOT SYSTEM SAVE CANCEL Clear All Data Deletes all configuration data such as display camera, motion set, and so on. - Page 31 Camera Configuration Focus Mode Focus Mode Digital Zoom Digital Zoom Line Lock Line Lock White Balance White Balance Backlight Backlight Day & Night Day & Night Brightness Brightness Iris Iris Shutter Shutter SSNR SSNR SENS-UP SENS-UP Motion Configuration Motion Lock Power Up Action Auto Flip Jog Max Speed...
-
Page 32: Specification
SPECIFICATION Model SS10C-C50H SS10W-C50H Mount Type Ceiling Mount Arm Type Wall Mount Image Sensor 1/4" Interline Transfer CCD NTSC: 811(H)×508(V) 410K Max. Pixels PAL: 795(H)×596(V) 470K NTSC: 768(H)×494(V) 380K Effective Pixels PAL: 752(H)×582(V) 440K Resolution 500 TV Lines (Color), 570 TV Lines (B/W)
