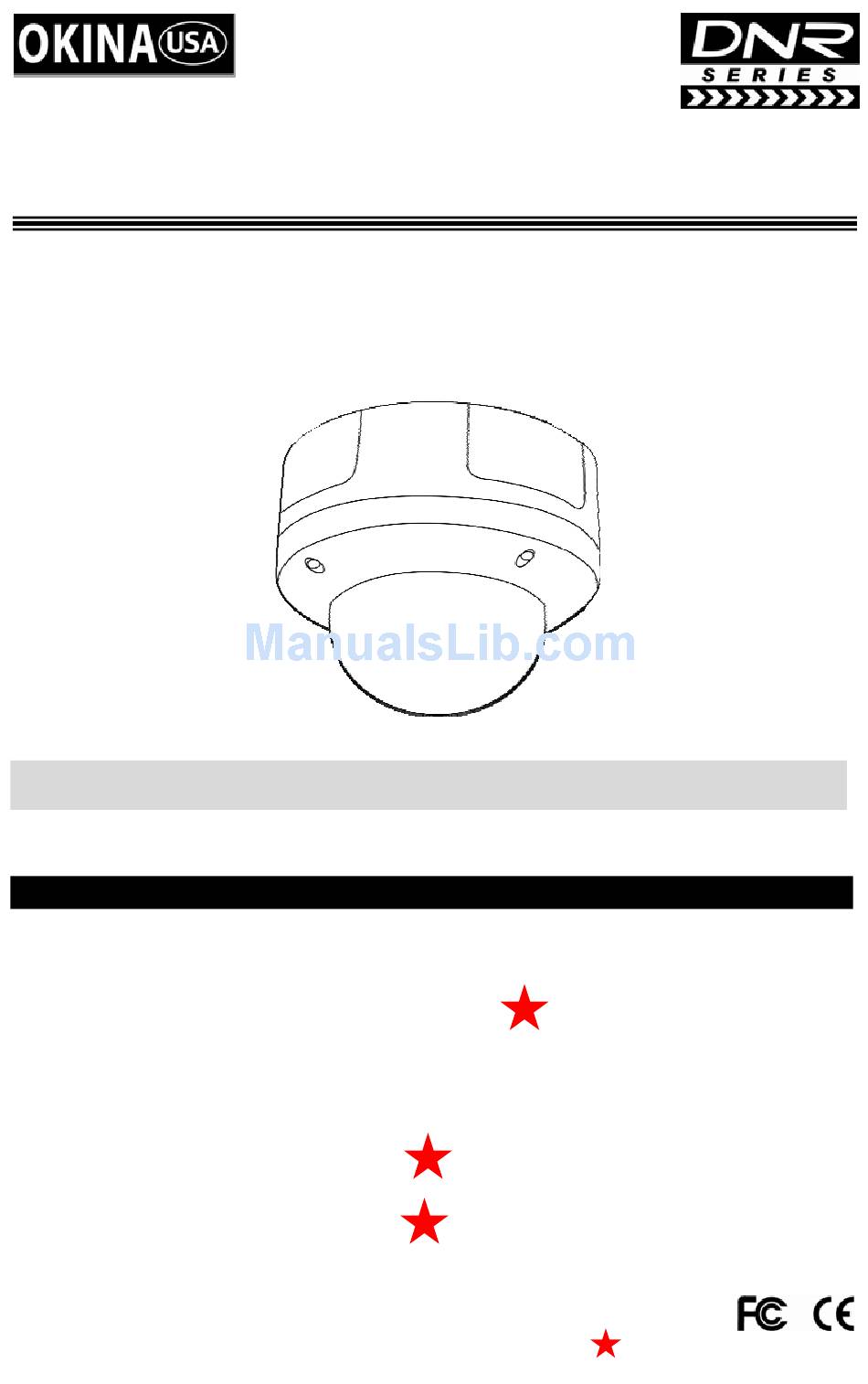

SDNX-863AI-VD
SDNX-863AI-VDP
DNR Super Low Lux Day & Night OSD
Vandal Proof Dome Camera
FEATURES
• 1/3" Sony Super HAD CCD II; 630 TV Lines
• 2.8mm~12.0mm Auto Iris Lens
• RCA Video Output for Service Monitor
• Digital Noise Reduction (DNR)
DNR dramatically reduces both random and fixed noise. It also reduces DVR disk
space usage by up to 70%.
• 0.00039 (Sens-up, 256X) / 0.1 Lux (50 IRE @ F1.4)
• Mechanical IR Cut Filter (ICR)
• On-Screen Display (OSD)
• RS485 Output for OSD Control
• Dual Power 12V DC / 24V AC
• IP66 Rating
Copyright © 2012. All Rights Reserved.
USER MANUAL
2
3
D
N
igital
1
New additional features
** Replacing SDNX-F63AI-VD
R
oise
eduction
x3
Advertisement
Table of Contents
Related Manuals for Okina SDNX-863AI-VD
Summary of Contents for Okina SDNX-863AI-VD
-
Page 1: User Manual
SDNX-863AI-VD SDNX-863AI-VDP igital oise eduction DNR Super Low Lux Day & Night OSD Vandal Proof Dome Camera USER MANUAL FEATURES • 1/3” Sony Super HAD CCD II; 630 TV Lines • 2.8mm~12.0mm Auto Iris Lens • RCA Video Output for Service Monitor •... - Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Limited Warranty
When the video product exhibits a distinct change in performance. LIMITED WARRANTY OKINA USA products are covered under warranty for one (1) year from the date of purchase. The warranty will automatically be voided if any of the following occurs: 1. -
Page 4: Package Contents
PACKAGE CONTENTS One (1) DNR Vandal Proof Dome Camera with power/video cable One (1) Allen Wrench Four (4) Mounting Screws Four (4) Wall Anchors Four (4) Screw Washers One (1) Mounting Sticker Template One (1) User Manual * For any returns, please include all components listed above with original packaging in Resalable Condition. -
Page 5: Parts And Functions
PARTS AND FUNCTIONS PTZ-KB250 PTZ-KB050X Cover Lens On-Screen Display (OSD) Control RCA Video Output for Service Monitor Base , +/- RS485 (+ Yellow / - Orange) – See page 10 for PTZ controller key combination to call up OSD menu and page 11 for OSD setting Power In, 12V DC~24V AC BNC Video Out... -
Page 6: Operation
OPERATION OSD Button (Menu): LENS menu: Select DC LENS. LENS BRIGHTNESS: 0 ~100 RETURN EXPOSURE menu: User can adjust electronic shutter speed, brightness (only for manual iris lens), auto gain control, sensitivity-up level, back light compensation (BLC) & Highlight Suppression (HSBLC) adjust and Digital WDR. - Page 7 EXPOSURE SHUTTER 1/60,FLK,1/250.1/500.1/2000.1/5000.1/2000. 1/5000.1/10000.1/100000. X2 ~X256 BRIGHTNESS 1 - 100 OFF, LOW, MIDDLE, HIGH SENSE-UP OFF, AUTO, X2 ~ X256 HSBLC LEVEL: 0 ~ 8 DEFAULT LEFT/ RIGHT: 0 ~ 7 WIDTH: 0 ~ 8 TOP/BOTTOM: 0 ~7 HEIGHT: 0 ~ 8 RETURN GAIN: LOW, MIDDLE, DEFAULT...
- Page 8 WHITE BAL menu: User can adjust white balance effect for Auto Tracking White balance (ATW), Auto White Balance (AWB), and indoor or outdoor environment. WHITE BAL AWC SET MANUAL BLUE 0~100 RED 0~100 RETURN INDOOR OUTDOOR DAY NIGHT menu: User can adjust camera auto change threshold with day and night level to change Color or Black/White mode and force assign Color or Black/White type.
- Page 9 DAY NIGHT AUTO DELAY 0 ~ 63 S – LEVEL: 0 ~ 100 E – LEVEL: 0 ~ 100 RETURN BURST: ON/OFF RETURN COLOR 3DNR menu: User can adjust 3-Digital Noise Reduction level to improve night environment effect. 3DNR LEVEL: 0 ~ 100 RETURN SPECIAL menu: User can setup Camera title, Digital effect (Freeze, Mirror, V-FLIP,...
- Page 10 RS485 PTZ controller and camera available. Note that there are a lot of different RS485 PTZ controllers in the market, so our tech support staff is limited to only a few brands. The best option is to use OKINA USA’s RS485 PTZ controllers. RS485 PTZ Controller Key Combination to Enter OSD Menu...
- Page 11 SPECIAL CAM TITLE ON/OFF D – EFFECT FREEZE On/Off MIRROR,V-FLIP,ROTATE D – ZOOM On/Off GAMMA 0.05~1.00 NEG. IMAGE On/Off RS485 CAM ID 1 ~ 255 ID DISPLAY: ON/OFF BAUD RATE 2400 ~ 75600 MOTION AREA SELECT: AERA: 1 ~ 4 AREA DISPLAY: ON/OFF LEFT / RIGHT: 0 ~ 100 WIDTH: 0 ~ 100...
- Page 12 ADJUST menu: User can adjust camera sharpness and color parameter. ADJUST SHARPNESS: 0 ~ 31 BLUE: 0 ~ 100 RED: 0 ~ 100 RETURN RESET menu: User can reset camera setting back to factory default. RESET FACTORY RESET RETURN EXIT menu: Exit OSD menu.
-
Page 13: Specification
SPECIFICATION Model SDNX-863AI-VD SDNX-863AI-VDP System NTSC Image Sensor 1/3” Sony Super HAD CCD II NVP2170 DN High End ASIC Solution Total Pixel 811(H) x 508(V) 795(H) x 596(V) Synchronizing Internal / Line Lock System Resolution 630 TV Lines Scanning System... - Page 14 RELATED PRODUCT DNR Super Low Lux Day & Night OSD Box Camera SDNR-8630 Optional External IR SDNR-8IR • 1/3” Sony Super HAD CCD II • 630 TV Lines • Digital Noise Reduction (DNR) - Dramatically reduces both random and fixed noise.
- Page 16 www.okinausa.com MADE IN TAIWAN Copyright © 2012. All Rights Reserved. D-246 www.okinausa.com R201203-V07...
