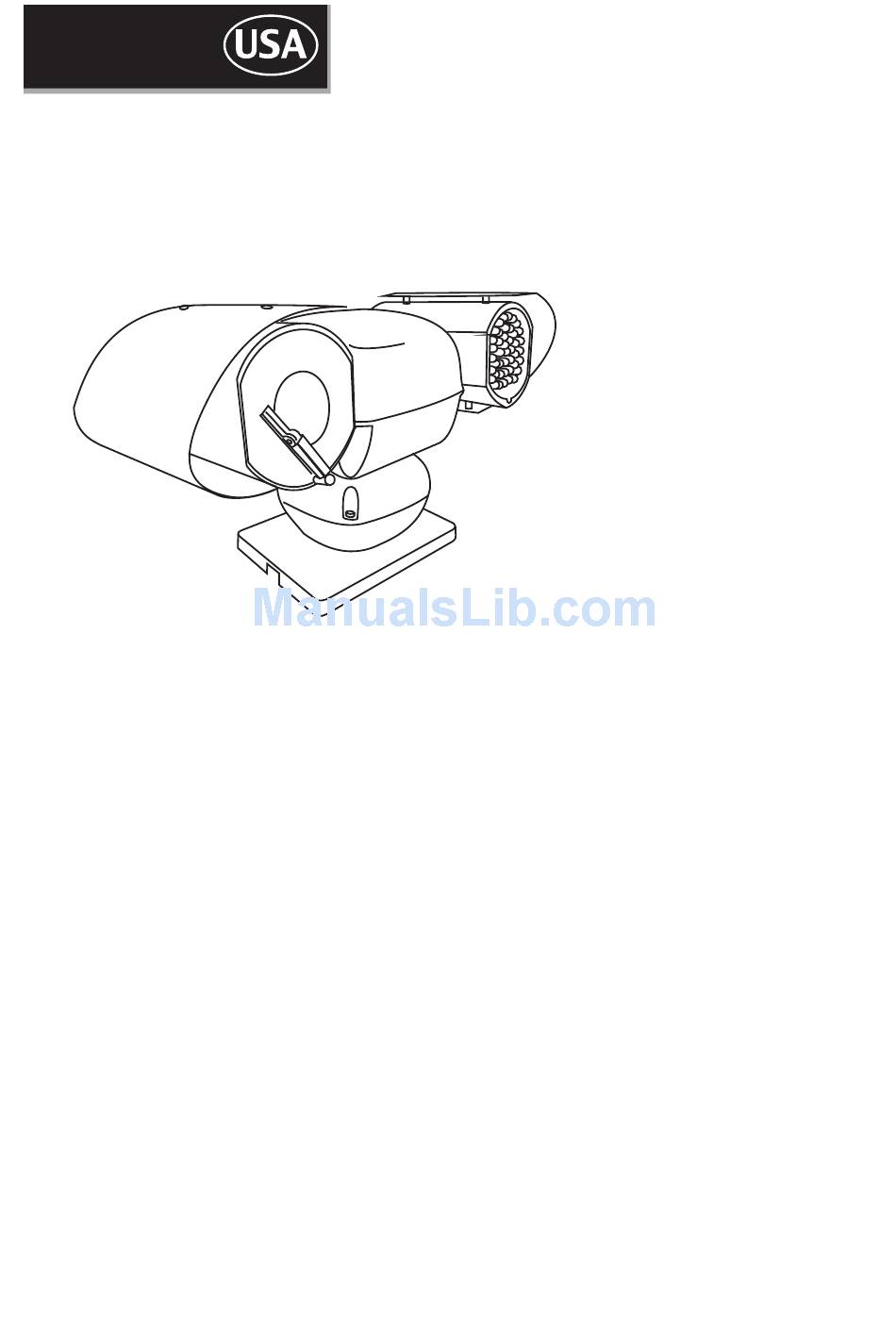

- Page 1 OKINA SEIMW36T-V53DN 36x Wide Dynamic ICR IR PTZ Camera OPERATION MANUAL...
-
Page 2: Fcc Compliance Statement
WARNING English TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. -
Page 3: Table Of Contents
CONTENT English Installation Unpacking ....................1 I/O Interface ....................1 Basic Setup ....................1 Telemetric ....................1 ID / Protocol ....................1 RS-485 Termination ..................1 Mounting ..................... 1 Application Example ..................2 RS-485 Transmission ...................2 Video Transmission .................. -
Page 4: Installation Unpacking
English Unpacking G50IR-MKII HIGH-SPEED PTZ CAMERA SERIES Keep the original box for OPERATION MANUAL Ver. 1.0 possible transport in the future. ENGLISH GERMAN SEIMW36T-V53DN Manual I/O Interface Connectors RJ-11 ALARM RS-485 POWER VIDEO Red:AC24V Inner Pin: Video + Green: RS-485 + Black:AC24V Outer Conn.:Video -... -
Page 5: Application Example
INSTALLATION English Application Example Multiple PTZ Simple PTZ Video output Video output RS-485 Line Keyboard Power Monitor Power Power Power Controller Monitor Keyboard RS-485 Daisy-Chain or Star-Form Controller connection, Termination on the ends. RS485 Transmission The distance of RS485 transmission between 2 nodes depends on the baud- Baud Rate Max. -
Page 6: Operation
OPERATION English Powering the PTZ After connected to power source, the PTZ will perform the self-test with pan, tilt and zoom, and displays the initial screen with following information: S/N: Serial number of the PTZ FIRMWARE: Current firmware version PROTOCOL: Protocol version DOME ADDRESS: the PTZ ID COMM: Baud-rate and serial settings The initial screen will disappear once the PTZ camera receives a user command. -
Page 7: Osd
English Enter the OSD The OSD menu can be activated by recall the preset position number 95 Press [SHOT] + [9] +[5] + [ENTER] or Press 2 x [SHOT] + [9] + [ENTER] withing 3 seconds. Navigation from keyboard: To navigate through the OSD menu items, following keys are defined for OSD operation. Make sure your controller device provide the keys: [IRIS OPEN] Enters the sub-menu or confirm... -
Page 8: Display Setup
OSD SETUP English System Setting Display Setup Preset [DOME LABEL] : show label name DISPLAY SETUP label --------------------------------------- [PRESET LABEL]: show preset label or scan label DOME LABEL [ZOOM LABEL]: show zoom ratio PRESET LABEL [ZONE LABEL]: show zone Label ZOOM LABEL ZONE LABEL [DIRECTION LABEL]:... -
Page 9: Camera Setting Ir Cut Filter
English Camera Setting Zoom Speed: Define the Zoom speed. Selectable: LOW/HIGH CAMERA SETTING --------------------------------------- HIGH ZOOM SPEED Digital Zoom: Activate digital zoom, depend on Modul DIGITAL ZOOM BLC MODE SLOW SHUTTER BLC MODE: Back-Light Compensation mode. Use this option when the observed object has a strong LINE SYNC WDR MODE back-light such as the sun light or other light source. -
Page 10: Pattern
English Function Setting Pattern The Pattern-Tour is a custom-defined tour by recording user’s control action up to 180 sec per tour. This dome can support up to 4 pattern tours. PATTERNS PATTERN NUMBER PROGRAM PATTERN PATTERN NUMBER: Selected pattern tour RUN PATTERN PROGRAM PATTERN: Record the tour. -
Page 11: Alarms
English Alarms RESUME: Continue the function on the camera , if it was setting before the alarms. ALARMS SEQUENCE: RESUME RESET DELAY: How long the camera stay in Alarm position. SEQUENCE ALARM CONTACT: Setting between N/C (normal Close) or N/O (normal Open). RESET DELAY ALARM CONTACT ENABLE WINDOW:... -
Page 12: Appendix
APPENDIX English OSD MAP M A I N M E N U → SYSTEM SETTING CAMERA SETTING → FUNCTION SETTING → WINDOW BLANKING → ALARMS→ EXIT FUNCTION SETTING W I N D O W B L A N K I N G SYSTEM SETTING CAMERA SETTING ALARMS... -
Page 13: Id Settings
APPENDIX English Switchnumber (Sw1) Switchnumber (Sw1) Switchnumber (Sw1) Switchnumber (Sw1) Bit 1 2 3 4 5 6 7 8 Bit 1 2 3 4 5 6 7 8 Bit 1 2 3 4 5 6 7 8 Bit 1 2 3 4 5 6 7 8 0 0 0 0 0 0 0 0 0 1 0 0 0 1 0 0 0 1 0 1 0 1 0 1... -
Page 14: Specifications
Weight 22 lbs / 10,000g WARRANTY OKINA USA products are covered under warranty for one year from the date of purchase. The warranty will automatically be voided if any of the following occurs: 1. Camera sticker is removed If the camera sticker is removed, we will not be able to confirm any information regarding when and where the product was purchased.
