SoundMax SM-CMMD7001 Instruction Manual

Multimedia dvd receiver with motorized 7” tft display and tv tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM-CMMD7001
DVD-
7" TFT-
Multimedia DVD receiver with motorized 7" TFT display and TV tuner
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CMMD7001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CMMD7001

Summary of Contents for SoundMax SM-CMMD7001

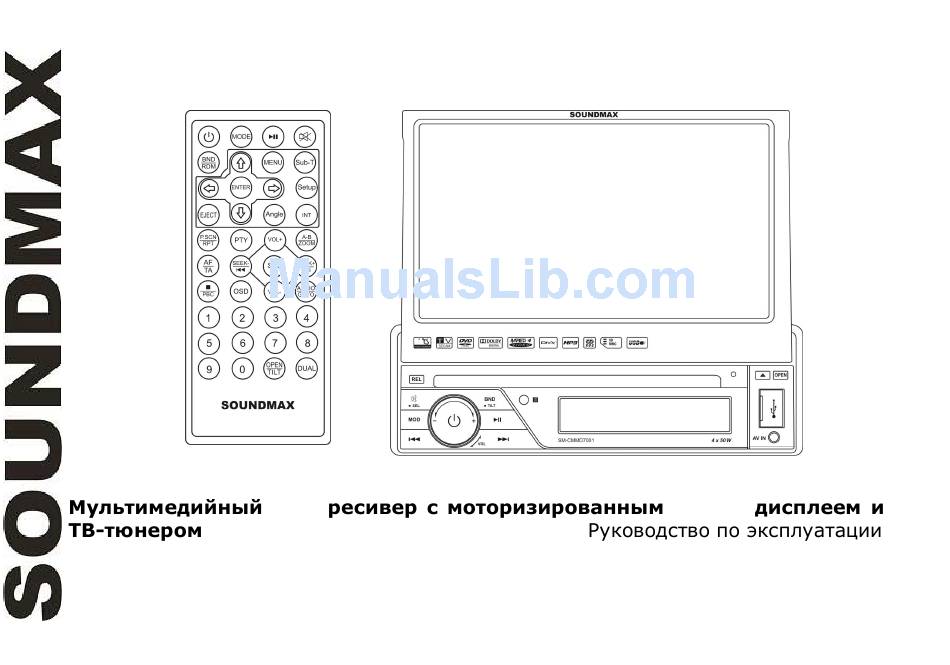

  • Page 1 SM-CMMD7001 DVD- 7” TFT- Multimedia DVD receiver with motorized 7” TFT display and TV tuner Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS .............................. 2 IMPORTANT SAFEGUARDS.............................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through the manual to familiarize yourself with this unit. Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit. “CLASS 1 LASER PRODUCT”...

  • Page 4: Accessories

    Accessories 1. Receiver 1 pc 2. Front panel 1 pc 3. Protective case 1 pc 4. Remote controller 1 pc 5. ISO connector 1 pc 6. Mounting parts: 1 pc Washer 1 pc Screw 6 pcs Metal strap 1 pc Release key 2 pcs Rubber...

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 Dismantling the unit Turn off the device. Remove the front panel and place it into the case. First remove the front frame of the device by inserting a flat object (e.g. the back of the disassembly key) between the device and the panel to the right and left of the short side of the frame and carefully levering the panel out towards the front.
  • Page 7 Connection diagram Connector Connector wires 1. - 2. Rear left - speaker (green/black) 3. Reverse (pink)
  • Page 8 4. Rear left + speaker (green) 5. Parking wire (brown) 6. Front left - speaker (white/black) 7. - 8. Front left + speaker (white) 9. Acc (red)/Fuse 1 A 10. Front right + speaker (grey) 11. Auto antenna (blue) 12. Front right - speaker (grey/black) 13.
  • Page 9 Reverse driving cable connection If the rear view video camera is connected, the unit automatically switches to camera picture during reverse driving. The unit returns to the original work mode after the reverse driving is done.

  • Page 10: Panel Controls

    Panel controls Front panel 1. MUTE/SEL button 9. EJECT button 2. REL button 10. OPEN button 3. POWER button/VOL regulator 11. MOD button 4. BND/TILT button 12. PREVIOUS button 5. PLAY/PAUSE button 13. NEXT button 6. IR sensor 14. USB port 7.
  • Page 11 Inner panel 1. Panel status indicator 2. RESET button (hole) 3. SD/MMC memory card slot Pressing RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.
  • Page 12 Remote controller 1. MODE button 2. POWER button 3. UP cursor button 4. BND/RDM button 5. ENTER button 6. LEFT cursor button 7. DOWN cursor button 8. EJECT button 9. PTY/PROG button 10. P.SCN/RPT button 11. SEEK-/PREVIOUS button 12. AF/TA button 13.
  • Page 13 Changing the battery 1. Press the catch and at the same time pull out the battery tray (pic. 1). 2. Insert the 1 lithium battery, type CR2025 (3V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote controller (pic.2).

  • Page 14: Lcd Layout

    LCD layout 1. Subwoofer indicator 12. Stereo reception indicator 2. TA function indicator 13. Not active for this model 3. TP function indicator 14. Loudness indicator 4. AF function indicator 15. Not active for this model 5. PTY function indicator 16.

  • Page 15: General Operations

    General operations Touch screen Due to the touch screen, you can fulfill most functions not only by pressing buttons but also by touching the options you need. Turning the unit on/off Press any button (except REL button and EJECT button) to switch the unit on. Press POWER button on the RC or on the panel to turn off the power.
  • Page 16 Mode selection Repeatedly press MODE button on the RC or MOD button on the panel to select a mode: Radio => Disc => USB => CARD => TV => AV-in. In any mode touch MENU (in the right top corner of the screen) or press MENU button on the RC to display the Main menu as shown in the picture.
  • Page 17 MODE button on the RC or MOD button on the panel can switch all modes of the main unit, but the external monitor is showing DVD/USB/SD mode only. D-Dual on: When D-Dual is on, all buttons are working regularly except VOL+/- buttons on the RC or VOL regulator on the panel for the external monitor and MUTE (MUTE/SEL), MODE (MOD) buttons.

  • Page 18: System Setup

    System setup When you select SETTINGS mode or press SETUP button on the RC, the menu will be displayed, in which you can touch any item to select or adjust it. You can also navigate in the menu and perform adjustment by pressing cursor buttons on the RC and confirm your selection by pressing ENTER button on the RC.
  • Page 19 PI: Mute/Sound. PI sound refers to the reception noise when the AF function tries to scan alternative frequency. REGION: REG ON (the receiver accepts regional variants of the tuned station with REG icon turned on), and REG OFF (the receiver ignores regional variants). Mask: DPI/ALL.
  • Page 20 Note: if you forget your password, there is no possibility to reset the password again. Do not forget your password and write it down or store the password in a safe place. Rating: The Rating control level is for parents to control playing content and protect your children from violence and erotic.

  • Page 21: Radio Operations

    Radio operations User interface of Radio mode When the unit is switched to Radio mode, the touchable interface will be displayed on the display. 1. PTY button. Touch to enable/disable PTY function. In the PTY list, touch a program type to start its search. 2.
  • Page 22 Manual/automatic tuning Manual tuning: press PREVIOUS/NEXT buttons on the panel or SEEK-/PREVIOUS and SEEK+/NEXT buttons on the RC and hold for 2 seconds to enter the manual tuning mode. Press these buttons repeatedly to select a frequency downward or upward step by step. Automatic tuning: press PREVIOUS/NEXT buttons on the panel or SEEK-/PREVIOUS and SEEK+/NEXT buttons on the RC, the automatic search will start.
  • Page 23 TA (Traffic alarm) function Press AF/TA button on the RC to switch on the TA function. When TA is on, the TA displays on TFT, or else, if there is no TP information, the mode will search TP station automatically. When TA is playing, the volume will be adjusted to a TA level automatically.

  • Page 24: Tv Operations

    TV operations Connect a TV antenna to the TV antenna jack of the unit. Select TV mode. Select TV mode, then press PLAY/PAUSE button on the RC or front panel, or touch the screen, then touch TV MENU item to show the TV Menu. To select a menu page (Auto Program or Manual Program) press UP/DOWN cursor buttons on the RC or touch these items on the screen.

  • Page 25: Disc/Usb/Sd/Mmc Operations

    Disc/USB/SD/MMC operations USB/SD/MMC notes USB format supports 1.1. Capacity: up to 16 Gb. For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 16 Gb. Insert/Eject disc Insert a disc into the disc slot with label side up.
  • Page 26 9. SUBT button. Touch to select disc subtitle language. 10. AUD button. Touch to select disc audio language. 11. MENU button. Touch to go to the disc root menu. You can also touch icons to adjust the monitor tilt and icons to select previous or next title.
  • Page 27 7. Touch to go to the next file list page. 8. MDC button. Touch to go to folder selection. 9. Mute button; touch to switch sound on/off. 10. Volume down button. Touch to decrease volume. 11. Volume level. 12. Volume up button. Touch to increase volume. 13.
  • Page 28 Fast forward/rewind Press and hold repeatedly SEEK-/PREVIOUS or SEEK+/NEXT buttons on the RC or PREVIOUS or NEXT buttons on the panel or corresponding buttons on the screen for fast backward or forward playing correspondingly. With each pressing playback speed will increase. While fast playback, press PLAY/PAUSE button on the RC or on the panel to resume normal speed.
  • Page 29 OSD setting (for DVD) When video is played, press and hold OSD button to access the on-screen menu in which you can adjust color parameters (brightness, contrast etc.) of the image by touching corresponding item. Zooming in/out During playback of video or images on disc/USB/SD/MMC, press and hold repeatedly A-B/ZOOM button on the RC, the picture will be zoomed in the sequence: Zoom2 =>...
  • Page 30 Menu navigation (for DVD only) Press and hold MENU button on the RC to activate the disc menu list on the screen. Choose the desired item. Press ENTER button or PLAY/PAUSE button on the RC or on the panel or touch corresponding button on the screen to confirm the selected item and start playing.

  • Page 31: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 32: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...
  • Page 33 Temperature inside the car is too Cool off until the ambient temperature returns to high. normal. Buttons do not The built-in microcomputer is not Reset the unit with the help of RESET button. work operating properly. Front panel is not properly fix into its Install the front panel properly.

  • Page 34: Specification

    Specification General Nominal power supply: 13.5 – 14.4 V DC Maximum power output: 4 x 50 W Unit dimensions 165 x 50 x 178 mm Net/Gross weight 2.5 kg/3.5 kg Mounting angle 0 to +/-30 Working temperature range - +60 Display Display Motorized 7”...
