In a value setting window, turn the dial clockwise or counterclockwise to increment
or decrement the value displayed, and press the dial to confirm the value
*2
specified.
Turn the dial clockwise (+) to increment the value.
Turn the dial counterclockwise (-) to decrement the value.
Turning the dial clockwise or counterclockwise to increment or decrement the value
displayed and pressing the dial to confirm the value specified are referred to as
"specify/confirm a value."
*1: When the control dial is pressed, it performs the same function as the [ENTER]
key on the inverter's main operation panel.
*2: Some settings are executed only by tuning the control dial.
• ¡

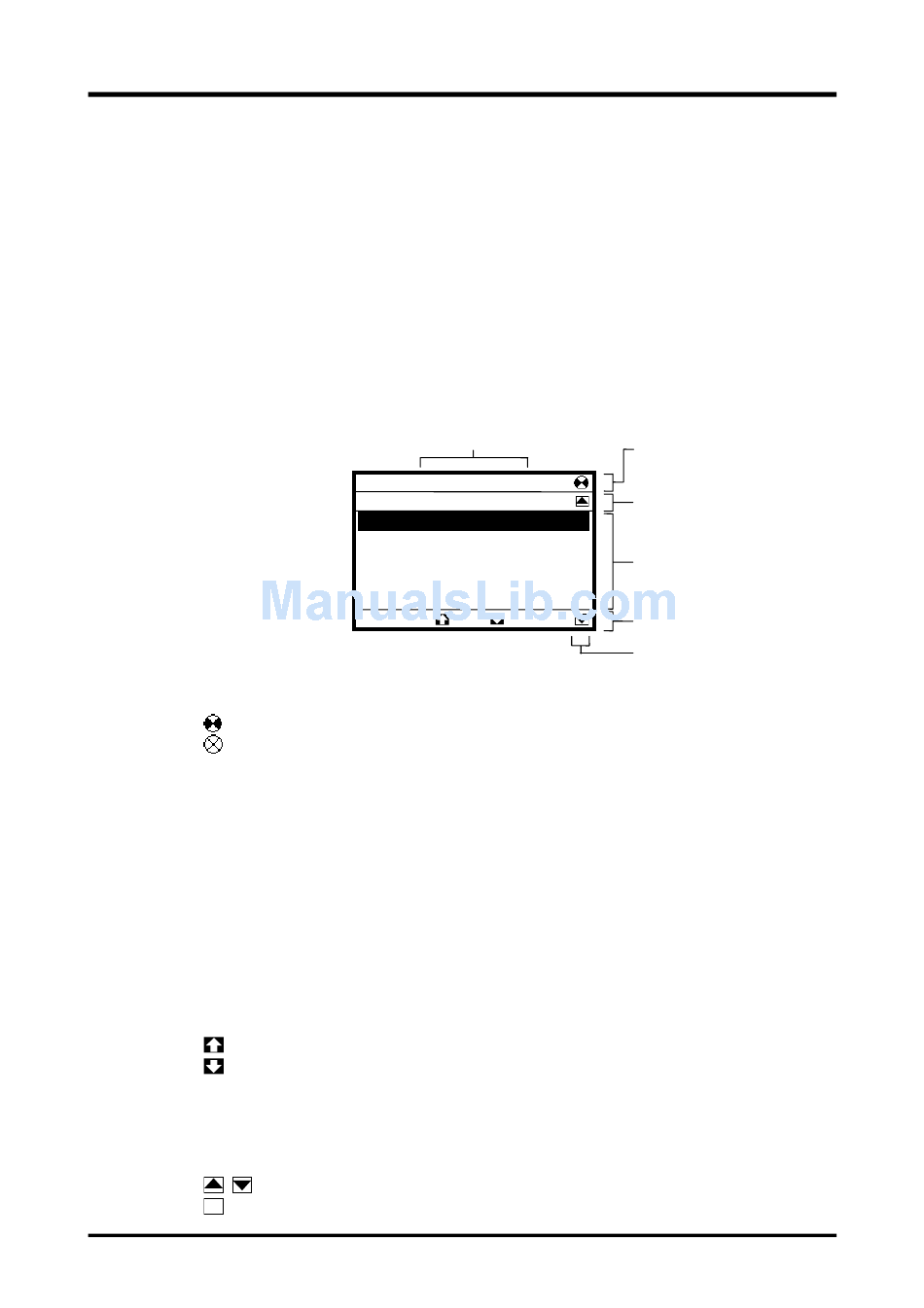

LCD panel
This section explains the features of windows available, using the top window of
Status Monitor Mode as an example.
‡ @
Displays the mode currently selected.
‡ A Displays the operating status of the inverter in a graphical symbol.
(rotating)
EOFF (blinking)
‡ B
Displays the title or status of the window.
‡ C Displays settings both in a menu form and numerically, or a list of various kinds of
information.
‡ D Displays the function assigned to each function key in an abbreviation or
graphical symbol.
The abbreviations and graphical symbols in the window correspond to the [F1] to
[F4] keys, respectively starting from the left.
Top : In this example, pressing the [F1] key displays the Top View Mode
window.
: In this example, pressing the [F2] key displays the previous window.
: In this example, pressing the [F3] key displays the next window.
Prm : In this example, pressing the [F4] key displays the Parameter Setting
Mode window.
‡ E Graphical symbols displayed vary depending on whether there are windows that
precede or follow the current window.
: There are windows that precede and/or follow the current window.
: There is no window that precedes or follows the current window.
‡ @
Status Monitor Mode
Real-time information
Rotative direction
Frequency reference
Output current
Input voltage
Output voltage
Top
: In operation
: Operation impossible (While the frequency is set at 0Hz, the
[RUN] key is pressed.)
: Waiting for emergency stop operation
1-2
1. Names and functions
‡ A
‡ B
Fwd
60.0Hz
‡ C
90%
99%
99%
‡ D
Prm
‡ E
