Stanley Cara Installation And Operating Instructions Manual

Stanley Cara Installation And Operating Instructions Manual

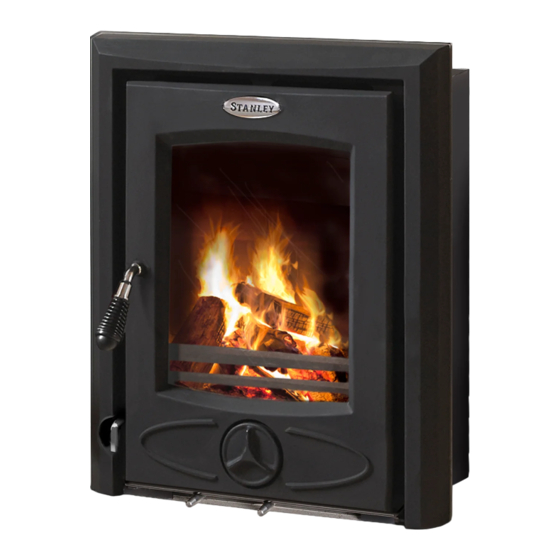

Boiler insert stove
Hide thumbs Also See for Cara:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Instructions and Operating Manual
Cara Boiler
Insert Stove
This appliance is hot while in operation and retains its heat for a long period of time after use.
Children, aged or infirm persons should be supervised at all times and should not be allowed
to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
When using the stove in situations where children, aged and/or infirm persons are
present a fireguard must be used to prevent accidental contact with the stove. The fireguard
should be manufactured in accordance with BS 8423:2002.
INSTALLATION AND OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading

Related Manuals for Stanley Cara

Summary of Contents for Stanley Cara

  • Page 1 Cara Boiler Insert Stove This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE NO. Insert Stove Installation & Operating Instructions ......General .
  • Page 3 PAGE NO. Fire Safety ............Frozen System .

  • Page 4: Insert Stove Installation & Operating Instructions

    INSERT STOVE INSTALLATION & OPERATING INSTRUCTIONS Please refer to the current standards, BS EN 15287- NOTE: Please note that it is a legal requirement 1:2007 Design, Installation and Commissioning of under England & Wales Building Regulations that chimneys. BS EN 14336:2004: Heating Systems in the installation of the stove is either carried out Buildings.

  • Page 5: Chimney

    CHIMNEY Fig.1 THIS PROdUCT IS SUITABLE FOR CHIMNEY INSTALLATION ONLY. The stove is a radiant room heater and must be con- nected to a chimney of the proper size and type. For ROI the chimney must have a diameter of at least 125mm.

  • Page 6: Fitting Instructions

    Any existing chimney must be clear of obstruction Fig.3 and have been swept clean immediately before installation of the stove. If the stove is fitted in place of an open fire then the chimney should be swept one month after installation to clear any soot falls which may have occurred due to the difference in combustion between the stove and the open fire.

  • Page 7: Not Fully Lined Chimney

    Fig.5 Step 10 240mm - 320mm Pull the flexi liner back up through the flue outlet and fix the flue spigot into position using the M8 nuts pro- vided. It may be necessary to cut a prop to hold the spigot in place while the fixings are being attached.
  • Page 8 Fig 7 Fig.6 Fire Cement 1. Grate Support 2. Grate 3. Top Baffle 4. Bottom Baffle 5. Fire Fence Fire Cement 1. Grate Support Tilt the grate support up on one side and pass it carefully through the door opening, fit the 4 short legs on the underside into the openings in the steel- work.

  • Page 9: Down Draughts

    4. Bottom Baffle Fig 10 Lay the baffle into the stove so the edge with corners removed is to the front. Lift the front edge of the baf- fle on top of the cross pipe, then lay the rear edge on the support on the back of the boiler.

  • Page 10: Permanent Air Vent

    pass through normally occupied areas of the room. Extractor Fan An air vent outside the building should not be locat- There must not be an extractor fan fitted in the same ed less than the dimensions specified within the room as the stove as this can cause the stove to Building Regulations and B.S.

  • Page 11: Floor Protection

    Fig.11 Fig.13 Fig.12 If there is a studded wall surrounding the fire- place as in Fig.13, ensure the clearances in this Fig are adhered to. FLOOR PROTECTION It is recommended that this appliance is installed on a solid, level, concrete base, a non combustible hearth conforming to current Building Regulations must extend to the front of the appliance.

  • Page 12: Technical Data

    TECHNICAL dATA Manufactured Smokeless Fuel:- Room Water Total Max:- 2.0kW 7.0kW Nominal:- 1.2kW 4.0kW Typical refuelling intervals to obtain nominal outputs 4 hours Flue Gas Mass Flow 4.2 g/s Flue Gas temp at nominal output Gross Weight: 108 kgs Flue Outlet: 125 mm Flue Draught: 12 Pa...

  • Page 13: Injector Tee

    Fig.16 INJECTOR TEE In the unlikely event that the appliance is not oper- ating in freezing conditions the water must be Where the gravity and central heating circuits join drained from the boiler to prevent frost damage. together to return to the stove we recommend the use of an injector tee connection, situated as close PIPE THERMOSTAT to the unit as possible.

  • Page 14: Primary Air Control Spin Valve

    the maximum air to the fire and will help to clean the RECOMMENdEd FUELS glass even after it has become sooty. This control can be used in conjunction with the spin valve but This appliance has been tested using manufactured generally the fire will perform best if the slider is smokeless fuels.

  • Page 15: Slow Burning

    Fig.20 MAINTENANCE CREOSOTE: Formation and Need for Removal When some fuels are burned slowly, they produce tar and other organic vapours, which combine with expelled moisture to form creosote. The creosote vapours condense in the relatively cool chimney flue of a slow-burning fire. As a result, creosote residue accumulates on the flue lining.

  • Page 16: Lighting

    Use only ing on the fuel burned. (See Re-Fuelling replacement parts recommended by Waterford Section). Stanley. Using unauthorised parts will invalidate your guarantee and may cause damage or 6. To shut the fire down, do not add fuel. Make injury.

  • Page 17: Co Alarms

    FROZEN SYSTEM CO ALARMS If there is any possibility that the water system may Building Regulations require that whenever a new be frozen do not attempt to light the stove until you or replacement fixed solid fuel or wood/biomass are certain there is no ice in the system possibly appliance is installed in a dwelling a carbon monox- causing a blockage.

  • Page 18: Exploded View

    CARA BOILER INSERT STOVE EXPLOdEd VIEW OPERATING TOOL - B00009dXX 16. DAMPER VALVE - F01064AXX SPIN VALVE - B00032AXX 17. MIN SPRING HANDLE - L00539AXX FIRE DOOR - B00587AXX 18. FLUE GASKET - P00102AXX FRONT - B00588AXX 19. 5” FLUE -...
  • Page 19 NOTES...
  • Page 20 Manufactured by Waterford Stanley Ltd., Unit 401-403, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 Fax (051) 302315 www.waterfordstanley.com www.stanleystoves.com N00509AXX Rev: 004 dP 130903...
