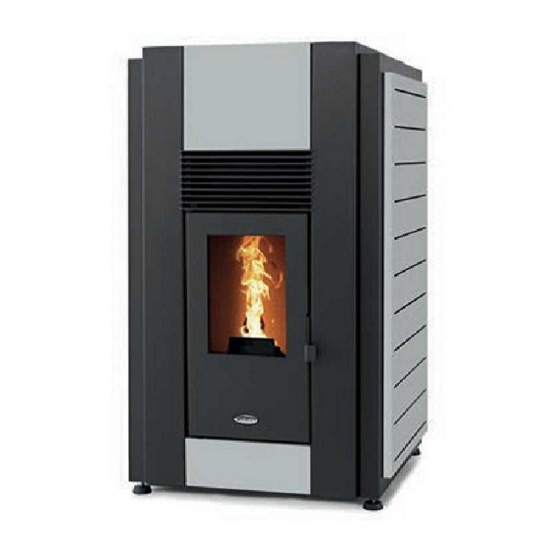

Stanley K1700 Installation And Operating Instructions Manual
Wood pellet boiler stove
Hide thumbs
Also See for K1700:
- Installation and operating instructions manual (50 pages) ,
- Instruction manual (68 pages)
Subscribe to Our Youtube Channel
Related Manuals for Stanley K1700
Summary of Contents for Stanley K1700

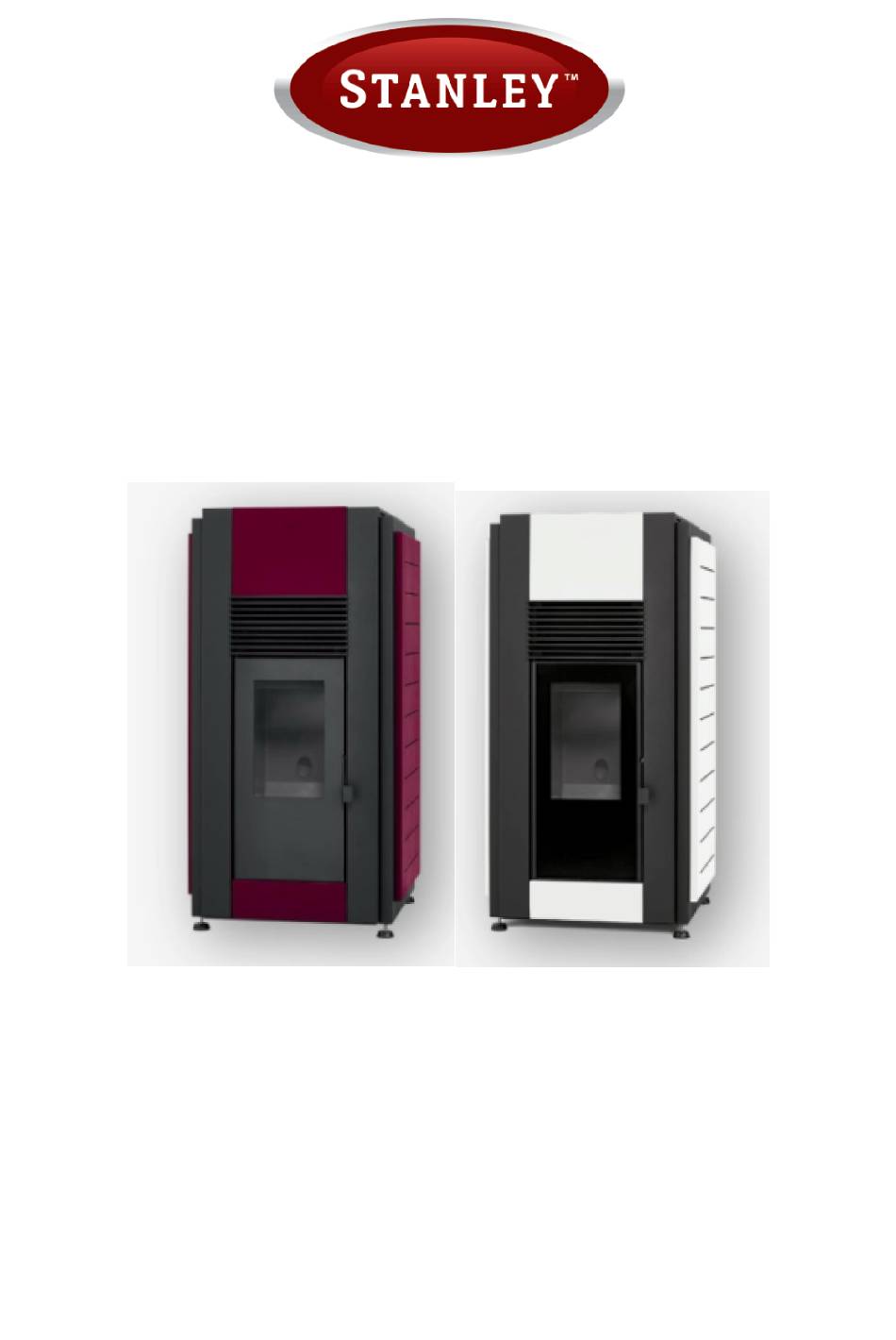

- Page 1 K1700 & K2300 Wood Pellet Boiler Stove Installation and Operating Instructions Read these instructions carefully before installing, using and servicing the stove.
-
Page 2: Table Of Contents
Table of Contents SETTING THE LANGUAGE FOR THE FIRST TIME........................3 STANLEY PELLET STOVE WARRANTY ..........................4 PACKAGE CONTENT ................................5 ............................. 5 NPACKING THE FREE STANDING FIRE SAFETY PRECAUTIONS ............................... 5 : ..........................6 OR YOUR SAFETY WE RECOMMEND THAT TECHNICAL SPECIFICATIONS .............................. -
Page 3: Setting The Language For The First Time
CE conformity mark; The Boiler pellet stoves are manufactured in compliance with the EN 14785:2008 Standards WATERFORD STANLEY bears no responsibility for any damage to the stove if it is installed by non-qualified personnel; WATERFORD STANLEY is not responsible for any damage to stoves not installed and used in compliance to the instructions included in this manual;... -
Page 4: Stanley Pellet Stove Warranty
All warranty claims must be reported to the Waterford Stanley Service Department and must be submitted with the product serial number (located on the data plaque at the rear of the product), date of purchase, proof of purchase (if requested) and details of the specific nature of the problem. -
Page 5: Package Content
Figure 1 – Unpacking the free-standing fire stove Safety precautions Waterford Stanley is not liable for any damages to the stove if the specified precautions, warnings and operating procedures are not followed. Stoves manufactured by Waterford Stanley are easy to operate and special attention was given to their components in order to protect users and installers against accidental damages. -
Page 6: For Your Safety, We Recommend That
For your safety, we recommend that: · Make sure you fully read and understand this instruction manual before using the boiler pellet stove as a biomass heating stove. · · Make sure that the hydronic/ plumbing circuit was correctly assembled and connected to the water supply before turning on the boiler pellet stove. -
Page 7: Technical Specifications
Technical specifications Table 1 – Technical specifications K1700 K2300 FEATURES Stoves Weight 1150 1210 Height Width Depth Diameter of the fume discharge pipe Reservoir capacity Maximum heating capacity m³ 14,2 / 3 18,8 / 3,3 Maximum overall thermal power (fire... - Page 8 Front Rear Side Figure 2 – Dimensions of the K1700 Front Rear Side Figure 3 – Dimensions of the K2300 Figure 5 – Hydraulic connections of the K1700 Figure 6 – Hydraulic connections of the K2300...
-
Page 9: Installation Of The Boiler Pellet Stove
Installation of the boiler pellet stove Before installing, please perform the following steps: · Upon receipt, check the product for completeness and to determine that is does not show any damage signs. Any damages or defects should be checked before the stove is installed. ·... -
Page 10: Assembly Of Removable Parts
Assembly of removable parts After the installation, the stove should be fitted with the removable covers. - Top front cover To install the top front cover, place it over the stove (Figure-8a) and then tighten the screws that secure it to the top panel of the stove (Figure 8b). -
Page 11: Installation Requirements
Installation requirements The minimum distance between the free-standing pellet fire stove and particularly flammable surfaces is specified in Figure 11. The top of the stove must be at least 100cm separated from the ceiling, especially in rooms with ceilings consisting of flammable materials. -
Page 12: Installation With A Chimney
The boiler pellet stove has a circular pipe (Æ 50mm) that may be connected to the exterior of the house. An outside air kit and adaptor from 50-100 is available to order from Waterford Stanley. -
Page 13: Hydronic Installation
Hydronic Installation * The chapter 14 (installation diagrams) contains the optional connection diagrams for central heating installations, with or without water heating for household use; * The boiler model pellet stove is equipped with a circulating pump, an expansion vessel (6 litre volume (in the K1700model) or 10 litre volume (in the K2300 model) and a 3-bar safety valve;... -
Page 14: Use Of The Boiler Pellet Stove
Use of the Boiler pellet stove Recommendations Before starting up the stove, please check the following: · Guarantee that the stove is properly connected to the power mains using the 230VAC power cable. Figure 13 – Electric power plug. · Check to see whether the pellet reservoir is supplied with pellets. -
Page 15: Remote Control And Display
Remote control and display MODE MENU 20.5ºC 16:03 Figure15 – Remote control and display Key to toggle between manual and automatic mode and exit menus (esc). b) Key to access menus and confirmation key (ok). c) Key to start/stop the stove and reset error messages. d) Key to scroll the menus to the left, o r to reduce the set point e) Key to scroll menus to the right or increase t h e s e t p o i n t... -
Page 16: Display Information Summary
Display information summary 9.2.1 Menu Menu indicating that the stove power is "off", the room temperature in ºC and Time. MODE MENU 20.5ºC 16:03 Selecting the operation mode: to select the operation mode, press the “mode” key to select “Manu” for manual mode or “Auto” Note: For boiler models manual mode is unavailable. - Page 17 · Year To set the year press “set”. The display starts to flash. Press the “+” or “-” key to select the desired year and then “ok” to confirm. Press "esc" to return to the " Date and Time " menu then "+" month menu. The Timer menu appears. •...
-
Page 18: Timer
9.2.4 Timer The stove is equipped with a timer that allows the stove to be turned on or off at a specified time. Setting the timer/s Step 1 Press the “set” button twice followed by the “+” button to display “ chrono” Step 2 Press the “set”... -
Page 19: Sleep
9.2.5 Sleep The "Sleep" menu allows you to setup the time you want the stove to turn off. MODE MENU SLEEP Press "set". The display starts to flash. Select the desired time using the "-" and "+" keys. After choosing the time, press "ok" to confirm. - Page 20 MODE MENU < > · Lighting To select lit screen, press “set”. The display starts to flash. Press the "+" or "-" key to select the time at which you want the screen to light up, or choose "On" to keep the light on at all times. Press "ok" to confirm. Press the "+" key to go to the (Tones) menu.
- Page 21 - Power settings This feature allows you to increase or decrease by 25% the quantity of pellets at each power level. Press "set". The display starts to flash. Press "+" or "-" to increase or reduce (from -5 to +5), accordingly. Each stove must be multiplied by 5 to obtain the correct percentage.
-
Page 22: User Info
User Info This menu contains some user information regarding the Free-Standing Fire stove. Press "set"; the " (File Code) menu appears. Display software/firmware code Press the "+" key to go to the (Operating Hours) menu. MODE MENU < Info Usuario > This menu shows for how many hours the stove has been operating. -
Page 23: Start-Up
Ventilation power level. Hydraulic circuit pressure 10 Start-up To start operating the Boiler pellet stove, press the start/stop button for 3sec. The display should indicate " Lighting " until the completion of this phase. The pellets will pass through the supply channel to the burning basket (combustion chamber), where they will be ignited using a heat resistor. -
Page 24: Pellet Reservoir Lid
Figure 16 – Removal of side covers 10.3.2 Pellet reservoir lid The pellet reservoir is opened by sliding the bolt sideways Figure 17a The lift the lid using the Tab Figure 17b Figure 17 10.4 Filling the pellet reservoir 1 – Open the pellet reservoir lid at the top of the stove, as shown in Figure 18. 2 –... -
Page 25: Maintenance
11 Maintenance The Waterford Stanley boiler model pellet stove requires careful maintenance. The most important thing is to remove the ash from the pellet burning area at regular intervals. This can be easily done by using a simple household vacuum cleaner. It should be cleaned after burning approximately 60kg of pellets. - Page 26 Then clean the inside of the stove using a steel brush on the surfaces where dirt has accumulated (Figure 19). Figure 19 – Cleaning the interior of the boiler model The burning basket (Figure 20-a) and ash basket (Figure 20-b) must then be removed and the ash vacuumed from both. The interior of the stove must also be cleaned by opening the hatch, as shown in Figure 21.
-
Page 27: Additional Cleaning
11.2 Additional cleaning For every 1300-1700lbs (600-800kg) of pellets consumed, additional cleaning should be performed. For the boiler stove, the procedure involves cleaning the air flow pipes and turbulators. To do this, open the lid on the top of the stove (Figure 22-a) and remove the six wing nuts securing each turbulator set (Figure 22-b and 22-c). Then pull the turbulators up (Figure 22- d/e). -
Page 28: Cleaning The Glass
Figure 23 – Cleaning the air flow pipes and turbulators If fumes are not being extracted in the best manner possible, we recommend you clean heat exchanger and the extractor as shown in Figures 22 and 23. However, we recommend that you perform this procedure at least once a year. Figure 23 –... -
Page 29: Alarms / Failures / Recommendation List
12 Alarms / failures / recommendation list 12.1 Alarms Alarm Code Troubleshooting - the worm drive channel is empty - restart the stove Maximum time 2400 - resistance burnt – replace resistance Ignition failure - the burning basket has been incorrectly installed Temperature under: - 104ºF (40°C) (air... -
Page 30: Exploded View
13 Exploded view. -
Page 31: Installation Diagrams
14 Installation diagrams 14.1 Central heating installation diagram Figure 26 – Central heating installation diagram. 14.2 Installation diagram for central heating and DHW using a cylinder thermostat Figure 27 – Installation diagram for central heating and household water heating using a cylinder thermostat... -
Page 32: Symbols
14.3 Symbols Figure 28 – Symbols 14.4 Electrical diagram of the Boiler pellet stove. Figure 29 – Electrical diagram... -
Page 33: Remote Switched Connection
14.5 Remote switched connection. The volt free connection on the rear of the stove can be used to provide a remote call for heat. The product can be set up with a remote timeclock, room thermostats and motorised valves using the standard S plan configuration where the auxiliary switch wires of the motorised valve can be connected to the remote connections in place of the wires in the picture below providing a call for heat. -
Page 34: Annexes
17 Annexes Operations flow charts · Flow chart 1 – Normal operation. Note (only for the boiler model): The circulating pump operates intermittently from the moment the water temperature reaches 50ºC and operates continuously from the set-point temperature. - Page 35 · Flow chart 2 – Switching off the pellet stove. Note The circulating pump is turned off when the water temperature reaches below 40ºC.
- Page 36 Supplied by Waterford Stanley Ltd., Stove 401-403, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 www.waterfordstanley.com...
