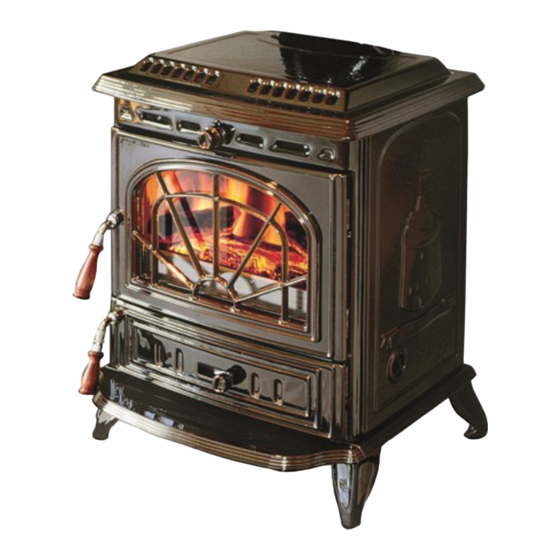

Erin
Non Boiler Solid Fuel Stove
INSTALLATION AND OPERATING INSTRUCTIONS
This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged
or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces
while in use or until the appliance has thoroughly cooled.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stanley Erin
Summary of Contents for Stanley Erin
- Page 1 Erin Non Boiler Solid Fuel Stove INSTALLATION AND OPERATING INSTRUCTIONS This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NO. General ............... 3 Pre-Installation Assembly . -
Page 3: General
When installing, operating and maintaining your Place the plastic packing on the ground at Erin Stove respect basic standards of fire safety. the back of the stove and lay the stove on Read these instructions carefully before commenc- its back on top of the packing. -
Page 4: Top Flue Exit
Note: Ensure that the secondary air damper is Fig. 5 sealing against the back panel when the connecting rod is in the closed position. (see section on Secondary Air Control). TOP FLUE EXIT Fit the top flue spigot to the top of the stove as shown in Fig.8, and cement into place. -
Page 5: Flue Pipes
Building Regulations from any part of any flue termi- CHIMNEY nal. These air vents must also be fire proofed as per The Erin is a radiant room heater and must be con- Building Regulations. nected to a chimney of the proper size and type. -
Page 6: Location
LOCATION There are several conditions to be considered in selecting a location for your Erin Stove. Position in the area to be heated- central locations are usually best. Allowances for proper clearances to combustibles. NOTE: Sufficient space should be given around the back and sides of the stove to allow access to the secondary air control damper. -
Page 7: Important Notes
IMPORTANT NOTES Now that your Stanley solid fuel Stove is installed and no doubt you are looking forward to many comforts it will provide, we would like to give you some tips on how to get the best results from your stove. -
Page 8: Lighting The Stove
LIGHTING Before lighting the stove, ensure that any build up in the firebox has been removed (see De-Ashing Section) and that the ashpan has been emptied. Open firedoor and open the primary air inlet by sliding the control knob on the ashpit door to the right hand side. Open the secondary air inlet by turning it anti-clockwise for coal and wood only. -
Page 9: Specification
SPECIFICATION Fig.11 Dimensions Metric (mm) Imperial (inches) 1 /2 1 /4 1 /9 TECHNICAL DATA Max. Output to Room 14.7 kW (50,000 Btu) NOTE: Dimensions stated below may be subject Total Nett Output 14.7 kW (50,000 Btu) to a slight +/- variation. Gross Weight 172 Kgs (379 lbs) PRIMARY AIR CONTROL... -
Page 10: Secondary Air Control
BURNING OF ANTHRACITE OR SMOKELESS Fig.14 COAL When burning anthracite or smokeless coal, close the air wash control knob by turning it in a clockwise direction. Open the primary air control knob by slid- ing it fully towards the right. Close the secondary air control by lifting the secondary air connecting rod and pushing it fully back until the notch engages in Air Wash Control... -
Page 11: To Clean Chimney Outlet
mend that you remove ashes after you have riddled the top firebrick and take it out at the firebox. the fire following an overnight burn. Replace the damaged brick and replace the bricks by doing the reverse of the above. Note: The stove should never be operated with the ashpit door open. -
Page 12: Cleaning Glass
Association 4. DO NOT USE ABRASIVE PADS OR OVEN CLEANSERS CONTAINING CITRIC ACID ON ENAMELLED SURFACES. ENSURE THAT THE CLEANSER MANUFACTUR- ERS INSTRUCTIONS ARE ADHERED TO. GLASS CLEANING The glass will self clean when there is sufficient heat generated by the burning fuel. If a build-up of cre- osote occurs on the glass it may be due to draft con- ditions, poor quality fuel or very low burning for a long time. -
Page 14: Installation Check List
12. The room in which the appliance is located should have an air vent of adequate size to support correct combustion (see Ventilation & Combustion Air Requirement Section for specific details). Manufactured by Waterford Stanley Ltd., Unit 210, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 Fax (051) 302315...
