PLEASE RETAIN

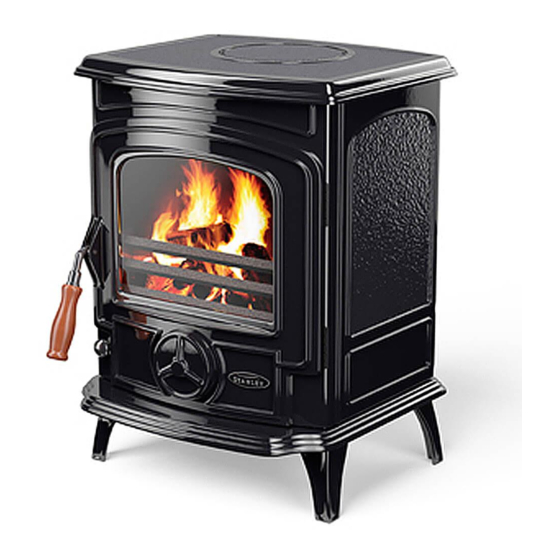

Oisin Solid Fuel Stove
This appliance is hot while in operation and retains its heat for a long period of time after use.
Children, aged or infirm persons should be supervised at all times and should not be allowed to touch
the hot working surfaces while in use or until the appliance has thoroughly cooled.
When using the boiler stove in situations where children, aged and/or infirm persons are present a
fireguard must be used to prevent accidental contact with the stove. The fireguard should be
manufactured in accordance with BS 8423:2010.
INSTALLATION AND OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oisin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stanley Oisin

Summary of Contents for Stanley Oisin

  • Page 1 PLEASE RETAIN Oisin Solid Fuel Stove This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.

  • Page 2: Table Of Contents

    Stanley Solid Fuel Stove Warranty ........
  • Page 3 TABLE OF CONTENTS PAGE NO. 39. Periodic Maintenance ............16 40.

  • Page 4: Stanley Solid Fuel Stove Warranty

    All warranty claims must be reported to the Waterford Stanley Service Department and must be submitted with the prod- uct serial number (located on the front casting), date of purchase, proof of purchase (if requested) and details of the specific nature of the problem.

  • Page 5: Installation Checklist

    INSTALLATION CHECK LIST Tick Flue System 1. Minimum Flue Height of 4.6 metres (15 feet). 2. Appliance should be connected to a minimum of 1.8 metres (6 feet) of 150mm (6”) flue pipe. 3. The horizontal flue run should not exceed 150mm (6”) 4.

  • Page 6: Important Operation/ Maintenance Notes

    IMPORTANT OPERATION / MAINTENANCE NOTES Now that your Stanley Solid Fuel Stove is installed and no doubt you are looking forward to many comforts it will provide, we would like to give you some tips on how to get the best results from your stove.

  • Page 7: Installation & Operating Instructions

    Local Authority Building Control approval or is installed by a Competent Person registered with a Your Oisin stove is supplied with the following items: Government approved Competent Persons •...

  • Page 8: Chimney

    CHIMNEY FLUE EXIT (TOP & REAR) Fig.3 The Oisin is a radiant room heater and must be con- nected to a chimney of the proper size and type. The chimney must have a diameter of at least 150mm. Never connect to a smaller size chimney.

  • Page 9: Down Draughts

    Fig.5 Note: There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit smoke and fumes into the room. VENTILATION & COMBUSTION AIR REQUIRE- MENTS It is imperative that there is sufficient air supply to the stove in order to support correct combustion.

  • Page 10: External Ducted Air

    Where such an installation exists, a test for spillage It is recommended to bring the air supply for the should be made with the fan or fans and other appli- stove into the house using a 4” plastic pipe. Where ances using air in operation at full rate, (i.e.extrac- the pipe meets the outside wall make sure a vent tion fans, tumble dryers) with all external doors and...

  • Page 11: Location

    Fig.8 LOCATION There are several conditions to be considered in selecting a location for your Stanley Oisin Stove. a. Position in the area to be heated, central locations are usually best. b. Allowances for proper clearances to combustibles. c. Allowances for proper clearances for maintenance work.

  • Page 12: Plumbing

    Fig.9 8. Insert boiler through the fire door. 8” 9. Screw the two 28mm (1”) flange nuts over the boiler connections. (Do not over tighten flange nuts). 10. Replace side bricks. 11. Replace fire bars. (See Fig.11) 8” 8” Fig.11 10”...

  • Page 13: Safety Valve

    SAFETY VALVE REGULATIONS A non-adjustable 3 bar safety valve must be fitted to The plumbing must be in accordance with all the primary flow pipe adjacent to boiler connection relevant regulations and practices. It must include a ensuring that any discharge will not create a hazard gravity circuit with expansion pipe, open to the to occupants or cause damage to electrical compo- atmosphere.

  • Page 14: Stove Dimensions

    OPERATION STOVE DIMENSIONS Fig.14 Check that all dampers and catches are operating correctly and ensure that all flue connections are thoroughly sealed. AIR CONTROLS Primary air control The spin valve, located at the bottom end of the door controls the primary and window wash air supply to the stove.

  • Page 15: Technical Data

    Class to Room to Water Index Fuel Output Net Efficiency Oisin NB SF Stove 106.13 Wood 79.4 LIGHTING Before lighting the stove check with the installer that the installation work and commissioning checks described previously have been carried out correctly and that the chimney has been swept clean, is sound and free from any obstructions.

  • Page 16: Refuelling

    DISPOSAL OF ASH RE-FUELLING Ashes should be placed in a metal container with a Riddle the fire by connecting the grate operating tool tight fitting lid. The closed container of ashes should onto the rocker connection located at the bottom be on a non-combustible floor or on the ground well front of the stove, then gently pull and push the rock- away from all combustible materials pending final...

  • Page 17: Glass Cleaning

    GLASS CLEANING CHANGING THE ROPE SEALS The stove glass will self-clean when there is suffi- The rope seal between the door & the front casting cient heat generated by the burning fuel i.e. when will compress & harden over time and whilst small the unit is operated at the maximum air settings.

  • Page 18: Fire Safety

    FIRE SAFETY CO ALARM The fitting of CO Alarms in the same room as the To provide reasonable fire safety, the following appliance is a compulsory requirement under cur- should be given serious consideration. rent Building Regulations. For ROI an additional CO Alarm must be fitted either inside each bedroom or 1.

  • Page 19: Exploded View

    OISIN SF NB EXPLODED VIEW LEG (SHORT) - B00001AXX 24. HOB PROTECTION PLATE - Q00007AXX BASE - B00002AXX 25. BACK PANEL - Q00576CXX FRONT FRAME - B00003BXX 26. BRACE PLATE - Q00759AXX LH SIDE PLATE - B00004CXX 27. GLASS WINDOW...
  • Page 20 Manufactured by Waterford Stanley Ltd., Unit 401-403, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 Fax (051) 302315 Rev:008 YS 280417 Item No: N00002AXX...
