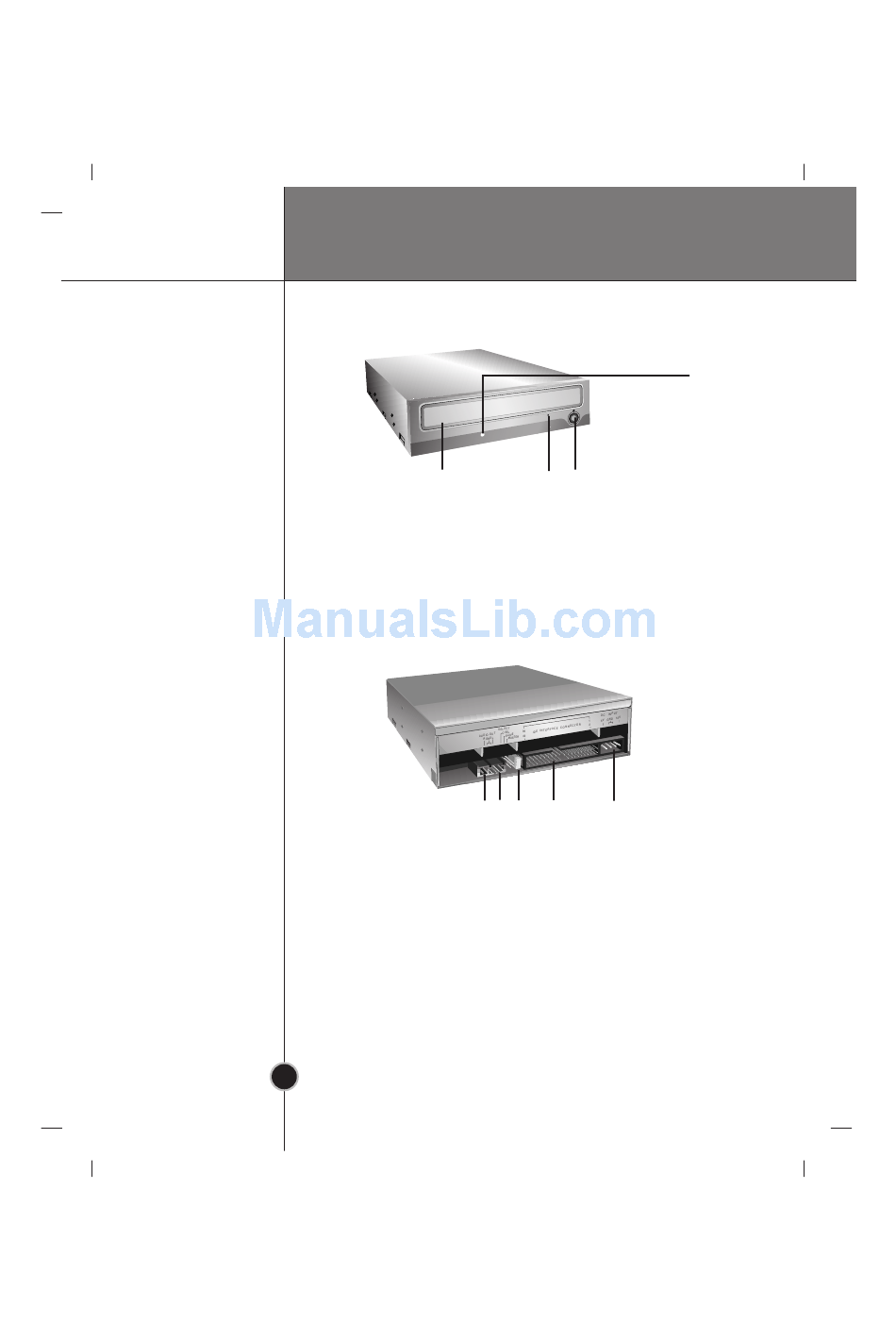

Location and Function of Controls
1. Disc Tray
2. Emergency Eject Hole
3. Stop/Eject Button
1. Digital Audio Output Connector
This connector is not supported.
2. Analog Audio Output Connector
3. Jumper Connector
This jumper determines whether the drive is configured as a master or slave.
Changing the master-slave configuration takes effect after power-on reset.
4. IDE Interface Connector
Connect to the IDE (Integrated Device Electronics) Interface using a 40-pin
flat IDE cable.
NOTE : Do not connect or disconnect the cable when the power is on, as this
could cause a short circuit and damage the system. Always turn the power
OFF when connecting or disconnecting this cable.
5. Power Connector
4. Drive activity indicators
The LED used to indicate the
operation of Super Multi DVD Drive.
The green color is displayed during disc reading
The green color is flashed during disc writing
The green color is displayed during disc
writing session. (DVD-RAM, DVD+R/RW)
1 2 3
