CAUTION : The laser used in the Super Multi DVD Drive can damage your eyes. Do not attempt to open the cover. To reduce the risk of electric shock, do not remove the cover (or back). There are no user-serviceable parts inside.
This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC. CAUTION - INVISIBLE LASER RADIATION WHEN OPEN, AVOID EXPOSURE TO BEAM. VARNING - OSYNLIG LASERSTRÄLNING NÄR DENNA DEL ÄR ÖPPNAD STRÄLEN ÄR FARLIG.
+5V/+12V power socket required Software Required OS Windows 98/2000 Professional/ME/XP(Home Edition/ Professional), Direct X 9.0 or Higher is required CD-R : LG, Mitsubishi Chemical, Verbatim, Taiyo Yuden, TDK or SKC CD-R, CD-RW, DVD-R, discs are recommended. DVD-RW, DVD+R, CD-RW : LG, Ricoh, Mitsubishi Chemical, Verbatim discs are recommended.

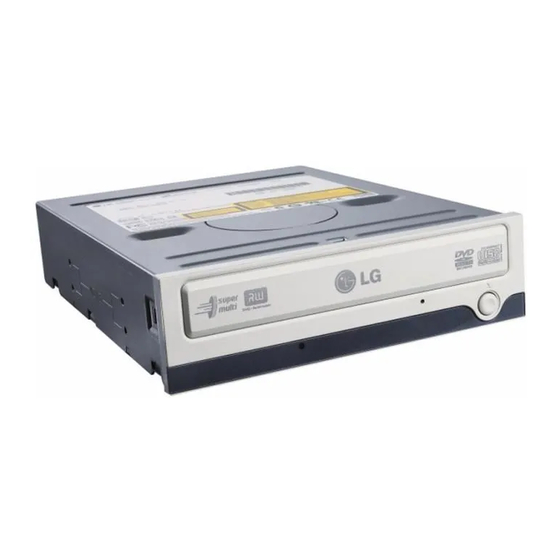

2. Emergency Eject Hole 3. Stop/Eject Button 4. Drive activity indicators The LED used to indicate the operation of Super Multi DVD Drive. Read: The green color is displayed during disc reading session. Write: The green color is flashed during disc writing sessions.(CD-R/RW, DVD-R/RW)
Installing the Drive Before installing the drive, please note the following points. I You will need the following: • A screw driver of a suitable size to fit the securing screws for the drive unit. • The manual for the computer, so you can find the mounting positions for the IDE controller cable.
For more details refer to the manual of your computer. PC Connection The Super Multi DVD Drive connects to the motherboard of the host computer using an IDE interface cable. You may connect the Super Multi DVD Drive as a Slave or Master device, depending on your computer.
Connect the 40-pin IDE cable to the back of the Super Multi DVD Drive, making sure the coloured (red) stripe on the IDE cable is connected to pin 1 on the Super Multi DVD drive (Pin 1 is closest to the Power Connector).
When using Windows 98/2000 Professional/Me/XP Home Edition/XP Professional, no special device driver is required. Your system, upon Power On and bootup after installing and connecting the new Super Multi DVD Drive, will recognize and load native software drivers automatically. Please consult the following internet sites: http://www.lgservice.com (then choose your country from the list)
How to Use the Discs When using CD-ROM discs, CD-R discs, DVD discs or CD-RW discs, don’t attach any stickers or labels to the discs. It could cause read and write errors, but data on the disc may be lost due to damage to the disc itself.
Troubleshooting Before Requesting Service Before calling for service, check this list. The drive doesn’t have power. • • Is the power supply cable from the host computer plugged in? • Is the Power Connector to the drive securely attached? The system doesn’t start. •...
Specifications Items General Supported Discs Disc Diameter Host Interface Read/Write Speed Mounting direction Performance Data transfer rate *Sustained *Burst(ATAPI) Average Access Time (Random) Buffer capacity MTBF Audio Output Line Output Environmental When operating Level When not operating Dimensions Dimensions (WxHxD) &...
550 MATHESON Blvd. East Mississauga. Ontario L4Z4G3 Canada LG Electronics Deutschland GMBH Jakob-Kaiser-Straße 12, D-47877 Willich, Germany LG Electronics U. K. Ltd. LG House, 264 Bath Road, Slough Berkshire SL1 4DT United Kingdom Goldstar France E.U.R.L Paris Nord II 22, Avenue des Nations-B.P.50372 VILLEPINTE...
