LG GSA-4165B Owner's Manual

Super multi dvd drive
Hide thumbs

Advertisement

Super Multi DVD Drive
GSA-4165B

Advertisement

Table of Contents
loading

  Also See for LG GSA-4165B

  Related Manuals for LG GSA-4165B

  Summary of Contents for LG GSA-4165B

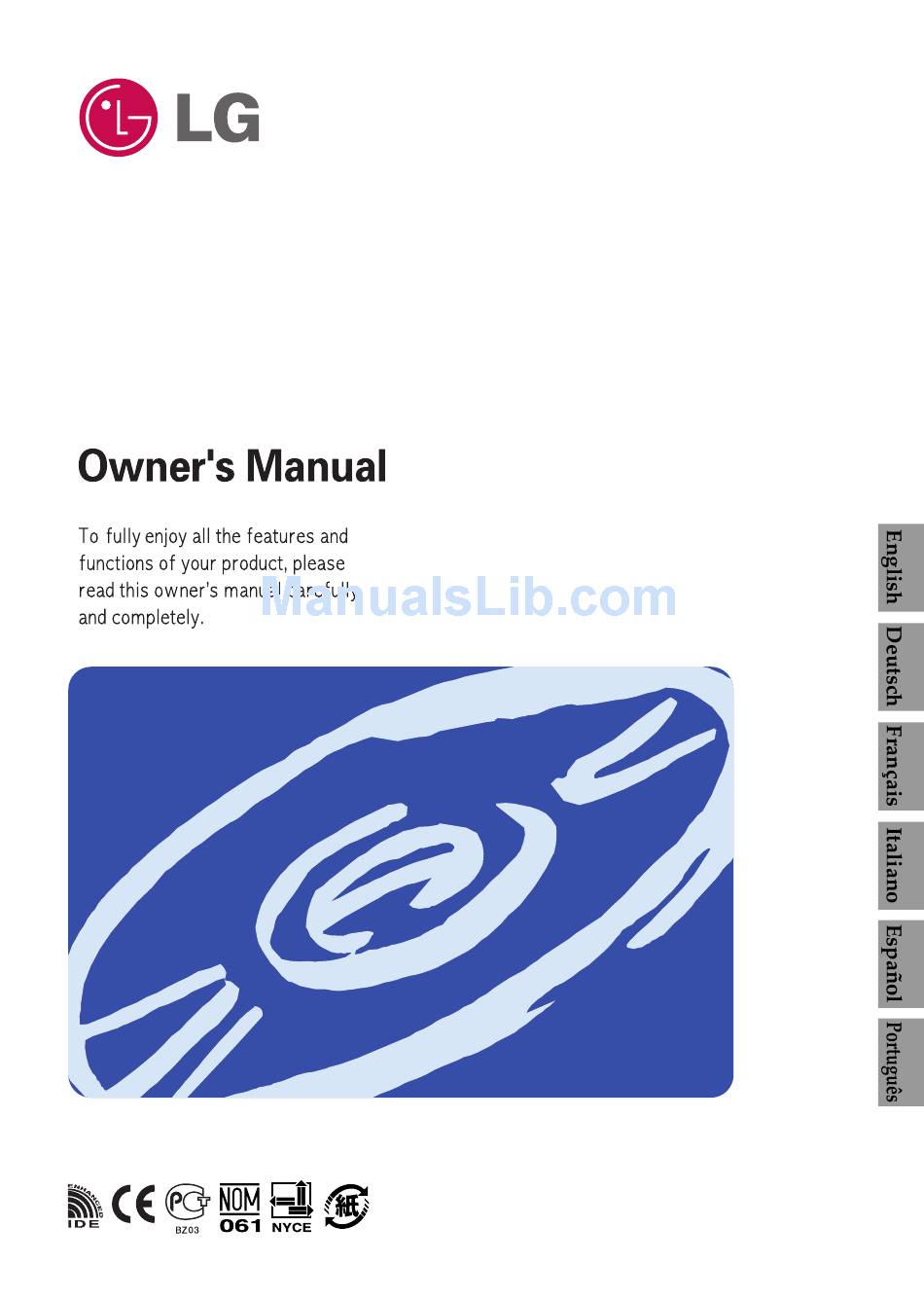

  • Page 1 Super Multi DVD Drive GSA-4165B...
  • Page 2 CAUTION : The laser used in the Super Multi DVD Drive can damage your eyes. Do not attempt to open the cover. To reduce the risk of electric shock, do not remove the cover (or back). There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
  • Page 3 This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC. CAUTION - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM. VARNING - OSYNLIG LASERSTRÄLNING NÄR DENNA DEL ÄR ÖPPNAD STRÄLEN ÄR FARLIG.
  • Page 4: Table Of Contents

    Contents Features ............1 Important Precautions .
  • Page 5: Important Precautions

    +5V/+12V power socket required Software Required OS Windows 2000 Professional/ME/XP(Home Edition/ Professional), Direct X 9.0 or Higher is required CD-R : LG, Mitsubishi Kagaku Media, Verbatim, Taiyo Yuden, TDK or CD-R, CD-RW, DVD-R, DVD-RW, DVD+R, SKC discs are recommended. DVD+RW, DVD-RAM, CD-RW : LG, Ricoh, Mitsubishi Kagaku Media, Verbatim discs are recommended.
  • Page 6: Location And Function Of Controls

    ❏ Occasionally CD-R and CD-RW discs written by a CD-R/RW drive cannot be read by other CD drives*. These unreadable discs may need to be read using the CD-R/RW drive they were created with The disc written using the CD-R/RW drive might not be readable by CD-ROMs other than Multi-read compatible (UDF compatible) CD-ROMs Multiread compatible (UDF compatible) CD-ROMs are: 1.
  • Page 7: Installing The Drive

    Installing the Drive Before installing the drive, please note the following points. ■ You will need the following: • A screw driver of a suitable size to fit the securing screws for the drive unit. • The manual for the computer, so you can find the mounting positions for the IDE controller cable.
  • Page 8: Pc Connection

    NOTE : Only one jumper should be installed on the jumper connector. If more than one jumper is installed, the drive may malfunction or be damaged. Master/Slave setting is determined by jumper installation on the Jumper Connector. The following table shows the possible jumper settings. Name Function Drive set as Master...
  • Page 9 To Install as a Slave Drive To install the drive as a Slave, change the jumper setting on the rear panel to SL. Master drive Master drive Master drive (Booting hard disk) (Booting hard disk) (Other IDE drive) Slave drive - OR - Slave drive (Super Multi...
  • Page 10: Device Drivers

    Connecting the Sound Card If the computer is using a sound card, the drive is connected to the sound card with an audio cable. The supplied analog audio cable fits most sound cards or one can be purchased at a local computer store. Refer to the manual for the sound card SELECT AUDIO OUT...
  • Page 11: How To Use The Discs

    How to Use the Discs When using CD-ROM discs, CD-R discs, DVD discs or CD-RW discs, don’t attach any stickers or labels to the discs. It could cause read and write errors, but data on the disc may be lost due to damage to the disc itself. The Discs in this unit operate at a very high speed! DO NOT use damaged, cracked or warped discs.
  • Page 12: Troubleshooting

    Troubleshooting Before Requesting Service Before calling for service, check this list. The drive doesn’t have power. • • Is the power supply cable from the host computer plugged in? • Is the Power Connector to the drive securely attached? The system doesn’t start. •...
  • Page 13: Specifications

    Specifications CD/DVD/CD-RW Items General Supported Discs DVD-ROM(Single/Dual), DVD-RW, DVD-R, DVD-R Dual layer, DVD+RW, DVD+R, DVD+R Double layer, DVD- RAM, CD-Digital Audio & CD-Extra, CD-Plus, CD-ROM, CD-ROM XA-Ready, CD-I FMV, CD-TEXT, CD-Bridge, CD-R, CD-RW, Photo-CD (Single & Multi-Session), Video CD, DVD-VIDEO 12cm/ 8cm Disc Diameter (8cm disc can be used only with drive placed horizontally.)
  • Page 14 D-47877 Willich, Germany 1. Take care not to use worn, cracked, damaged, warped or poor quality CD-ROMs, as this may LG Electronics U. K. Ltd. cause damage to your drive. LG House, 250 Bath Road, 2. Check the clear plastic on the center of the...

This manual is also suitable for:

Gsa-4167b
