Dimplex DF2608 Service Manual

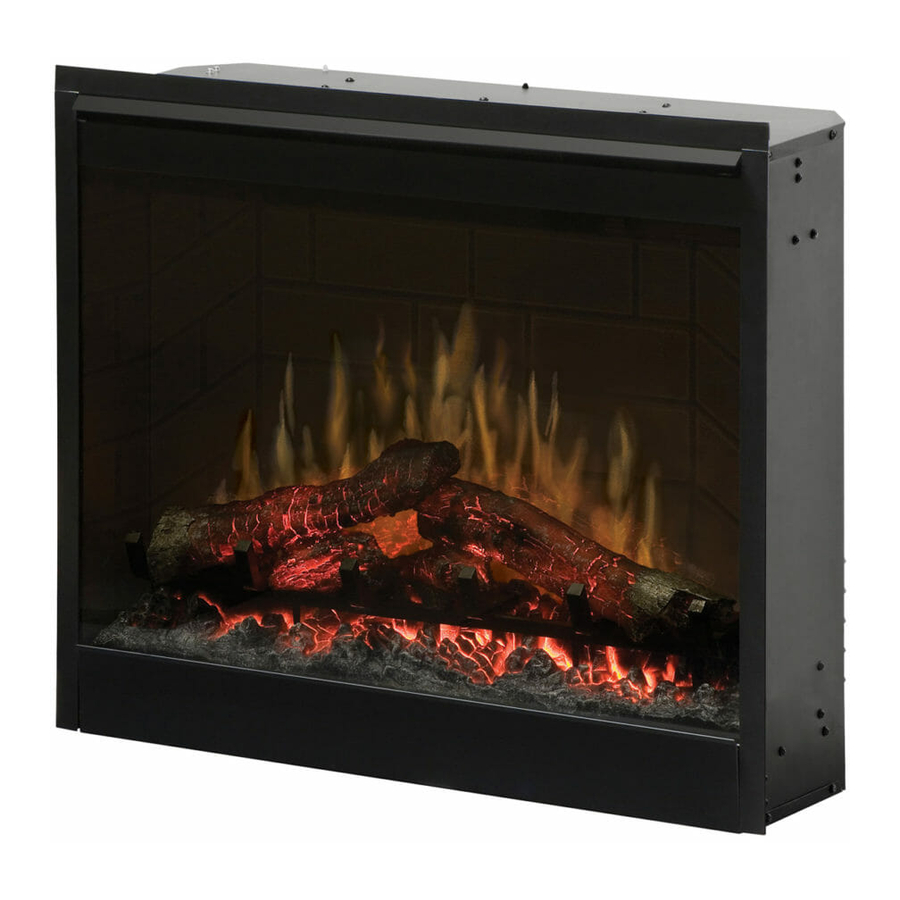

26” self trimming fireplace with integrated on/off remote
Hide thumbs
Also See for DF2608:
- Owner's manual (63 pages) ,
- Practical user's manual (20 pages) ,
- Service manual (18 pages)
Table of Contents
Advertisement
Quick Links
Service Manual
26" Self Trimming Fireplace with Integrated On/Off Remote
Model Numbers:
DF2608
- MOD / to A
DF2622
- MOD /
NBDF2608
Dimplex North America Limited
1367 Industrial Road
Cambridge ON Canada N1R 7G8
1-888-346-7539
www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
- MOD / to D
REV
PCN
DATE
00
11527
Jul 20, 09
01
11658
Oct 13, 09
02
11879
Feb 12, 10
03
Oct 3,11
7400200000R03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dimplex DF2608
Summary of Contents for Dimplex DF2608
- Page 1 11527 Jul 20, 09 11658 Oct 13, 09 11879 Feb 12, 10 Dimplex North America Limited 1367 Industrial Road Cambridge ON Canada N1R 7G8 Oct 3,11 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
-
Page 2: Table Of Contents
Log Driver Control Board Replacement (DF2608 only) ....... . . -
Page 3: Operation
Operation ! NOTE: The heater may emit a slight, harmless odor when first used. This odor is a normal condition caused This section will explain the function of each convenient by initial heating of internal heater parts and will not control (Figure 2). -
Page 4: Exploded Parts Diagram - Df2608/Nbdf2608
Exploded Parts Diagram - DF2608/NBDF2608 Replacement Parts List DF2608 Part Number 6904400359 Replacement Part: 1. Log Set ..... . . 0439560100RP 11. -
Page 5: Wiring Diagram - Df2608 / Nbdf2608
Wiring Diagram - DF2608 / NBDF2608 Cord Set Remote Control Receiver Heater On/Off Switch Three Position On/Off Light Dimmer Switch Control Log Set Driver Thermostat Heater Flame Action Assembly Control... -
Page 6: Exploded Parts Diagram - Df2622
Exploded Parts Diagram - DF2622 Replacement Parts List DF2622 Part Number 6904400659 Replacement Part: 1. Log Set ..... . . 0439560200RP 13. -
Page 7: Wiring Diagram - Df2622
Wiring Diagram - DF2622 Cord Set Remote Control Receiver Heater On/Off Switch Three Position On/Off Switch Light Dimmer Control Log Set Driver Thermostat Heater Assembly Flame Action Control... -
Page 8: Front Glass Replacement
Front Glass Replacement Upper Bulb Requirements: A quantity of two (2) chandelier or candelabra bulbs with an If unit was operating prior to servicing allow at least 10 E-12 (small) socket base, 15 Watt rating are required. minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. -
Page 9: Mirror Replacement
6. Pull the front edge of the plastic Ember Bed or plastic grate up and forward until the rear tab releases from 7. Disconnect LED harness (DF2608 only). the ledge located at the bottom of the Mirror. 8. Set Log Set Assembly in front of firebox. -
Page 10: Three Position On/Off Switch Replacement
Three Position On/Off Switch 4. Locate the Three Position On/Off Switch mounted on the control panel on the left side (Figure 9) and Replacement disconnect the three (3) wiring clips noting their original If the fireplace was operating prior to servicing allow at locations. -
Page 11: Light Dimmer Replacement
Wire 1: Dark orange wire from bottom terminal of switch to Potentiometer top, right terminal of Light Dimmer Log Driver (DF2608). Control Board Wire 2: Yellow wire from top terminal of Mounting Studs (4) switch to other side of Wire 1 Wire 2 firebox. -
Page 12: Flame Action Control Replacement
same within the unit being serviced as those shown. under the control panel; and two (2) screws on the To avoid damage to the unit, damage to property or bottom of the firebox (see Figure 8, page 10). The personal injury, ensure wires are reconnected to match bottom panel is now free to be removed. -
Page 13: Flicker Motor/Flicker Rod Replacement
Flicker Motor/Flicker Rod Replacement Figure 14 If the fireplace was operating prior to servicing allow at Mounting least 10 minutes for light bulbs and heating element to cool Screw off to avoid accidental burning of skin. Rubber Disconnect power before attempting any maintenance or Bushing cleaning to reduce the risk of electric shock or damage to persons. -
Page 14: Thermostat Control Replacement
board (Figure 12, page 12). 4. Locate the Thermostat Control mounted on the control panel on the right hand side (Figure 15) and disconnect viii) Reassemble firebox and replace in mantel. the two (2) wiring clips noting their original locations. 17. -
Page 15: Log Driver Control Board Replacement (Df2608 Only)
Studs (4) Log Driver Control Board Replacement Remote (DF2608 only) Control Receiver If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. -
Page 16: Heater Assembly Replacement
! NOTE: If mounting studs are damaged, replacement Figure 18 mounting studs will need to be inserted from Screws to Remove underneath the Log Set Assembly. Follow steps 1 - 6 of Mirror Replacement procedure on page 9 to do this. It is recommended to attempt to release the control board without cutting mounting studs. -
Page 17: Power Cord Replacement
4. Leave two (2) inches of slack in cord and secure in place with clamp. 9. Follow steps 1 through 3 in reverse order to re-asseble the firebox. © 2010 Dimplex North America Limited...
