Powerhouse PH2700PRi Owner's Manual
Digital inverter generator
Hide thumbs
Also See for PH2700PRi:
- Operating instructions manual (47 pages) ,
- Shop manual (71 pages) ,
- Quick start manual (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for Powerhouse PH2700PRi
Summary of Contents for Powerhouse PH2700PRi
-
Page 1: Ph2700Pri Digital Inverter Generator

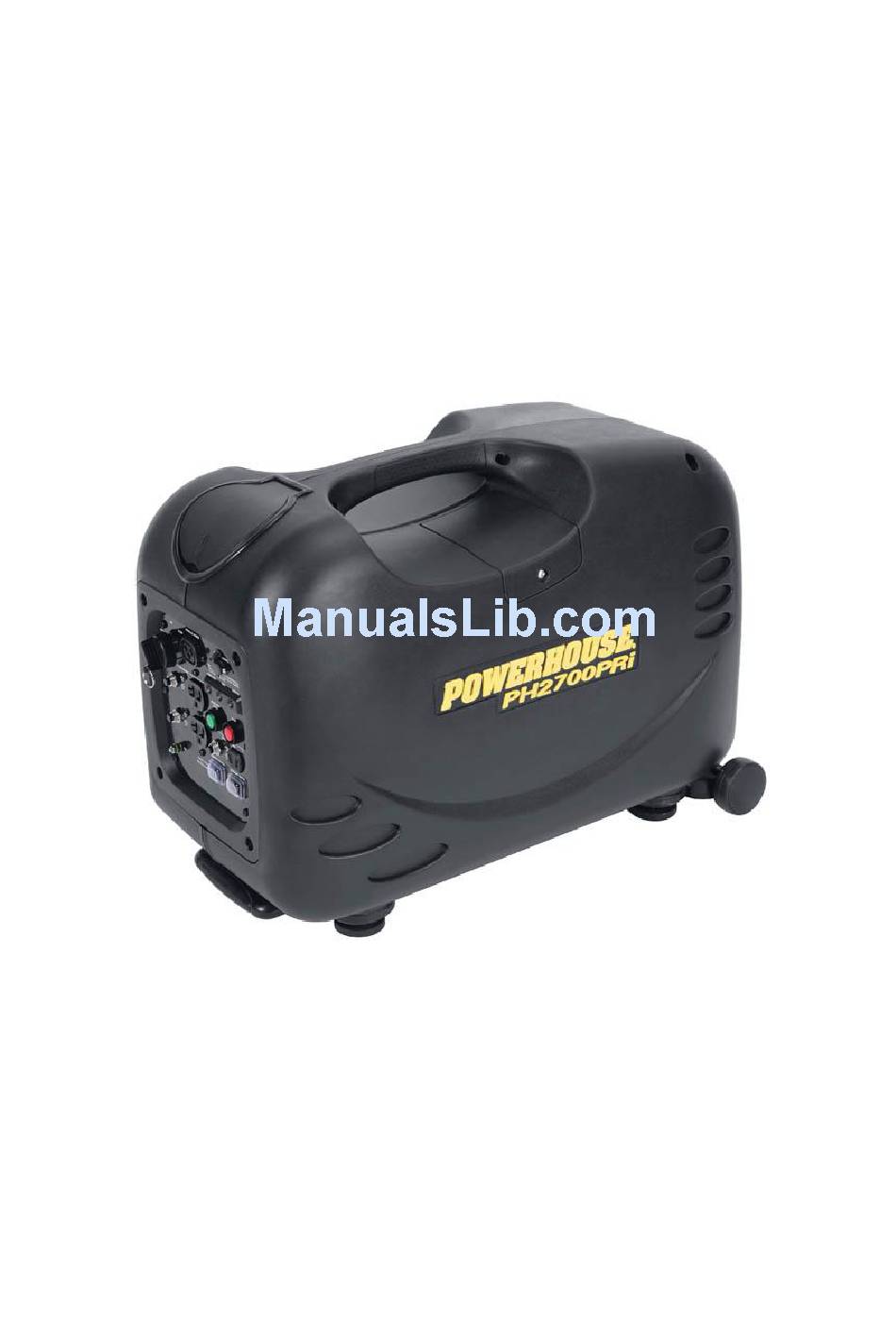

POWERHOUSE ® PH2700PRi Digital Inverter Generator OWNER’S MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE USING... -
Page 2: Quick Start
DC connector of the charger, allowing you to connect the clips to the terminals for ® batteries powering other equipment. For POWERHOUSE generators, for ease of use, it is suggested that you connect the T-style male plug to the DC receptacle on the control panel, rather than attempting to charge the generator battery directly. -
Page 3: Operation
Do not use the economy setting if you are connecting items with electric motors that have a high amperage draw during startup or with appliances that cycle on and off rapidly. PH2700PRi OM... -
Page 4: Shutdown
FCC INFORMATION Trade Name: Coast Distribution Inc. Model: PH2700PRi This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Preface
Gives helpful information. If you have a problem with this generator, do not return it to the store where you purchased it. For warranty support from 8am to 6pm ET call 877-544-4449, email us at warranty@powerhouse-products.com or send a fax to 800-263-0280 ... -
Page 6: Table Of Contents
CONTENTS PH2700PRi Digital Inverter Generator ........................... 1 QUICK START ................................2 Pre-Operation: ................................2 Operation: ................................... 3 Shutdown: ................................... 4 FCC INFORMATION............................... 4 Notice ..................................4 PREFACE ..................................5 1. SAFETY INSTRUCTIONS ............................8 To ensure safe operation ............................8 2. - Page 7 Tune Up Specifications ............................. 40 Dimensions ................................40 10. WARRANTY AND CONSUMER INFORMATION ....................41 POWERHOUSE® GENERATOR WARRANTY ......................41 CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT ................. 42 EMISSION CONTROL SYSTEM WARRANTY ......................43 11. APPENDIX B - EMISSION CONTROL SYSTEM ....................44 12.
-
Page 8: Safety Instructions
Do not operate the generator in rain or snow and do not let it get wet. Do not install this generator inside a compartment. Doing so may lead to overheating and consequently, fire. It may also lead to death by asphyxiation. Do not modify the enclosure of this generator. PH2700PRi OM... -
Page 9: Component Identification
2. COMPONENT IDENTIFICATION Gas Cap Access Cover Control Panel Retractable Handle Spark Plug Access Cover Maintenance Cover Starter Grip Primer Bulb Fuel Valve Battery Access Cover Wheels PH2700PRi OM... -
Page 10: Control Panel, Ph2700Pri
2.1 Control panel, PH2700PRI Parallel Socket Cover Parallel Communication Port Overload Indicator Ignition Light (Red) Switch Low Oil Alarm (Red) Run Light (Green) Stop Button (Red) 120V Circuit Breakers Overload Reset Button (Green) Battery Charge 120V - 20A Receptacle 12V - Duplex 8.3A... -
Page 11: Serial Number And Bar Code Identification And Location
Date of Purchase ________________________________ Name of Selling Dealership ________________________________ Please go to www.powerhouse-products.com/registration and register your unit today. Online registration will be accepted as proof of purchase. Online registration will make sure you are protected in the event you have lost your receipt, and will significantly speed the process in the event warranty service is necessary. -
Page 12: Pre-Operation Check
Use a high-detergent, premium quality, 4-stroke engine oil, certified to meet or exceed U.S. automobile manufacturer's requirements for API Service Classification SG/SF. Synthetic oil is approved for use in POWERHOUSE® generators, and is recommended for operating the generator in temperatures below 32° F. -
Page 13: Check The Fuel Level
If you notice any undesirable operating symptoms while using a gasoline that contains ethanol, or one that you think contains ethanol, replace it with a gasoline that you know has the proper blend. PH2700PRi OM... -
Page 14: Check The Air Cleaner
Never run the engine without the air cleaner element. Rapid engine wear will result from contaminants, such as dust and dirt, being drawn through the carburetor, into the engine. Air Cleaner Case Air Cleaner Element Air Cleaner Cover Screw Air Cleaner Screw Maintenance Cover PH2700PRi OM... -
Page 15: Connecting The Battery
1. To replace the battery, loosen the cover screw and remove the side maintenance door. 2. Connect the quick connect cable to the wiring harness, seat the battery and the battery clamp, then tighten the screw for the battery clamp. 3. Replace the maintenance door and tighten the door screws. PH2700PRi OM... -
Page 16: Operating Instructions
3. Move the remote selector switch to the “OFF” position. 4. Turn the ignition switch to the “START” position until the engine has started. Do not operate the starter for more than 10 seconds. Repeat if necessary. Primer Bulb Fuel Valve Remote Switch Remote Indicator Light (Blinking) PH2700PRi OM... -
Page 17: Manual Start
Do not allow the starter grip to snap back. Return it slowly by hand. Do not let the starter rope rub against the generator body or the rope will wear out prematurely. Primer Bulb Fuel Valve PH2700PRi OM... -
Page 18: Starting Procedure Using The Remote Function
Always place the remote switch on the control panel in the “OFF” position when not in use for an extended period of time, to prevent running down the battery. The remote indicator light will illuminate and flash if the remote switch is on while the generator is not running. PH2700PRi OM... -
Page 19: High Altitude Operation
0W-40 oil is no thinner than straight 40W. Do not operate the generator when the ambient temperature is below 0°F (-18°C). Do not operate the generator when the ambient temperature exceeds 113°F (45°C). (-18° C) (0° C) (45° C) PH2700PRi OM... -
Page 20: Generator Use
AC power is in use. If you use both at the same time, be sure not to exceed the total power for AC and DC. Most appliance motors require more than their rated wattage for start-up. PH2700PRi OM... -
Page 21: Ac Application
Be sure that all appliances are in good working order before connecting them to the generator. If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn off the generator engine switch immediately. Disconnect the appliance and examine it for signs of malfunction. PH2700PRi OM... -
Page 22: Output And Overload Lights
(green) remains on. This is not a problem as long as the overload light only flickers on briefly. Overload Light (Red) Run Light (Green) Overload Reset Button (Green) 120V - 20A Duplex Receptacle PH2700PRi OM... -
Page 23: Dc Application
If electrolyte gets in your eyes, flush with water for at least 15 minutes and call a physician immediately. Electrolyte is poisonous. If swallowed, drink large quantities of water or milk and follow with milk of magnesia or vegetable oil and call a physician immediately. KEEP OUT OF REACH OF CHILDREN. PH2700PRi OM... - Page 24 To power a DC device: 1. Start the generator and let it run for a few minutes to reach its normal operating temperature. 2. Turn off the Economy switch. 3. Plug in the DC device. PH2700PRi OM...
-
Page 25: Low Oil Alarm System
If the low oil alarm system shuts down the engine, the low oil alarm indicator light (red) will come on when you operate the starter and the engine will not run. If this occurs, add enough of the approved engine oil to raise the level to the top line on the dipstick. Low Oil Alarm (Red) PH2700PRi OM... -
Page 26: Economy Switch
“OFF” position when not in use for an extended period of time, to prevent running down the battery. The remote indicator light will illuminate and flash if the remote switch is on while the generator is not running. PH2700PRi OM... -
Page 27: Parallel Generator Operation (With Optional Kit # 69276)
1. Two separate PH2700PRi models can run in parallel to increase the total output to a maximum load of 5200 W (5000 W continual output). 2. You can also run a PH2700PRi and a PH2100PRi in parallel. The maximum output is 4200 W (4000 W continual output). -
Page 28: Maintenance
Carbon monoxide is a poisonous gas. The emission of fuel vapors is a source of pollution as well. The POWERHOUSE® generator engine utilizes a precise air-fuel ratio and emission control system to reduce the emissions of carbon monoxide, , hydrocarbons, and evaporative fuel emissions. - Page 29 Refer to the warranty section of this owner’s manual for more information. The air quality index label is designed to be permanently affixed to the generator and removal should not be attempted. (Sample image) PH2700PRi OM...
-
Page 30: Maintenance Schedule
(3) These items should be serviced by an authorized dealer unless the owner has the proper tools and is mechanically proficient. See the shop Manual. Service Period for Oil Changes Temperature Normal –100 hr 77°F (25°C) 95 hr 86°F (30°C) 85 hr 95°F (35°C) 70 hr 104°F (40°C) PH2700PRi OM... -
Page 31: Changing Oil
Recommended oil is SAE 15W-40 when ambient temperature is above 32° F (0° C). SAE 0W-40 is recommended if operating temperatures are below 32° F (0° C). Synthetic oil is approved for use in POWERHOUSE® generators, and is recommended for operating the generator in temperatures below 32° F. -
Page 32: Air Cleaner Service
5. Reinstall the air filter element and the air cleaner cover. Tighten the cover screws securely. 6. Reinstall the maintenance cover and tighten the screw securely. Air Cleaner Case Air Cleaner Element Air Cleaner Cover Screw Air Cleaner Screw Maintenance Cover PH2700PRi OM... -
Page 33: Spark Plug Maintenance
5. Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean the spark plug with a wire brush if it is to be reused. Spark Plug Access Cover Screw Spark Plug Wrench Screw Driver Spark Plug PH2700PRi OM... -
Page 34: Spark Arrestor Maintenance
3. Use a stiff wire brush to remove carbon deposits from the spark arrester screen. 4. Inspect the screen for holes, and replace it if necessary. 5. Reinstall the spark arrester. 6. Reinstall the muffler grill. Spark Arrestor M4 Screws Muffler Grill M6 Screws PH2700PRi OM... -
Page 35: Transporting & Storage
“OFF”. Avoid placing the generator in direct sunlight when storing. If the generator is left in an enclosed area or vehicle, high temperatures inside could cause residual fuel to vaporize resulting in possible explosion. PH2700PRi OM... -
Page 36: Infrequent Use
1/2 load (1300W) for 15 minutes per month. Gasoline fuel treatments to prevent contamination of your fuel supply are available from your dealer. Fuel varnishing necessitating replacement of the carburetor is not a warrantable failure. PH2700PRi OM... -
Page 37: Troubleshooting
POWERHOUSE® dealer. 3. Attach the plug side electrode to your ground wire. 4. Pull the recoil starter, sparks should jump across the gap. Ground Wire Spark Plug Spark Plug Wire PH2700PRi OM... -
Page 38: Engine Will Not Crank With Electric Or Remote Start
Charge or replace the battery. Is the battery dead? Check all electrical connections Take the generator to an authorized between battery, control panel and POWERHOUSE® service center. electric starter. 8.3 Appliance does not operate Is the circuit breaker “ON”? Reset the circuit... -
Page 39: No Output At The Dc Receptacle
8.4 No output at the DC receptacle Is the DC circuit breaker tripped? Reset the circuit breaker. Take the generator to an authorized POWERHOUSE® service center. PH2700PRi OM... -
Page 40: Specifications
Valve Clearance (Intake) 0.0039±0.0008 in (0.10±0.02mm) Valve Clearance (Exhaust) 0.0059±0.0008 in (0.15±0.02mm) Dimensions Overall dimension (H×W×D) in (mm) 17 X 22.8 X 13 in (432 x 579 x 330 mm) Dry weight, with battery 80 lb (36 Kg) PH2700PRi OM... -
Page 41: Warranty And Consumer Information
Proof of purchase and the serial number is required. Coverage Pre-approved parts and labor costs will be covered by POWERHOUSE® for any failure that is proven to be a failure in material or workmanship under normal use during the applicable warranty time period. This coverage is limited to parts, labor and ground shipping of repair parts. -
Page 42: California Emissions Control Warranty Statement
SOREs must be designed, built, and equipped to meet the State's stringent anti-smog standards. Coast Distribution System Inc. (POWERHOUSE®) must warrant the emissions control system on your SOREs for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your SOREs. -
Page 43: Emission Control System Warranty
EMISSION CONTROL SYSTEM WARRANTY Your POWERHOUSE® generator engine complies with U.S. Environmental Protection Agency, Environment of Canada, and the state of California (if the model is certified by CARB). The following systems and/or parts are covered by this warranty. Failures or improper operation of the following systems and components will be diagnosed and repaired with no charge for labor or parts. -
Page 44: Appendix B - Emission Control System
3. A catalyst is built into the muffler to further treat the engine exhaust. 4. A secondary air injection valve adds combustion air to ignite unburned fuel in the exhaust. Contact your authorized POWERHOUSE® service center to obtain the correct replacement parts and service on this system. -
Page 45: Appendix C - Safety And Charging Instructions
HAS A LARGER DIAMETER THAN A NEGATIVE (NEG, N, –) POST; iv. DETERMINE WHICH POST OF BATTERY IS GROUNDED (CONNECTED) TO THE CHASSIS. IF NEGATIVE POST IS GROUNDED TO CHASSIS (AS IN MOST VEHICLES), SEE ITEM (v). IF POSITIVE POST IS GROUNDED TO THE CHASSIS, SEE ITEM (vi); PH2700PRi OM... - Page 46 (p) THE GENERATOR (STATOR WINDING) IS ISOLATED FROM THE FRAME AND FROM THE AC RECEPTACLE GROUND PIN. (q) ELECTRICAL DEVICES THAT REQUIRE A GROUNDED RECEPTACLE PIN CONNECTION WILL NOT FUNCTION IF THE RECEPTACLE GROUND PIN IS NOT FUNCTIONAL. PH2700PRi OM...
