Page 1: Operating Instructions

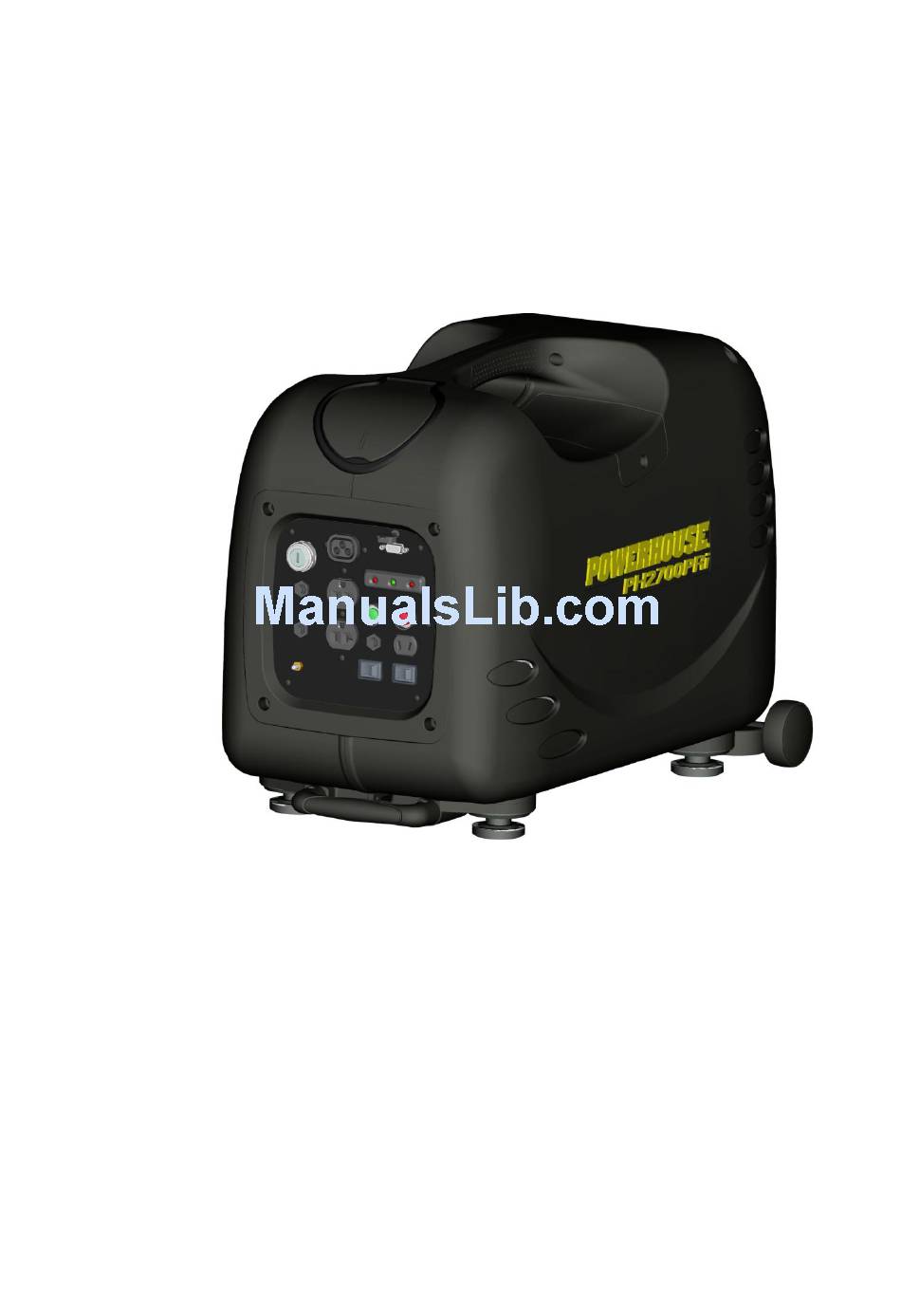

PH2700PRi Digital Inverter Generator Operating Instructions OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USING PH2700PRi OM revision 2010-10-07... -
Page 2: Quick Start
A. If the remote switch is OFF: Turn the ignition key to the STOP position. B. If the remote switch is ON: Push and hold the stop button on the remote or on the panel. PH2700PRi OM revision 2010-10-07... -
Page 3: Preface
PREFACE Thank you for purchasing a POWERHOUSE® generator. This manual covers the operation and maintenance of the POWERHOUSE® generator model PH2700PRi. All information in this publication is based on the latest product information available at the time of approval for printing. -
Page 4: Fcc Information
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. PH2700PRi OM revision 2010-10-07... -
Page 5: Table Of Contents
CONTENTS ................................5 1. SAFETY INSTRUCTIONS ..........................7 2. COMPONENT IDENTIFICATION ........................9 2.1 Control panel, PH2700PRI ......................... 10 2.2 Serial number and bar code identification and location ................11 3. PRE-OPERATION CHECK ..........................11 3.1 Check the engine oil level........................... 12 3.2 Check the fuel level. - Page 6 10. WARRANTY AND CONSUMER INFORMATION ..................42 POWERHOUSE® GENERATOR WARRANTY ....................42 CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT ..............43 EMISSION CONTROL SYSTEM WARRANTY ....................44 11. APENDIX B - EMISSION CONTROL SYSTEM ..................... 45 12. APENDIX C - SAFETY AND CHARGING INSTRUCTIONS ................46...
-
Page 7: Safety Instructions
Gasoline is extremely flammable and explosive under certain conditions. Refuel in a well ventilated area with the engine stopped. Keep away from cigarette smoke and sparks when refueling the generator. Wipe up spilled gasoline at once. PH2700PRi OM revision 2010-10-07... - Page 8 ■ Do not operate the generator in rain or snow and do not let it get wet. ■ Do not install this generator inside a compartment. Doing so may lead to overheating and consequently, fire. It may also lead to death by asphyxiation. ■ Do not modify the enclosure of this generator. PH2700PRi OM revision 2010-10-07...
-
Page 9: Component Identification
2. COMPONENT IDENTIFICATION Gas Cap Access Cover Control Panel Retractable Handle Spark Plug Access Cover Maintenance Cover Starter Grip Primer Bulb Fuel Lever Battery Access Cover Wheels PH2700PRi OM revision 2010-10-07... -
Page 10: Control Panel, Ph2700Pri
2.1 Control panel, PH2700PRI Cover Parallel Socket Parallel Communication Port Overload Indicator Ignition Light (Red) Switch Low Oil Alarm (Red) Run Light (Green) Stop Button 120V Circuit (Red) Breakers Overload Reset Button (Green) 2-120V ~ 20A Battery Charge Receptacles Receptacle 12V ~ 8.3A... -
Page 11: Serial Number And Bar Code Identification And Location
Online registration will make sure you are protected in the event you have lost your receipt, and will significantly speed the process in the event warranty service is necessary. For warranty assistance: Phone: 877-544-4449 Fax: 800-263-0280 E-mail: warranty@powerhouse-products.com PH2700PRi OM revision 2010-10-07... -
Page 12: Pre-Operation Check
The Low Oil Alarm System will automatically stop the engine before the oil level falls below a safe limit. However, to avoid the inconvenience of an unexpected shutdown, it is still advisable to visually inspect the oil level regularly. Upper Level Upper Level Lower Level Dipstick PH2700PRi OM revision 2010-10-07... -
Page 13: Check The Fuel Level
Fuel tank capacity: 1.4 gal (5.2 liters) Fuel Level Fuel Cap Fuel Strainer Gasoline containing alternate fuels Do not use a blend that contains more than 10% ethanol. Do not use gasoline containing methanol. Octane rating of 87 or higher is recommended. PH2700PRi OM revision 2010-10-07... -
Page 14: Check The Air Cleaner
■ Rapid engine wear will result from contaminants, such as dust and dirt being drawn through the carburetor into the engine. Air Cleaner Case Air Cleaner Element Air Cleaner Screw Cover Air Cleaner Screws Maintenance Cover PH2700PRi OM revision 2010-10-07... -
Page 15: Connecting The Battery
3.5 Battery Removal 1. To remove the battery for maintenance or replacement. 2. Loosen the cover screw and remove the battery access cover. 3. Unplug the battery and unhook the battery strap and slide out. Battery Strap PH2700PRi OM revision 2010-10-07... -
Page 16: Operating Instructions
3. Move the remote selector switch to the ―OFF‖ position. 4. Turn the ignition switch to the START position until the engine has started. Do not operate the starter for more than 10 seconds. Repeat if necessary. Primer Bulb Fuel Valve Remote Switch PH2700PRi OM revision 2010-10-07... -
Page 17: Manual Start
Fuel Valve ■ Do not allow the starter grip to snap back. Return it slowly by hand. ■ Do not let the starter rope rub against the generator body or the rope will wear out prematurely. PH2700PRi OM revision 2010-10-07... -
Page 18: Starting Procedure Using The Remote Function
The maximum operating range is 75’ based on a clear line of site. Always put the remote switch on the generator in the “OFF” position when not in use, to prevent running down the battery. PH2700PRi OM revision 2010-10-07... -
Page 19: High Altitude Operation
(5.5°C) increase in temperature above 85°F (29°C). The normal operating range of this generator is -20° to 113° F (-29° to 45°C). ■ Do not operate the generator when the ambient temperature is below -20°F (-29°C). ■ Do not operate the generator when the ambient temperature exceeds 113°F (45°C). PH2700PRi OM revision 2010-10-07... -
Page 20: Generator Use
When utility power is restored the generator may explode, burn, or cause fires in the building's electrical system. ■ Do not connect the generator to an automatic transfer device. Severe damage to the inverter module may result. PH2700PRi OM revision 2010-10-07... - Page 21 ■ The DC receptacle can be used while the AC power is in use. If you use both at the same time, be sure not to exceed the total power for AC and DC. ■ Most appliance motors require more than their rated wattage for start-up. PH2700PRi OM revision 2010-10-07...
-
Page 22: Ac Application
■ In order to ensure the optimum output and the maximum service life of the generator, the generator should run at a 50% load for the first 20 hours. PH2700PRi OM revision 2010-10-07... -
Page 23: Output And Overload Lights
■ When an electric motor is started, both the overload indicator light (red) and the output indicator light (green) may go on simultaneously. This is normal. Overload Light (Red) Overload Reset Button (Green) 2-120V ~ 20A Receptacles PH2700PRi OM revision 2010-10-07... -
Page 24: Dc Application
1. For DC operation, with the engine running, turn the Economy switch to the OFF position. 2. Connect the charging cables to the battery terminals first. 3. Connect the charging cables to the DC receptacle of the generator last. PH2700PRi OM revision 2010-10-07... - Page 25 ■ The DC receptacle may be used while the AC power is in use. ■ An overloaded DC circuit will trip the DC circuit breaker. If this happens reset the circuit breaker to resume operation. Battery Charge Circuit Breaker PH2700PRi OM revision 2010-10-07...
-
Page 26: Low Oil Alarm System
―OFF‖ position to reduce voltage fluctuation or shutdown. ■ In DC operation, turn the Economy switch to the ―OFF‖ position. Economy switch ―OFF‖: The system does not operate. Engine runs at the Continual load (RPM). Economy Switch PH2700PRi OM revision 2010-10-07... -
Page 27: Stopping The Engine
Continually stopping the generator with a load applied can lead to damage of the control module. Always put the remote switch in the “OFF” position when not in use, to prevent running down the battery. Stop PH2700PRi OM revision 2010-10-07... -
Page 28: Parallel Generator Operation (With Optional Kit # 69276)
1. Two separate PH2700PRi models can run in parallel to increase the total output to a maximum load of 5200 W (5000 W continual output). 2. You can also run a PH2700PRi and a PH2100PRi in parallel. The maximum output is 4200 W (4000 W continual output). -
Page 29: Maintenance
Carbon monoxide is a poisonous gas. The emission of fuel vapors is a source of pollution as well. The POWERHOUSE® generator engine utilizes a precise air-fuel ratio and emission control system to reduce the emissions of carbon monoxide, , hydrocarbons, and evaporative fuel emissions. - Page 30 You can trust the replacement parts supplied by POWERHOUSE® have been manufactured to the same production standard as the original parts. The use of replacement parts or accessories which are not designed by POWERHOUSE® may affect the engine emission performance.
-
Page 31: Maintenance Schedule
(3) These items should be serviced by an authorized dealer unless the owner has the proper tools and is mechanically proficient. See the shop Manual. Service Period for Oil Changes Temperature Normal –100 hr 77°F (25°C) 95 hr 86°F (30°C) 85 hr 95°F (35°C) 70 hr 104°F (40°C) PH2700PRi OM revision 2010-10-07... -
Page 32: Changing Oil
Lower Level Dipstick ■ Please dispose of used motor oil in a manner that is compatible with the environment and local disposal regulations. Do not throw it in the trash or pour it on the ground. PH2700PRi OM revision 2010-10-07... -
Page 33: Air Cleaner Service
5. Reinstall the air cleaner element and the air cleaner cover. Tighten the cover screws securely. 6. Reinstall the maintenance panel and tighten the screw securely. Air Cleaner Case Air Cleaner Element Air Cleaner Screw Cover Air Cleaner Screws Maintenance Cover PH2700PRi OM revision 2010-10-07... -
Page 34: Spark Plug Maintenance
Access Cover Screw 2. Remove the spark plug cap. 3. Clean any dirt from around the spark plug base. 4. Use the supplied wrench to remove the spark plug. Spark Plug Wrench Screw Driver Spark Plug Cap PH2700PRi OM revision 2010-10-07... - Page 35 11. Reinstall the spark plug maintenance cover. ■ The spark plug must be securely tightened. An improperly tightened plug can become very hot and possibly damage the generator. ■ Never use a spark plug with an improper heat range. PH2700PRi OM revision 2010-10-07...
-
Page 36: Spark Arrestor Maintenance
3. Use a stiff wire brush to remove carbon deposits from the spark arrester screen. 4. Inspect the screen for holes, and replace it if necessary. 5. Use a stiff wire brush to remove carbon deposits from the spark arrester screen. Spark Arrestor M4 Screws Muffler Grill M6 Screws PH2700PRi OM revision 2010-10-07... -
Page 37: Transporting & Storage
1/2 load (1300W) for 60 minutes per month. Gasoline fuel treatments to prevent contamination of your fuel supply are available from your dealer. Fuel varnishing necessitating replacement of the carburetor is not a warrantable failure. PH2700PRi OM revision 2010-10-07... -
Page 38: Before Storing The Unit For An Extended Period
Storing the engine in this position will help to protect it from internal corrosion. 12. Turn the remote switch to the ―OFF‖ position to prevent unwanted, unintentional cranking. 13. Once a month, recharge the battery. PH2700PRi OM revision 2010-10-07... -
Page 39: Troubleshooting
3. Attach the plug side electrode to your ground wire. 4. Pull the recoil starter, sparks should jump across the gap. If the engine still does not start, take it to an authorized Powerhouse dealer Ground Wire Spark Plug Spark Plug Wire PH2700PRi OM revision 2010-10-07... -
Page 40: Appliance Does Not Operate
■ Take electrical appliance or equipment to an electrical shop for repair. 8.3 No output at the DC receptacle: Reset the circuit breaker. Is the circuit breaker tripped? Take generator authorized Powerhouse service center. PH2700PRi OM revision 2010-10-07... -
Page 41: Specifications
Valve Clearance (Intake) 0.0039±0.0008 in (0.10±0.02mm) Valve Clearance (Exhaust) 0.0059±0.0008 in (0.15±0.02mm) Dimensions Overall dimension L×W×H in (mm) 22.8 x 13 x 17 in.(528 x 330 x 432 mm) Dry weight, with battery 80 lb (36 Kg) PH2700PRi OM revision 2010-10-07... -
Page 42: Warranty And Consumer Information
Proof of purchase and the serial number is required. Coverage Pre-approved parts and labor costs will be covered by POWERHOUSE® for any failure that is proven to be a failure in material or workmanship under normal use during the applicable warranty time period. This coverage is limited to parts, labor and ground shipping of repair parts. -
Page 43: California Emissions Control Warranty Statement
State's stringent anti-smog standards. Coast Distribution System Inc. (POWERHOUSE®) must warrant the emissions control system on your SOREs for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your SOREs. -
Page 44: Emission Control System Warranty
EMISSION CONTROL SYSTEM WARRANTY Your POWERHOUSE® generator engine complies with U.S. Environmental Protection Agency, Environment of Canada, and the state of California (if the model is certified by CARB). The following systems and/or parts are covered by this warranty. Failures or improper operation of the following systems and components will be diagnosed and repaired with no charge for labor or parts. -
Page 45: Apendix B - Emission Control System
3. A catalyst is built into the muffler to further treat the engine exhaust. 4. A secondary air injection valve adds combustion air to ignite unburned fuel in the exhaust. Contact your authorized POWERHOUSE® service center to obtain the correct replacement parts and service on this system. -
Page 46: Apendix C - Safety And Charging Instructions
CONNECT THE NEGATIVE (BLACK) CLIP TO VEHICLE CHASSIS OR ENGINE BLOCK AWAY FROM BATTERY. DO NOT CONNECT CLIP TO CARBURETOR, FUEL LINES, OR SHEET-METAL BODY PARTS. CONNECT TO A HEAVY GAUGE METAL PART OF THE FRAME OR ENGINE BLOCK; PH2700PRi OM revision 2010-10-07... - Page 47 (p) THE GENERATOR (STATOR WINDING) IS ISOLATED FROM THE FRAME AND FROM THE AC RECEPTACLE GROUND PIN. (q) ELECTRICAL DEVICES THAT REQUIRE A GROUNDED RECEPTACLE PIN CONNECTION WILL NOT FUNCTION IF THE RECEPTACLE GROUND PIN IS NOT FUNCTIONAL. PH2700PRi OM revision 2010-10-07...
