System Overview - Linear Encore User Manual

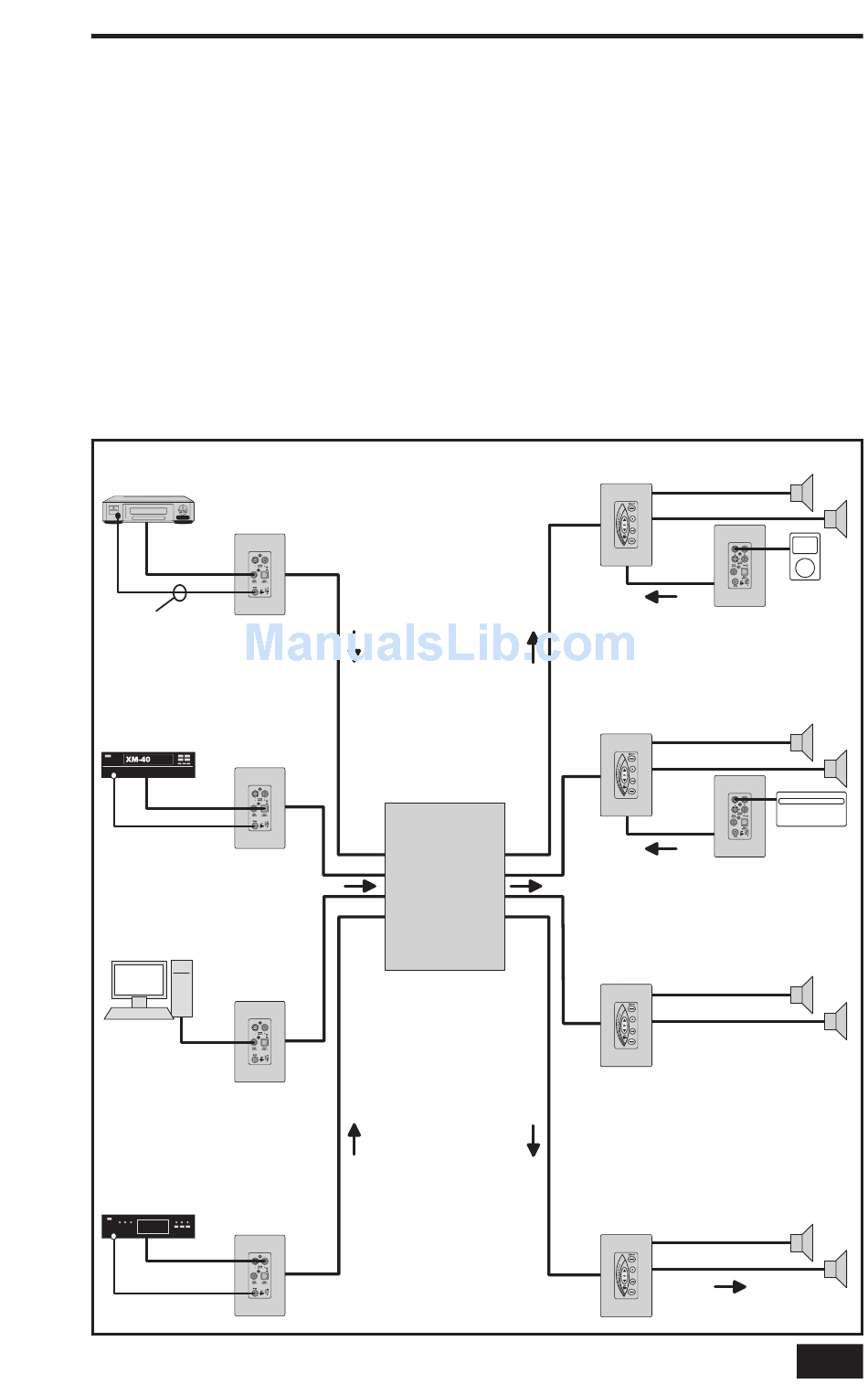

The diagram below shows how the
signals flow through your Multi-Room
Audio System.
Audio from the source components
enter the source input wall plates and
are routed to the system "hub". The
system hub is usually hidden in a
wiring cabinet.
The keypads also connect to the
system hub. Each keypad can select
any of the sources connected to the
hub.
CD PLAYER
SOURCE 1
IR EMITTER
SOURCE INPUT
TO SOURCE
WALL PLATE
COMPONENT
SATELLITE RADIO
SOURCE 2
SOURCE INPUT
WALL PLATE
SOURCE 3
COMPUTER
TUNES
SOURCE INPUT
WALL PLATE
STEREO
RECEIVER
SOURCE 4
EACH KEYPAD CAN PLAY AUDIO FROM
ANY OF THE FOUR SOURCES OR FROM A
LOCAL SOURCE IF AVAILABLE
AUDIO FROM
SOURCES
SYSTEM
HUB
HUB HIDDEN IN
WIRING CABINET
AUDIO FROM
SOURCES
SOURCE INPUT
WALL PLATE

System Overview

Each keypad connects to a pair of
stereo speakers. Each keypad has an
integrated built-in digital amplifier to
power its speakers.
All the audio signals, from the wall
plates to the hub, and from the hub to
the keypads are "digital". Any analog
audio sources connected to the wall
plates are converted to digital audio
signals. The digital signals provide
crystal clear sound to all zones with no
signal loss.
ZONE 1
KEYPAD
LOCAL AUDIO
AUDIO TO
KEYPADS
ZONE 2
KEYPAD
LOCAL AUDIO
ZONE 3
KEYPAD
AUDIO TO
KEYPADS
ZONE 4
KEYPAD
STEREO
SPEAKERS
LOCAL INPUT
SOURCE
WALL PLATE
STEREO
SPEAKERS
GAME
BOX
LOCAL INPUT
SOURCE
WALL PLATE
STEREO
SPEAKERS
STEREO
SPEAKERS
AMPLIFIED AUDIO
TO SPEAKERS
MP3
PLAYER
3
