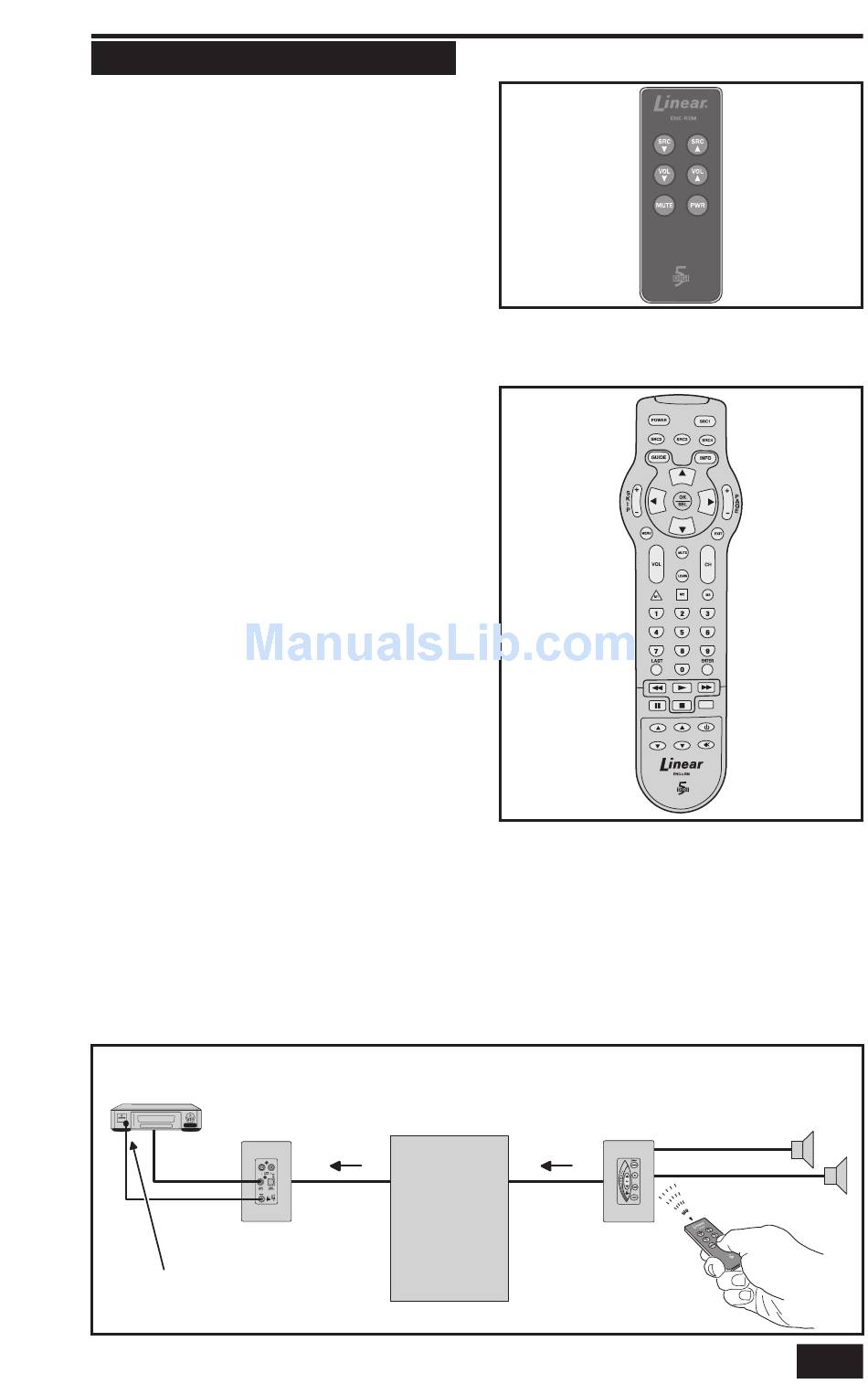

Remote Controls

Basic Remote

• The basic remote control can operate the
system's source selection, volume, mute,
and power.
• The basic remote control sends infrared
(IR) signals to the keypad that is being
controlled.
• For the best operation, be sure to
point the remote control directly at the
keypad.
• To change the keypad's source, press the
SRC ▲ or SRC ▼ buttons.
• To change the keypad's volume, press the
VOL ▲ or VOL ▼ buttons.
• To mute the keypad's sound, press the
MUTE button.
• To control the keypad's power, press the
PWR button.

Learning Remote

• The learning remote control performs all
the functions of the basic remote control,
plus all the other functions that can be
controlled by a keypad.
• Up to four source devices as well as your
audio distribution system can be operated
with the learning remote control.
• The learning remote control can "learn" IR
commands from other IR remote controls
and be programmed with up to three key
macros.
• For the best operation, be sure to
point the remote control directly at the
keypad.
• Refer to the instruction sheet packed with
the learning remote control for details on
its operation.
CD PLAYER
SOURCE INPUT
WALL PLATE
IR EMITTER ON SOURCE
COMPONENT FACE REPEATS
THE IR SIGNALS FROM THE
REMOTE CONTROL
INFRARED (IR) SIGNALS FROM REMOTE CONTROLS
POINTED AT A KEYPAD WILL BE SENT BACK
TO YOUR AUDIO SOURCE COMPONENTS
INFRARED
SIGNALS
SYSTEM
HUB
HUB HIDDEN IN
WIRING CABINET
System Operation
Basic Remote Control
Learning Remote Control
INFRARED
SIGNALS
KEYPAD
CONTROL YOUR COMPONENTS
FROM ANY KEYPAD LOCATION
ENC-REM
BASIC REMOTE
CONTROL
STEREO
SPEAKERS
