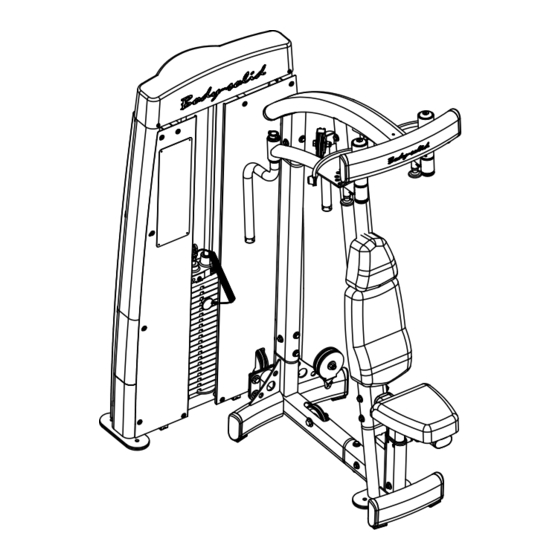

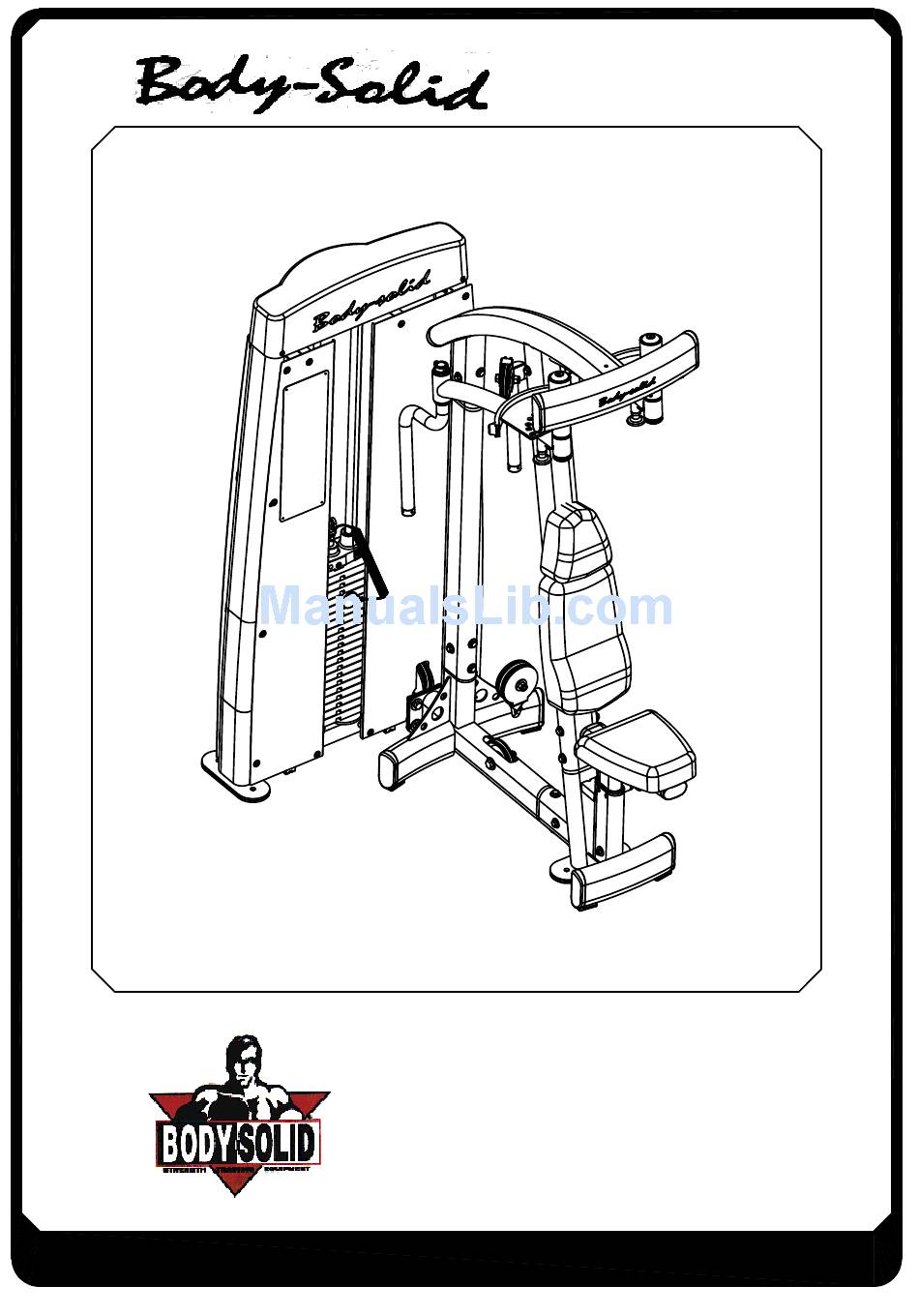

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DPEC.1 OWNER'S MANUAL...
- Page 2 HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1 1/2"L PARTIAL THREAD QTY.4 (A2)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1 (A3)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.1 (A4)ROUND ALLEN HEAD 5/16"x1 1/2"L PARTIAL THREAD QTY.2 (A5)HEX BOLT 5/16"x2 1/2"L PARTIAL THREAD QTY.2 Page DPEC.1-042007...
-
Page 3: Hardware Illustration
DPEC ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 5/16"x3 1/4"L PARTIAL THREAD QTY.4 Page DPEC.1-042007... - Page 4 (A11)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.20 Optional Purchase (A9)HEX BOLT M4X65L PARTIAL THREAD QTY.2 TOP CAP(9211-111) (C8)M4(I.D.)FLAT WASHER 12 QTY.2 TOP CAP(9211-119) "M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP Page DPEC.1-062007...
- Page 5 DPEC ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (A12)ELASTIC BOLT QTY.1 (A13)10LB PIN (8250-071) QTY.1 (A15)ROUND ALLEN HEAD 5/32"x1/4"L PARTIAL THREAD QTY.4 Page DPEC.1-042007...
- Page 6 DPEC ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C1)1/2"(I.D.)FLAT WASHER 34 QTY.4 (B1)NYLON LOCK NUT 1/2" QTY.6 (C2)5/16"(I.D.)FLAT WASHER 24 QTY.6 (C3)5/16" SPRING WASHER QTY.6 (C10)1/2"(I.D.)FLAT WASHER 25 QTY.8 Page DPEC.1-072007...
- Page 7 DPEC ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (B4)NYLON LOCK NUT 1/2" QTY.3 (C5)1/2"(I.D.)FLAT WASHER 34 QTY.4 (C6)3/8" SPRING WASHER QTY.1 (C7)M6(I.D.)FLAT WASHER 13 QTY.20 (C9)1/2"(I.D.)FLAT WASHER 25 QTY.2 Page DPEC.1-062007...
- Page 8 DPEC ASSEMBLY INSTRUCTIONS Selector Rod HARDWARE ILLUSTRATION (A16)ROUND ALLEN HEAD M10X30L PARTIAL THREAD QTY.1 (A17)FIRM SHEATH(8890-046) QTY.1 (B5)NYLON LOCK NUT M10 QTY.1 Page DPEC.1-042007...
- Page 9 D8.2"X2" RUBBER CANE CAP(9214-002)------------------------[1PCS] 3/4" SHAFT COLLAR(9211-046)------------------------------[2PCS] D10. 4" RUBBER DOUNT(9310-017)-----------------------------[2PCS] D11.95X250 RUBBER PAD(9310-060)----------------------------[3PCS] D12. 117 PULLEY(9213-010B)-------------------------------------[7PCS] D14.TOP PLATE(8400-006)------------------------------------------[1PCS] D15.3015mm STEEL CABLE(FDPECA)---------------------------[1PCS] D16.3220mm STEEL CABLE(FDPECB)---------------------------[1PCS] D17.1/2" BOLT CAP(9212-024)--------------------------------------[2PCS] D18.DPEC For DGYM Steel Cable(FDPECC)--------------------[1PCS] D19.WEIGHT SELECTOR BAR(8210-042B)----------------------[1PCS] 3220 3015 3015 Page DPEC.1-042007...
- Page 10 DPEC ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A[1PCS] B[1PCS] F[1PCS] C[2PCS] D[2PCS] G[1PCS] H[2PCS] Page DPEC.1-042007...
- Page 11 DPEC ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET I[1PCS] J[1PCS] K[2PCS] M[1PCS] L[1PCS] 8220-135 9111-058 9111-057 N[1PCS] AA[2PCS] 9121-055 8331-015 13.5 Page DPEC.1-042007...
- Page 12 DPEC ASSEMBLY INSTRUCTIONS FRAME PARTS ILLUSTRATION SHEET P[1PCS] O[1PCS] 8380-047 8380-046 Q[1PCS] R[2PCS] 8380-048 3/4"X1425L Z[1PCS] U[2PCS] V[9PCS] 9211-111A 8313-144 8321-040 both side 50.5 W[1PCS] 8321-040 T[1PCS] one side 6610-002 50.5 X[2PCS] Y[1PCS] 8321-040 9440-164 one side 50.5 Page DPEC.1-062007...
- Page 13 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M10 WASHER X6 M10X16L HEX BOLT X6 Page DPEC.1-042007...
- Page 14 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed M10X16L HEX BOLT X12 M10 WASHER X12 Page DPEC.1-042007...
- Page 15 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed M10X16 HEX BOLT X11 M10 WASHER X11 Page DPEC.1-042007...
- Page 16 Above shows STEP 4 assembled and completed M10X25L CONE BOLT X4 50 CAP X4 1/2"X2 1/4" HEX BOLT X2 1/2" WASHER 25 X2 1/2" NYLON LOCK NUT X2 # Repeat assembly for left side pulley 1/2" WASHER 25 X2 Page DPEC.1-042007...
- Page 17 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed 50XCAP M10X25L CONE BOLT Page DPEC.1-042007...
- Page 18 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed Press cap over cable end holder Page DPEC.1-042007...
- Page 19 DPEC ASSEMBLY INSTRUCTIONS Cable to match illustration 11.1 Page DPEC.1-042007...
- Page 20 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed Page DPEC.1-042007...
- Page 21 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed DPEC single weight stack assembly instructions M10X25L CONE BOLT X8 Page DPEC.1-042007...
- Page 22 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed Page DPEC.1-042007...
- Page 23 ASSEMBLY INSTRUCTIONS DPEC Above shows STEP 10 assembled and completed Page DPEC.1-042007...
- Page 24 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed assemble direction Ø10 cable wire head Selector Rod DETAIL VIEW Page DPEC.1-072007...
- Page 25 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP12 assembled and completed M6 WASHER X4 M6X20L ROUND BOLT X4 M6 WASHER M6X12 ROUND BOLT Page DPEC.1-062007...
- Page 26 DPEC ASSEMBLY INSTRUCTIONS DPEC DGYM DPEC Page DPEC.1-042007...
- Page 27 DPEC ASSEMBLY INSTRUCTIONS Cable to match illustration assemble direction Ø10 cable wire head Cable FOR DGYM only(D18) Selector Rod DETAIL VIEW Page DPEC.1-042007...
