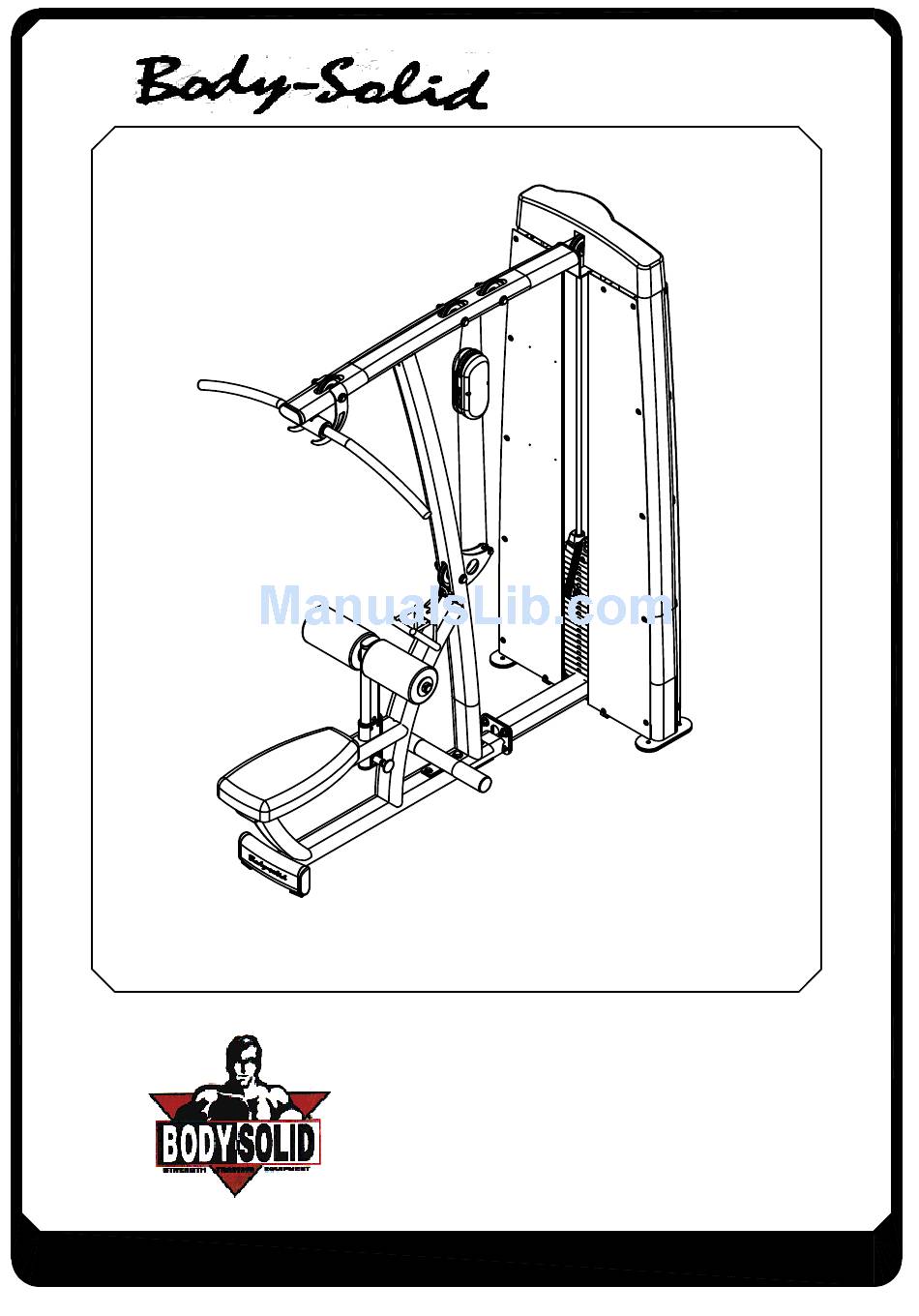

BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com
OWNER'S MANUAL
DLAT.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DLAT.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Body Solid DLAT.1

Summary of Contents for Body Solid DLAT.1

  • Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL DLAT.1...
  • Page 2 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1 1/4"L PARTIAL THREAD QTY.2 (A2)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.2 (A3)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 1/2"x4 1/4"L PARTIAL THREAD QTY.2 (A5)HEX BOLT 1/2"x5 1/2"L PARTIAL THREAD QTY.3 DLAT.1-042007 Page...

  • Page 3: Hardware Illustration

    DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.1 (A7)HEX BOLT 3/8"x2 1/4"L PARTIAL THREAD QTY.1 (A9)HEX BOLT 5/16"x3 1/4"L PARTIAL THREAD QTY.2 DLAT.1-042007 Page...
  • Page 4 HARDWARE ILLUSTRATION CONNECT DGYM (A10)HEX BOLT 1/2"x1 1/4"L PARTIAL THREAD QTY.4 (A11)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.1 (A21)ROUND ALLEN HEAD M10X75L PARTIAL THREAD QTY.2 (B1)NYLON LOCK NUT 1/2" QTY.5 (C12)M10(I.D.)FLAT WASHER 27 QTY.2 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.10 DLAT.1-042007 Page...
  • Page 5 (A15)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1 Optional Purchase (A14)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2 TOP CAP(9211-111) (C10)M4(I.D.)FLAT WASHER 12 QTY.2 TOP CAP(9211-119) "M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP DLAT.1-062007 Page...
  • Page 6 DLAT ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (A16)ELASTIC BOLT QTY.1 (A17)10LB PIN (8250-071) QTY.1 (A19)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.24 (A20)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4 Page DLAT.1-042007...
  • Page 7 DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C5)5/16"(I.D.)FLAT WASHER 24 QTY.2 (B2)NYLON LOCK NUT 1/2" QTY.10 (B3)NYLON LOCK NUT 3/8" QTY.1 (C6)5/16" SPRING WASHER QTY.2 (C13)1/2"(I.D.)FLAT WASHER 25 QTY.4 (C3)1/2"(I.D.)FLAT WASHER 34 QTY.17 (C4)3/8"(I.D.)FLAT WASHER 19 QTY.2 DLAT.1-042007 Page...
  • Page 8 DLAT ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (B5)NYLON LOCK NUT 1/2" QTY.1 (C8)1/2"(I.D.)FLAT WASHER 25 QTY.2 (C9)3/8" SPRING WASHER QTY.1 (C11)M6(I.D.)FLAT WASHER 13 QTY.24 DLAT.1-062007 Page...
  • Page 9 DLAT ASSEMBLY INSTRUCTIONS Selector Rod HARDWARE ILLUSTRATION (A22)ROUND ALLEN HEAD M10X30L PARTIAL THREAD QTY.1 (A23)FIRM SHEATH(8890-046) QTY.1 (B6)NYLON LOCK NUT M10 QTY.1 DLAT.1-042007 Page...
  • Page 10 60 END CAP(9211-065)-------------------------------------------[2PCS] D7.50X100(40X80)NYLON BUSHING(9211-107)-----------------[2PCS] D8.58X116X2.5T FOOT CAP(9211-108)----------------------------[2PCS] D9.COVER(9211-110)----------------------------------------------------[2PCS] D10.58X116 END CAP(9211-112)------------------------------------[2PCS] D11.40X80 END CAP(9211-113)--------------------------------------[2PCS] D12. 3" Nylon Washer (9214-008)-------------------------------------[4PCS] D13. 1"x2.5t Round End Cap(9260-021)--------------------------[2PCS] D14. 3/4" SHAFT COLLAR(9211-046)------------------------------[2PCS] D15. 2 1/2"X19.2X19.4T RUBBER DOUNT(9310-010)---------[2PCS] D16.95X140L RUBBER PAD(9310-035)-----------------------------[2PCS] D17.95X250 RUBBER PAD(9310-060)-------------------------------[2PCS] Page DLAT.1-062007...
  • Page 11 DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D18. 117 PULLEY(9213-010B)-----------------------------------------[8PCS] D19.TOP PLATE(8400-006)----------------------------------------------[1PCS] D21.1975mm STEEEL CABLE(FDLATA)------------------------------[1PCS] D22.3250mm STEEL CABLE(FDLATB)--------------------------------[1PCS] D23.DLAT For DGYM Steel Cable(FDLATC)-------------------------[1PCS] D24.150X250L RUBBER PAD(9310-036)-----------------------------[1PCS] D25.WEIGHT SELECTOR BAR(8210-042B)-------------------------[1PCS] 1975 1975 3250 Page DLAT.1-042007...
  • Page 12 DLAT ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] A1[1PCS] C[1PCS] E[1PCS] D[1PCS] F[1PCS] G[1PCS] H[2PCS] I[1PCS] CONNECT DGM K[1PCS] L[1PCS] J[1PCS] 20LB1200D 1"X600L 8313-130 Page DLAT.1-042007...
  • Page 13 DLAT ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET M[1PCS] N[1PCS] O[2PCS] P[1PCS] 8343-146 8343-147 8343-140 8290-001 Q[1PCS] R[2PCS] 9161-021B 9121-054 150X250L Page DLAT.1-042007...
  • Page 14 DLAT ASSEMBLY INSTRUCTIONS FRAME PARTS ILLUSTRATION SHEET S[1PCS] T[1PCS] 6610-001 8380-044 U[1PCS] V[1PCS] 8380-052 8380-045 Z[1PCS] W[2PCS] 3/4"X1932L 9440-165 AA[12PCS] 8321-040 AC[1PCS] both side 9211-119A 50.5 AB[2PCS] 8321-040 one side Y[2PCS] 8313-144 50.5 Page DLAT.1-062007...
  • Page 15 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed 3/8"X1"L HEX BOLT X2 3/8" WASHER X2 Page DLAT.1-042007...
  • Page 16 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed 1/2"X1-1/4" HEX BOLT X2 1/2" WASHER X2 1/2"X2-3/4" HEX BOLT X2 1/2" WASHER X2 Page DLAT.1-042007...
  • Page 17 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed DLAT single weight stack assembly instructions M10X25L CONE BOLT X8 Page DLAT.1-042007...
  • Page 18 DLAT ASSEMBLY INSTRUCTIONS 1/2"X3/4"L HEX BOLT X2 1/2" WASHER X2 Above shows STEP 4 assembled and completed M10X25L HEX BOLT X2 M10 WASHER X2 5/16"X5/16" SCREW Page DLAT.1-042007...
  • Page 19 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed Page DLAT.1-042007...
  • Page 20 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed Page DLAT.1-042007...
  • Page 21 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed D18 D18 Page DLAT.1-042007...
  • Page 22 DLAT ASSEMBLY INSTRUCTIONS Cable to match illustration assemble direction assemble direction Ø10 cable wire head Selector Rod DETAIL VIEW 14.1 Page DLAT.1-042007...
  • Page 23 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed M5X10L HEX BOLT X4 DETAIL VIEW Page DLAT.1-042007...
  • Page 24 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed 5/16"X5/16" SCREW 5/16"X5/16" SCREW Page DLAT.1-042007...
  • Page 25 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed M6 WASHER X4 M6X20L ROUND BOLT X4 M6 WASHER x21 M6X12L ROUND BOLT x21 Page DLAT.1-062007...
  • Page 26 DLAT ASSEMBLY INSTRUCTIONS Cable to match illustration assemble direction assemble direction CABLE FOR DGYM ONLY Ø10 cable wire head Selector Rod DETAIL VIEW 17.1 Page DLAT.1-042007...
  • Page 27 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed 1/2" WASHER X2 1/2"X1 1/4" HEX BOLT X2 Page DLAT.1-042007...
  • Page 28 DLAT ASSEMBLY INSTRUCTIONS DGYM Page DLAT.1-042007...
