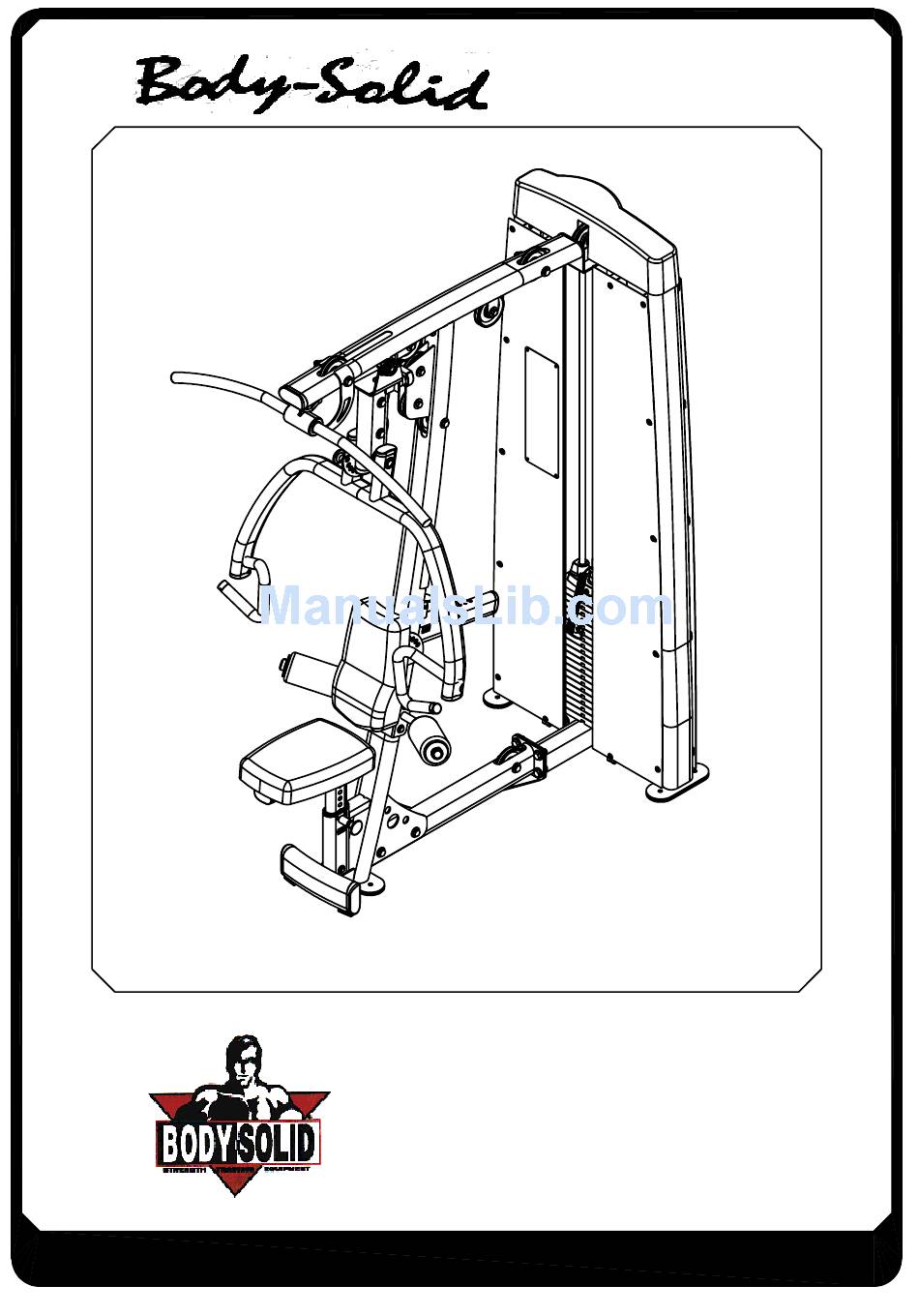

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DPLS OWNER'S MANUAL...
- Page 2 DPLS ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1 1/4"L PARTIAL THREAD QTY.2 (A2)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.4 (A3)HEX BOLT 1/2"x3"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 1/2"x3 1/2"L PARTIAL THREAD QTY.2 (A5)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.3 Page...
- Page 3 DPLS ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 1/2"x5 1/2"L PARTIAL THREAD QTY.2 (A7)HEX BOLT 1/2"x6"L PARTIAL THREAD QTY.1 (A8)HEX BOLT 5/16"x1"L PARTIAL THREAD QTY.4 (A9)HEX BOLT 5/16"x2 1/4"L PARTIAL THREAD QTY.2 HARDWARE ILLUSTRATION CONNECT DGYM (A10)ROUND ALLEN HEAD M10X75L PARTIAL THREAD QTY.2...
- Page 4 ASSEMBLY INSTRUCTIONS DPLS FRAME HARDWARE ILLUSTRATION (A11)ALLEN SCREW 5/16"X3/8"L FULL THREAD QTY.3 (A12)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1 (A13)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2 (A14)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1 (A15)HEX BOLT 1/2"x4 1/4"L PARTIAL THREAD QTY.1 Page...
- Page 5 ASSEMBLY INSTRUCTIONS DPLS FRAME HARDWARE ILLUSTRATION (A16)ELASTIC BOLT QTY.1 (A17)10LB PIN (8250-071) QTY.1 (A18)WEIGHT STACK CABLE (8260-009) QTY.1 (A19)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.24 (A20)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4 Page DPLS-102006...
-
Page 6: Hardware Illustration
DPLS ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION HARDWARE ILLUSTRATION CONNECT DGYM (B1)NYLON LOCK NUT 1/2" QTY.17 (C5)M10(I.D.)FLAT WASHER 27 QTY.2 (C1)1/2"(I.D.)FLAT WASHER 25 QTY.2 (C2)1/2"(I.D.)FLAT WASHER 34 QTY.32 (C3)5/16"(I.D.)FLAT WASHER 24 QTY.6 (C4)5/16" SPRING WASHER QTY.6 Page DPLS-102006... - Page 7 DPLS ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (B2)NYLON LOCK NUT 1/2"X13UNCX8T QTY.1 (C9)M4(I.D.)FLAT WASHER 12 QTY.2 (B3)NYLON LOCK NUT 1/2" QTY.1 (C10)M6(I.D.)FLAT WASHER 13 QTY.24 (C6)1/2" SPRING WASHER QTY.1 (C7)1/2"(I.D.)FLAT WASHER 25 QTY.2 (C8)3/8" SPRING WASHER QTY.1 Page DPLS-102006...
- Page 8 DPLS ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION 3/4"X16L STEEL BUSHING (8110-066)---------------------[6PCS] 3/4"X45L STEEL BUSHING (8110-067)---------------------[6PCS] 8 SPRING SNAP LINK(8810-001)-----------------------------[1PCS] D5. 25x50 End Cap (9211-086)----------------------------------------[2PCS] D6.50X100(40X80)NYLON BUSHING(9211-107)-----------------[2PCS] D7.58X116X2.5T FOOT CAP(9211-108)----------------------------[2PCS] D8.58X116 END CAP(9211-112)--------------------------------------[2PCS] D9.40X80 END CAP(9211-113)----------------------------------------[5PCS] D10. 1"x2.5t Round End Cap(9260-021)--------------------------[2PCS] D11. 3/4" SHAFT COLLAR(9211-046)------------------------------[2PCS] D12.
- Page 9 DPLS ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D17.8365mm STEEL CABLE(FDPLSA)--------------------------------[1PCS] D18.DPLS For DGYM Steel Cable 8645mm(FDPLSB)-------------[1PCS] D19. 1" SHAFT COLLAT(8130-024)-----------------------------------[2PCS] D20. 3" Nylon Washer (9214-008)---------------------------------------[2PCS] D21. 1" END CAP(9211-016)--------------------------------------------[2PCS] 8645 8365 Page DPLS-102006...
- Page 10 DPLS ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] C[1PCS] A[1PCS] D[1PCS] E[1PCS] F[1PCS] I[1PCS] G[1PCS] N[1PCS] M[1PCS] J[1PCS] K[1PCS] L[1PCS] 9121-057 9111-058 S[1PCS] R[1PCS] O[2PCS] Q[1PCS] P[1PCS] 8343-147 8343-146 8220-137 9161-032 8313-130 20X160L Page DPLS-102006...
- Page 11 DPLS ASSEMBLY INSTRUCTIONS FRAME PARTS ILLUSTRATION SHEET T[1PCS] U[1PCS] 6610-001 8380-044 V[1PCS] W[1PCS] 8380-052 8380-045 AC[1PCS] X[2PCS] 3/4"X1932L 9440-168 AA[12PCS] 8321-040 Y[1PCS] both side 9211-119 50.5 AB[2PCS] 8321-040 one side Z[2PCS] 8313-144 50.5 Page DPLS-102006...
- Page 12 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M10 WASHER X6 M10X25L HEX BOLT X6 1/2" WASHER X2 1/2"X1 1/4" HEX BOLT X2 Page DPLS-102006...
- Page 13 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed DPLS single weight stack assembly instructions M10X25L CONE BOLT X8 Page DPLS-102006...
- Page 14 DPLS ASSEMBLY INSTRUCTIONS 1/2"X3/4"L HEX BOLT X2 1/2" WASHER X2 Above shows STEP 3 assembled and completed 輔助視圖 A M10X25L HEX BOLT X2 M10 WASHER X2 Page DPLS-102006...
- Page 15 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed Page DPLS-102006...
- Page 16 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed Page DPLS-102006...
- Page 17 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed B1 C2 Page DPLS-102006...
- Page 18 DPLS ASSEMBLY INSTRUCTIONS ALLEN SCREW 5/16"X5/16"L X2 Ø1"X180L SHAFT Above shows STEP 7 DETAIL VIEW assembled and completed Page DPLS-102006...
- Page 19 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed Page DPLS-102006...
- Page 20 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed 5/16"X5/16"L SCREW 5/16"X5/16"L SCREW Page DPLS-102006...
- Page 21 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed M6 WASHER M6X12L ROUND BOLT Page DPLS-102006...
- Page 22 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed 15.1 Page DPLS-102006...
- Page 23 DPLS ASSEMBLY INSTRUCTIONS Above shows STEP 12 assembled and completed 1/2" WASHER X2 1/2"X1 1/4" HEX BOLT X2 Page DPLS-102006...
- Page 24 DPLS ASSEMBLY INSTRUCTIONS Cable to match illustration Cable for DGYM only 16.1 Page DPLS-102006...
- Page 25 DPLS ASSEMBLY INSTRUCTIONS DGYM Page DPLS-102006...
