BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com

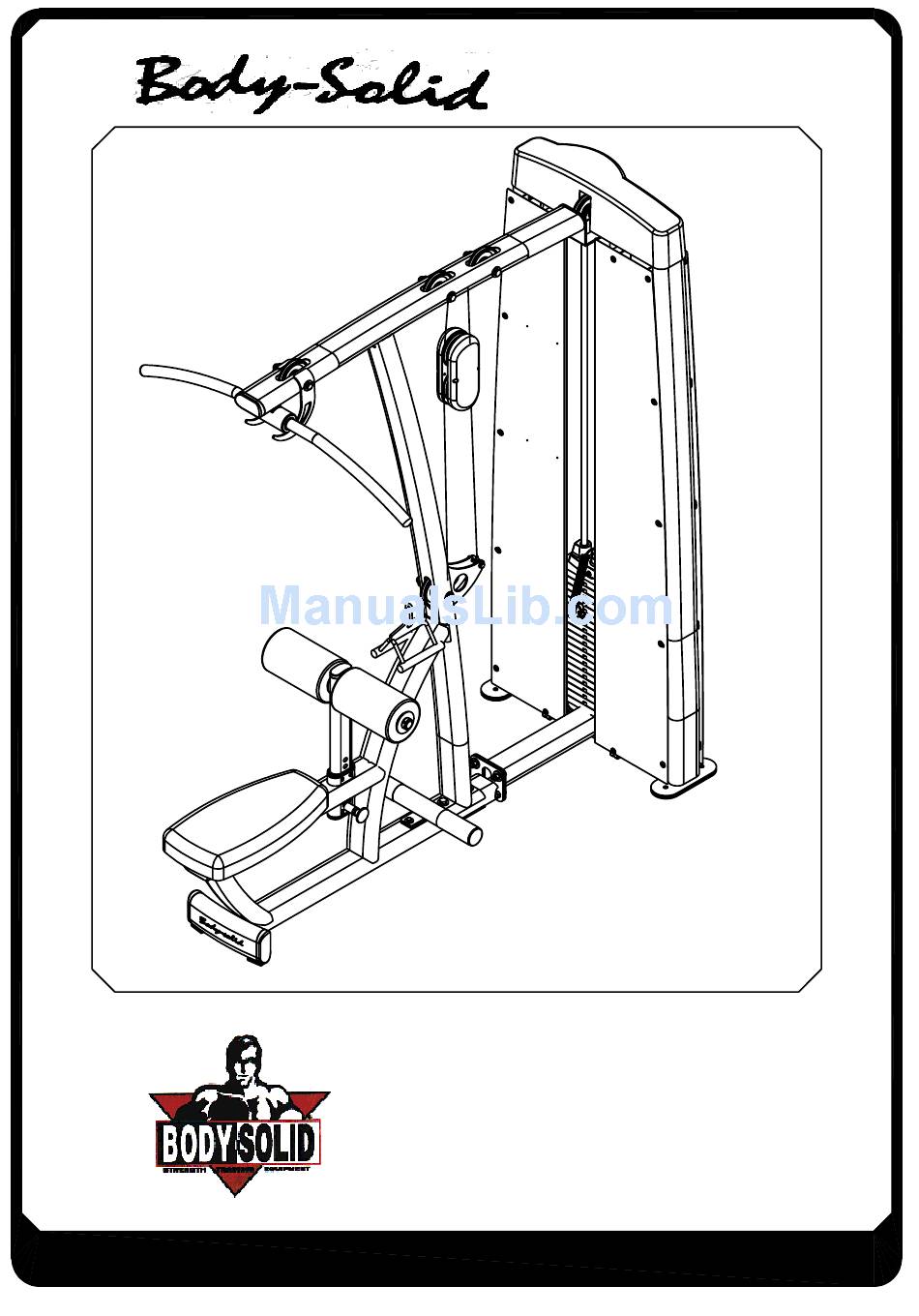

OWNER'S MANUAL
DLAT

Advertisement

loading
Need help?

Need help?

Do you have a question about the DLAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Body Solid DLAT

Summary of Contents for Body Solid DLAT

  • Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL DLAT...
  • Page 2 DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1 1/4"L PARTIAL THREAD QTY.2 (A2)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.2 (A3)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 1/2"x4 1/4"L PARTIAL THREAD QTY.2 (A5)HEX BOLT 1/2"x5 1/2"L PARTIAL THREAD QTY.3 DLAT-102006...

  • Page 3: Hardware Illustration

    DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.1 (A7)HEX BOLT 3/8"x2 1/4"L PARTIAL THREAD QTY.1 (A9)HEX BOLT 5/16"x3 1/4"L PARTIAL THREAD QTY.2 DLAT-102006 Page...
  • Page 4 DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION CONNECT DGYM (A10)HEX BOLT 1/2"x1 1/4"L PARTIAL THREAD QTY.4 (A11)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.1 (A21)ROUND ALLEN HEAD M10X75L PARTIAL THREAD QTY.2 (B1)NYLON LOCK NUT 1/2" QTY.5 (C12)M10(I.D.)FLAT WASHER 27 QTY.2 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.10...
  • Page 5 ASSEMBLY INSTRUCTIONS DLAT FRAME HARDWARE ILLUSTRATION (A12)ALLEN SCREW 5/16"X3/8"L FULL THREAD QTY.3 (A13)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1 (A14)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2 (A15)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1 DLAT-102006 Page...
  • Page 6 DLAT ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (A16)ELASTIC BOLT QTY.1 (A17)10LB PIN (8250-071) QTY.1 (A18)WEIGHT STACK CABLE (8260-009) QTY.1 (A19)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.24 (A20)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4 Page DLAT-102006...
  • Page 7 DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C5)5/16"(I.D.)FLAT WASHER 24 QTY.2 (B2)NYLON LOCK NUT 1/2" QTY.10 (B3)NYLON LOCK NUT 3/8" QTY.1 (C6)5/16" SPRING WASHER QTY.2 (C3)1/2"(I.D.)FLAT WASHER 34 QTY.21 (C4)3/8"(I.D.)FLAT WASHER 19 QTY.2 DLAT-102006 Page...
  • Page 8 DLAT ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (B4)NYLON LOCK NUT 1/2"X13UNCX8T QTY.1 (C10)M4(I.D.)FLAT WASHER 12 QTY.2 (B5)NYLON LOCK NUT 1/2" QTY.1 (C11)M6(I.D.)FLAT WASHER 13 QTY.24 (C7)1/2" SPRING WASHER QTY.1 (C8)1/2"(I.D.)FLAT WASHER 25 QTY.2 (C9)3/8" SPRING WASHER QTY.1 DLAT-102006 Page...
  • Page 9 DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION 3/4"X16L STEEL BUSHING (8110-066)---------------------[2PCS] 3/4"X45L STEEL BUSHING (8110-067)---------------------[8PCS] 1" SHAFT COLLAT(8130-024)----------------------------------[2PCS] 8 SPRING SNAP LINK(8810-001)------------------------------[2PCS] 1" END CAP(9211-016)-------------------------------------------[2PCS] 60 END CAP(9211-065)-------------------------------------------[2PCS] D7.50X100(40X80)NYLON BUSHING(9211-107)-----------------[2PCS] D8.58X116X2.5T FOOT CAP(9211-108)----------------------------[2PCS] D9.COVER(9211-110)----------------------------------------------------[2PCS] D10.58X116 END CAP(9211-112)------------------------------------[2PCS] D11.40X80 END CAP(9211-113)--------------------------------------[2PCS] D12. 3" Nylon Washer (9214-008)-------------------------------------[4PCS] D13.
  • Page 10 DLAT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D18. 117 PULLEY(9213-010B)-----------------------------------------[8PCS] D19.TOP PLATE(8400-006)----------------------------------------------[1PCS] D20.WEIGHT SELECTOR BAR(8210-042)---------------------------[1PCS] D21.1975mm STEEEL CABLE(FDLATA)------------------------------[1PCS] D22.3270mm STEEL CABLE(FDLATB)--------------------------------[1PCS] D23.DLAT For DGYM Steel Cable(FDLATC)-------------------------[1PCS] 1975 1975 3270 Page DLAT-102006...
  • Page 11 DLAT ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] A[1PCS] C[1PCS] E[1PCS] D[1PCS] F[1PCS] G[1PCS] H[2PCS] I[1PCS] CONNECT DGM K[1PCS] L[1PCS] J[1PCS] 1"X600L 8313-130 Page DLAT-102006...
  • Page 12 DLAT ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET M[1PCS] N[1PCS] O[2PCS] P[1PCS] 8343-146 8343-147 8343-140 8290-001 Q[1PCS] R[2PCS] 9161-021B 9121-054 150X250L Page DLAT-102006...
  • Page 13 DLAT ASSEMBLY INSTRUCTIONS FRAME PARTS ILLUSTRATION SHEET S[1PCS] T[1PCS] 6610-001 8380-044 U[1PCS] V[1PCS] 8380-052 8380-045 Z[1PCS] W[2PCS] 3/4"X1932L 9440-165 AA[12PCS] 8321-040 X[1PCS] both side 9211-111 50.5 AB[2PCS] 8321-040 one side Y[2PCS] 8313-144 50.5 Page DLAT-102006...
  • Page 14 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed 3/8"X1"L HEX BOLT X2 3/8" WASHER X2 Page DLAT-102006...
  • Page 15 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed 1/2"X1-1/4" HEX BOLT X2 1/2" WASHER X2 1/2"X2-3/4" HEX BOLT X2 1/2" WASHER X2 Page DLAT-102006...
  • Page 16 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed DLAT single weight stack assembly instructions M10X25L CONE BOLT X8 Page DLAT-102006...
  • Page 17 DLAT ASSEMBLY INSTRUCTIONS 1/2"X3/4"L HEX BOLT X2 1/2" WASHER X2 Above shows STEP 4 assembled and completed M10X25L HEX BOLT X2 M10 WASHER X2 5/16"X5/16" SCREW Page DLAT-102006...
  • Page 18 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed Page DLAT-102006...
  • Page 19 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed Page DLAT-102006...
  • Page 20 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed D18 D18 Page DLAT-102006...
  • Page 21 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed M5X10L HEX BOLT X4 DETAIL VIEW Page DLAT-102006...
  • Page 22 DLAT ASSEMBLY INSTRUCTIONS Cable to match illustration assemble direction DETAIL VIEW 14.1 Page DLAT-102006...
  • Page 23 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed 5/16"X5/16" SCREW D12 D5 5/16"X5/16" SCREW Page DLAT-102006...
  • Page 24 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed M6 WASHER x21 M6X12L ROUND BOLT x21 Page DLAT-102006...
  • Page 25 DLAT ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed 1/2" WASHER X2 1/2"X1 1/4" HEX BOLT X2 Page DLAT-102006...
  • Page 26 DLAT ASSEMBLY INSTRUCTIONS Cable to match illustration CABLE FOR DGYM ONLY 1975 1975 17.1 Page DLAT-102006...
  • Page 27 DGYM Page DLAT-102006...
