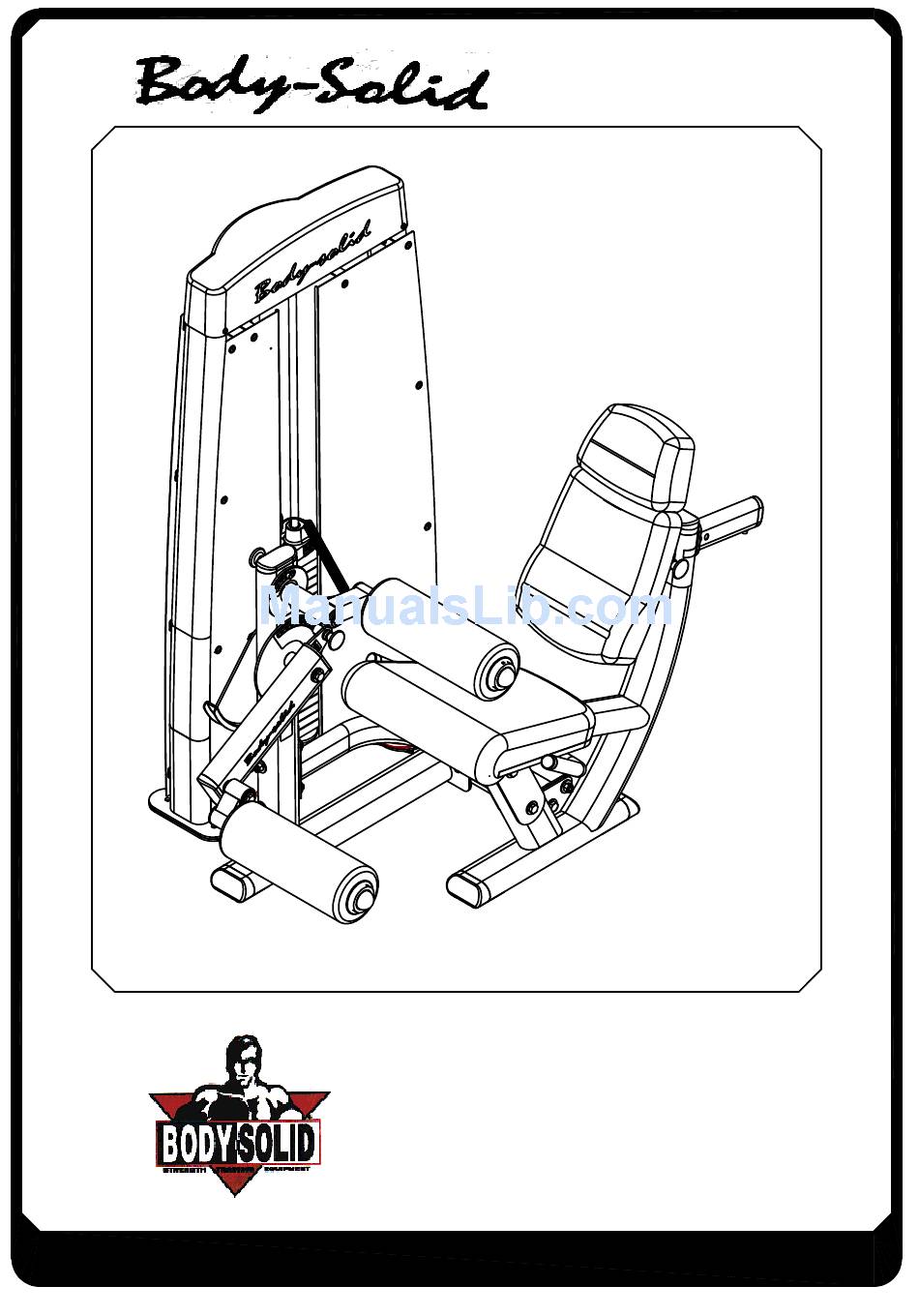

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DLEC.2 OWNER'S MANUAL...
- Page 2 DLEC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.2 (A2)HEX BOLT 1/2"X1-1/2"L PARTIAL QTY.3 (A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A4)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2 (A5)HEX BOLT 1/2"X3-3/4"L PARTIAL QTY.1 DLEC.2-112007 Page...
- Page 3 DLEC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A6)HEX BOLT 1/2"X5-1/2"L PARTIAL QTY.2 (A7)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2 (A8)HEX BOLT 5/16"X1"L PARTIAL QTY.6 (A9)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1 (A10)HEX BOLT 5/16"X3"L PARTIAL QTY.1 DLEC.2-112007 Page...
- Page 4 DLEC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A11)STEEL BUSHING 1/2"X 8.5X21L QTY.1 DLEC.2-112007 Page...
- Page 5 DLEC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.13 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.7 (B2)NYLON LOCK NUT 5/16" QTY.1 (C5)SPRING WASHER 5/16" QTY.7 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.20 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.6 (C3)5/16"(I.D.)FLAT WASHER 16 QTY.2 DLEC.2-112007 Page...
- Page 6 DLEC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 (AA7)10LB PIN(8250-071) QTY.1 DLEC.2-112007 Page...
- Page 7 (CC2)M6(I.D.)FLAT WASHER 13 QTY.20 (AA8)ELASTIC BOLT QTY.1 (AA10)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (AA11)FIRM SHEATH(8890-046) QTY.1 (CC6)1/2"(I.D.)FLAT WASHER 25 QTY.2 (BB2)NYLON LOCK NUT1/2" QTY.3 (BB3)NYLON LOCK NUT M10 QTY.1 (CC1)1/2"(I.D.)FLAT WASHER 34 QTY.4 DLEC.2-112007 Page...
-
Page 8: Dlec
------------------------------------------- [1PCS] (D16) 131X30 END CAP(9211-116) -----------------------------------------------[1PCS] --------------------------------------------[1PCS] (D17)3580mm STEEL CABLE(FDLECA) (D18) 3/4" SHAFT COLLAR(9211-046) -------------------------------------------[2PCS] (D19) 4" RUBBER DOUNT(9310-017) ---------------------------------------------[2PCS] (D20)TOP PLATE(8400-006) --------------------------------------------------------[1PCS] (D22)95X250 RUBBER PAD(9310-060) -------------------------------------------[2PCS] (D23)DLEC FOR DGYM CABLE(FDLECB) -----------------------------------------[1PCS] (D24)WEIGHT SELECTOR BAR(8210-042B) ------------------------------------[1PCS] 3580 DLEC.2-112007 Page... -
Page 9: Dlec
C [1PCS] B [1PCS] D [1PCS] E[1PCS] F [1PCS] I [1PCS] G1 [1PCS] H [1PCS] J [1PCS] K [1PCS] L [1PCS) O[1PCS] M [1PCS) N [1PCS] 9111-055 8321-062 8313-135 P [2PCS] Q [2PCS] R [1PCS] 9121-053 9161-034 9440-161 DLEC.2-112007 Page... -
Page 10: Dlec.2-112007 Page
DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed C1X2 A1X2 1/2" Washer 1/2"X1"L HEX Bolt B1X2 C1X2 DLEC.2-112007 Page... - Page 11 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed A6X2 1/2" Washer 1/2"X3-1/4"L HEX Bolt DLEC.2-112007 Page...
- Page 12 Above shows STEP 3 assembled and completed 1/2"X3/4"L HEX Bolt 1/2" Washer 6X6X45L Key 1/2" Washer 1/2"X3/4"L HEX Bolt 1/2"X3/4"L HEX Bolt 1/2" Washer 1/2" Washer 1/2"X3/4"L HEX Bolt 5/16"X5/16" Allen Head Bolt X2 2" Chrome Collar X2 DLEC.2-112007 Page...
- Page 13 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed 5/16"x3/4"L Round Inner Head 5/16" Spring Washer C1X2 C1X2 B1X2 DLEC.2-112007 Page...
- Page 14 DLEC ASSEMBLY INSTRUCTIONS Detail View Above shows STEP5 assembled and completed 5/16"X5/16"L Allen Head Bolt X4 1/2" Washer X2 1/2"X3/4"L HEX Bolt X2 1/2"X1-1/2"L HEX Bolt X2 1/2" Washer X2 1/2" Round End Cap Washer X2 DLEC.2-112007 Page...
- Page 15 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed DLEC.2-112007 Page...
-
Page 16: Dlec.2-112007 Page
DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed M6X12 Round Bolt x4 M6 Washer x4 AGx2 M10X25L Cone Bolt x8 D22x2 DLEC.2-112007 Page... - Page 17 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed D18X2 AEX2 D19X2 DLEC.2-112007 Page...
- Page 18 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed DLEC.2-112007 Page...
- Page 19 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed A2X3 C2X3 1/2" Washer 1/2"X1"L HEX Bolt C2X3 B1X3 DLEC.2-112007 Page...
- Page 20 DLEC ASSEMBLY INSTRUCTIONS D17. Above shows STEP 11 assembled and completed Detail View WEIGHT STACK CABLE AA10 M4 SCREW AA11 Selector Rod Detail View A9 C3 1/2" Washer 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt DLEC.2-112007 Page...
- Page 21 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 12 assembled and completed M6X20L Round Bolt X4 M6 Washer X4 M6X12L Round Bolt X21 M6 Washer X21 AA6X4 DLEC.2-112007 Page...
- Page 22 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 13 assembled and completed D23. 1/2"X1"L HEX Bolt 1/2" Washer DLEC.2-112007 Page...
- Page 23 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 13 assembled and completed D23. 1/2"X1"L HEX Bolt 1/2" Washer DLEC.2-112007 Page...
- Page 24 DLEC ASSEMBLY INSTRUCTIONS DGYM DLEC DLEC.2-112007 Page...
