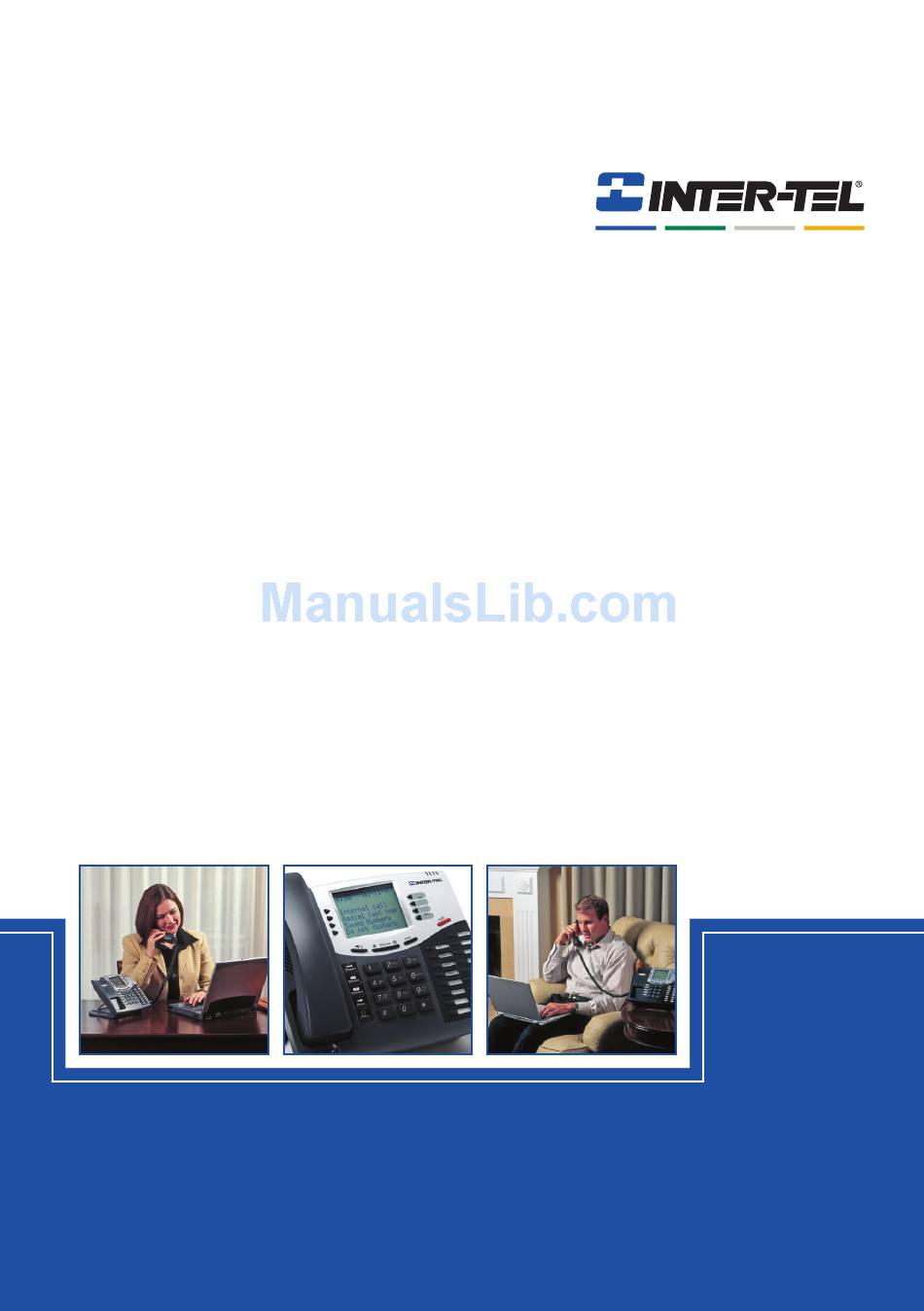

- Page 1 Inter-Tel 3000 IP Phone ® Quick Reference Guide...
- Page 2 The Inter-Tel 3000 IP Phone provides the same functionality as the Inter-Tel 3000 digital telephone sets. It can be connected directly to the Inter-Tel 3000 system or installed at a remote location and connected to the system via the Internet. When connected remotely, it retains all the functionality and features of an extension directly connected to the system.
- Page 3 Connect the blue cable to the LAN connector on the Transformer and connect the other end of the cable to an Ethernet port on the Broadband Module (IP Phone connected locally to theInter-Tel 3000) or broadband router (IP Phone installed at a remote location). Connect the transformer to a power source.
- Page 4 Programming the IP Phone involves entering the REMOTE SYSTEM IP address. This IP address will be provided by the Inter-Tel 3000 system administrator. The default password is “iptpassw” which matches the default password in the Broadband Module. If a different password is required, it must be entered in the IP Phone and also in the corresponding VoIP channel in the Broadband Module.
- Page 5 Enter the REMOTE SYSTEM IP address of the Inter-Tel 3000 using 12 digits. For example, 3 079 77 006. The IP address will be displayed without the leading zeros. The IP address will be supplied by the Inter-Tel 3000 system administrator.
- Page 6 Inter-Tel 3000 IP Phone Quick Reference User Guide PASSWORD ********** CHANGE CASE REVERT EXIT << >> The default password is “iptpassw”. This matches the default password in the Broadband Module. If a different password is required, enter it here and enter a matching password in the cor- responding VoIP channel in the Broadband Module Select >>...
- Page 7 Quick Reference User Guide Using the IP Phone The IP Phone provides the same functionality as the Inter-Tel 3000 digital telephone sets. It has the same menu system with Program, Message, Directory, Divert, Secrecy and Hold buttons, as well as 16 programmable keys. It also has a Voice Message indication light, speaker with volume control.
- Page 8 Inter-Tel 3000 IP Phone Quick Reference User Guide Answering and making calls Answer a call that is ringing on the IP Phone using the handset Pick up the handset or Select Answer the call and/or pick up the handset.
-
Page 9: Diverting Calls
Inter-Tel 3000 IP Phone Quick Reference User Guide Diverting calls Divert all calls Press the Divert key Select Divert all calls Select the required extension from the display or key the Extension number, or Key 9 and the target external number, (for incoming external calls only). - Page 10 Inter-Tel 3000 IP Phone Quick Reference User Guide Press the Divert key or select Divert on no answer and the diversion is cancelled. Diverting Group calls Divert all calls Scroll down Select Group Divert Select the group which is to be diverted Select ...
- Page 11 Inter-Tel 3000 IP Phone Quick Reference User Guide Select the required extension from the display or key the Extension number, Key 9 and the target external number, (for incoming external calls only). Or press “Divert to voicemail” Cancel group divert on no answer Scroll down Select ...
- Page 12 Inter-Tel 3000 IP Phone Quick Reference User Guide Select Play. Change your Voice Mailbox Password Press , then Select Voice messaging and enter your Extension number. Enter your existing password, (default is 1111), followed by #. Scroll down Select ...
- Page 13 Inter-Tel 3000 IP Phone Quick Reference User Guide Dial a number from your personal speed dial list Press , then Select Personal speed dial Select the desired location and the number will be dialled. System speed dials Any extension can program the 500 system speed dial numbers once the system password is entered by them.
- Page 14 Inter-Tel 3000 IP Phone Quick Reference User Guide Troubleshooting the IP Phone In the event that the IP Phone does not work, carry out the following steps. Can a PC directly connected to the Check your broad- broadband router band connection...
- Page 15 IP Phone Quick Reference User Guide Issue 1, May 2007 Part No. 68.5075...
