Summary of Contents for baracuda GC

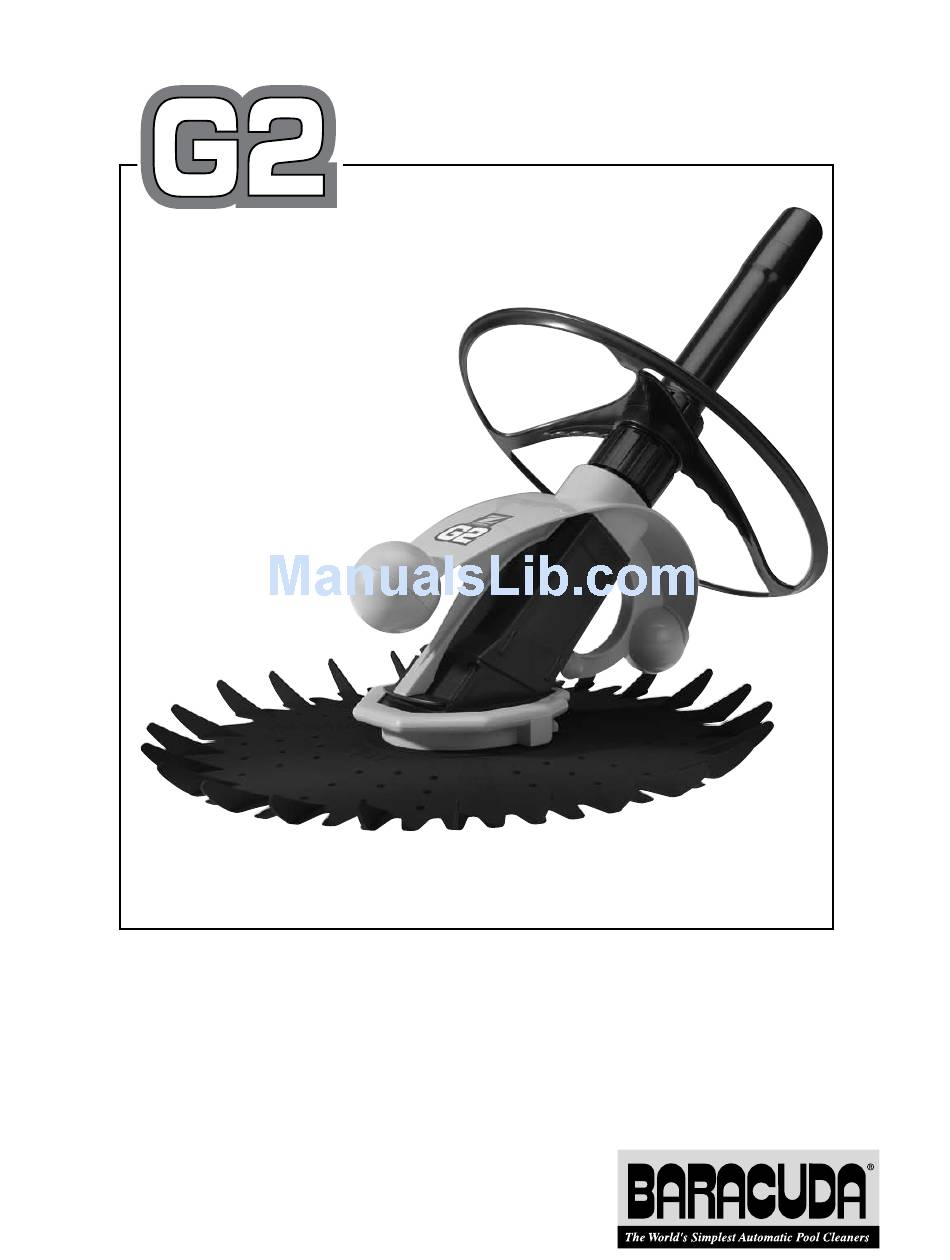

  • Page 1 Owner’s Manual Guide du Propriétaire...
  • Page 2 Serial Number (Located on underside of cleaner) ___________________________________ If service is required, simply present your manual with the attached receipt at any Baracuda authorized waranty center. This pool cleaner is covered by one or more of the following patents: US patents: 5,421,054; 5,315,728, 6484,743 and D343034.
  • Page 3 Introduction Congratulations on the purchase of your new G2 automatic pool cleaner. Built with proven Baracuda technology, the G2 is designed and manufactured for easy installation, and years of carefree operation. Before installing the cleaner, please take a few moments to become familiar with its components and to...
  • Page 4: Installation

    Installation Prepare the Pool 1. Manually vacuum the pool if excesssive debris is present, and make sure the pool filter and pump basket are clean. 2. Close the pool main drain line. 3. Adjust the return lines to blow downward to break up surface circulation and ensure complete cleaning coverage.
  • Page 5 Connect the Hose Turn on the filtration system and fill the hose with water by placing the end in front of a return inlet until it is flooded. Turn off the pump. To connect to a dedicated suction line: 1. Insert the male end of the hose into the large end of the 45°...
  • Page 6 Test and Adjust for Proper Flow Keeping the hose submerged, attach the Flow Gauge to the hose and turn on the pump. Verify that the red indicator in the gauge (viewed from the side) is at the Number 3 setting. 6 5 4 3 2 1 0 If necessary, use the valves in the pool equipment area to adjust the flow.
  • Page 7: Operation And Maintenance

    Operation and Maintenance Fine Tuning Cleaner Performance Cycling on and off with the pool filtration system, the G2 moves randomly around the pool, vacuuming and cleaning all surfaces as it goes. As water flows through the cleaner, dirt and debris are pulled directly into the pool filtration system.
  • Page 8 Do not over tighten. Replacing the Foot Pad The foot pad should be replaced when the depth of the channels between the treads are 1/8” or less. Contact your Baracuda Dealer for assistance with replacing this part. Channel Between Threads Storage and Winterizing Never coil the hose.
  • Page 9: Troubleshooting

    Troubleshooting If you experience a problem with your G2, please follow the troubleshooting steps below to restore performance. If further assistance is required, contact Zodiac Customer Service. Please have your serial number and date of purchase available when you call. Problem Solution Cleaner does not move or moves slowly.
  • Page 10 G2 Parts Diagram 6 5 4 3 2 1 0 No. Part Description Qty. W83278 Wheel Deflector - 12” W70460 Outer Extension Pipe W56525 Inner Extension Pipe W81600 Diaphragm Retaining Ring W81701 Diaphragm W70476 Weight / Float Assembly W74000 Compression Ring W70461 Inner Body W70327...
  • Page 11 Nous vous félicitons d’avoir acheté un nouvel appareil automatique de nettoyage G2. Sa construction s’appuyant sur la technologie éprouvée Baracuda, le G2 a été conçu et fabriqué pour être facilement installé et pour vous offrir des années de services sans souci d’entretien. Avant d’installer l’appareil de nettoyage, veuillez prendre un moment pour vous familiariser avec ses composants et pour examiner les points énumérés sous le titre «...
  • Page 12 Installation Préparation de la piscine 1. Nettoyez manuellement la piscine avec un aspirateur si des débris sont présents en excès et vérifiez que le filtre de la piscine et le panier de la pompe sont propres. 2. Fermez le drain principal de la piscine. 3.
  • Page 13 Branchement du boyau Mettez en marche le système de filtration et remplissez d’eau le boyau en positionnant l’extrémité devant une entrée de retour jusqu’à ce que le boyau soit noyé. Arrêtez la pompe de la piscine. Pour raccorder une conduite d’aspiration séparée : 1.
  • Page 14 Essais et réglages pour un débit approprié Tout en gardant le boyau submergé, rattachez le débitmètre au boyau et mettez en marche la pompe. Vérifiez que l’indicateur rouge du débitmètre (visualisé de côté) est au point de réglage numéro 3. 6 5 4 3 2 1 0 Au besoin, utilisez les robinets dans la piscine pour régler le débit.
  • Page 15: Fonctionnement Et Entretien

    Fonctionnement et entretien Réglage final de l’appareil de nettoyage Suivant le cycle de mise en marche et d’arrêt du système de filtration de la piscine, le G2 effectue des évolutions aléatoires dans la piscine, aspirant et nettoyant toutes les surfaces où il passe. Lorsque l’eau s’écoule à...
  • Page 16 3 mm (0.125 po) ou moins. Communiquez avec votre concessionnaire Baracuda qui pourra vous assister dans le remplacement de cette pièce. L’entreposage et entretien en hiver N’enroulez jamais le boyau. Gardez l’appareil à l’abris du soleil direct. Pour l’entreposage durant l’hiver, drainez tout l’eau de l’appareil et des boyaux.
  • Page 17: Dépannage

    Dépannage En cas de problème avec votre G2, veuillez suivre les étapes de dépannage suivantes pour rétablir la perfor- mance de l’appareil. Contactez le Service à la Clientèle de Zodiac pour toute assistance. Veuillez avoir le numéro de série et la date d’achat de l’appareil disponsibles avant d’appeler. Problème Solution L’appareil de nettoyage ne bouge...
  • Page 18 G2 Diagramme des pièces 6 5 4 3 2 1 0 No. Part Description Qty. W83278 Roue déflectrice - 12 po. W70460 Tuyau-rallonge externe W56525 Tuyau-rallonge interne W81600 Bague de retenue W81701 Obturateur W70476 Ensemble poids / flotteur W74000 Bague de compression W70461 Corps interne W70327...
  • Page 19 Mexique. Ces démarches vous assureront un service rapide si vous devez faire appel à votre garantie. • Remplissez et renvoyez la fiche d’enregistrement de la garantie Baracuda. • Inscrivez les renseignements relatifs à votre achat. • Joignez une photocopie de votre facture à ce document.
  • Page 20 Zodiac Pool Systems, Inc. 2620 Commerce Way Vista, CA 92081 USA • Tel: 1-800-822-7933 Zodiac Pool Systems Canada, Inc. 2115 South Service Road West, Unit 3 ©2008 Zodiac Pool Systems, Inc. All rights reserved. TL-2060 11/08 Oakville, ON Canada L6L 5W2 • Tel: 1-888-647-4004...
