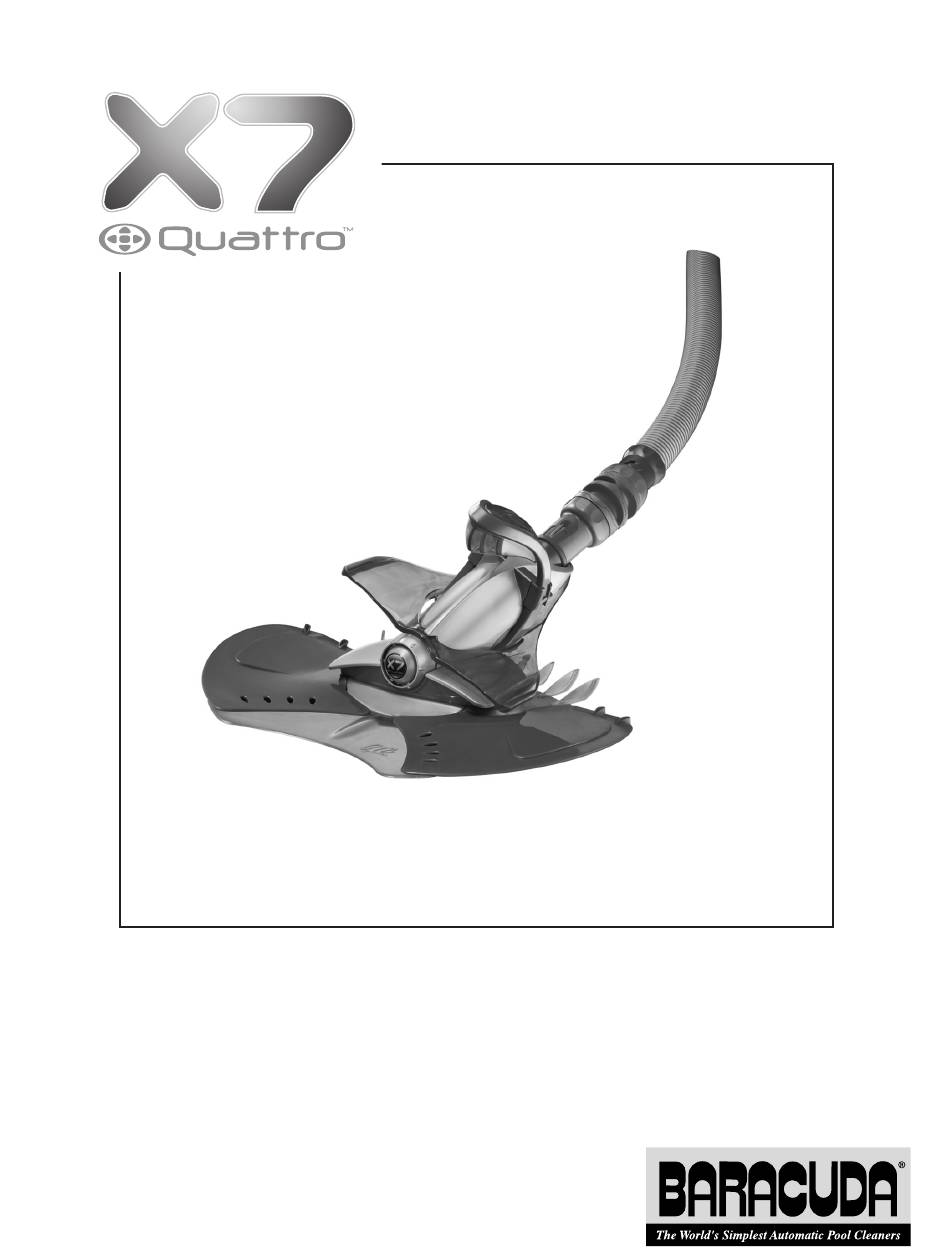

  • Page 1 English Français Español Owner’s Manual...
  • Page 2 Important Information Notice for Vinyl Liner Pools: Before installing your new automatic pool cleaner, examine the interior of your pool carefully. If the vinyl liner is brittle or has stones, wrinkles, roots or metal corrosion in contact with the underside of the liner, or has damage to the base material or supporting walls, do not install the cleaner before having a qualified professional perform the necessary repairs or liner replacement.
  • Page 3 ® years of carefree operation. The X7 Quattro™ connects to a dedicated cleaner (suction) line or a pool skimmer. As water flows through the cleaner, dirt and debris are pulled directly into the pool filtration system. Before installing the cleaner, please take a few moments to become familiar with its components and to review the items listed under Important Information on the previous page.

  • Page 4: Quick Installation

    Quick Installation Prepare the Pool 1. Manually vacuum the pool if excessive debris is present, and make sure the pool filter and pump basket are clean. 2. Close the pool main drain line. 3. Adjust the return lines to blow down- ward to break up surface circulation and ensure complete cleaning coverage.
  • Page 5 Connect the Hose Turn on the filtration system and fill the hose with water by placing the end in front of a return inlet until it is flooded. Turn off the pump. To connect to a dedicated suction line: 1. Attach the male end of the hose to the 45°...
  • Page 6 Test and Adjust for Proper Flow Keeping the hose submerged, attach the flex connector to the end of the hose. Click the Flow Gauge onto the connector and turn on the pump. Verify that the red indicator in the gauge (viewed from the side) is on the Number 3 setting. 6 5 4 3 2 1 0 If necessary, use the valves in the pool equipment area to adjust the flow.
  • Page 7 Connect the Cleaner 1. Make sure the float/arm handle is in the full upright position and Handle Lock locked into place with the two handle locks. 2. Submerge the cleaner and flood it with water. 3. When bubbles stop coming out of the extension pipe, connect the hose to the cleaner by pushing the flex-connector onto the outer...

  • Page 8: Operation And Maintenance

    Operation and Maintenance Fine Tuning Cleaner Performance The X7 Quattro™ cycles on/off with the pool filtration pump vacuuming and cleaning all surfaces randomly throughout the pool. The coverage of the cleaner is dependent on the pool’s shape and available water flow.
  • Page 9 Clearing the Diaphragm Diaphragm If the cleaner stops, check the diaphragm for blockage. 1. Turn cleaner over. 2. Inspect diaphragm and push through debris or obstacles to clear. If not blocked, check the diaphragm for wear or damage. Handle Locks To access or remove the diaphragm: 1.
  • Page 10 5. Separate the inner extension pipe and pull out the diaphragm. 6. Inspect the diaphragm for wear and rinse it thoroughly with water. Replace it if necessary. To reinstall diaphragm: 1. Attach diaphragm to inner pipe. Notch 2. Insert inner pipe and diaphragm into cup assembly.

  • Page 11: Storage And Winterizing

    Lock Storage and Winterizing Never coil the hose. Store the X7 Quattro™ out of direct sunlight. When storing for the winter, drain all water from the cleaner. Remove all connectors and adapters from the dedicated suction line or skimmer. Store the disc flat, and hose sections disconnected, drained and straight.
  • Page 12 Quattro™ Zodiac X7 Parts Diagram 6 5 4 3 2 1 0 No. Part # Description X77000 Engine Assembly Complete X77044 Thrust Washer X77027 Outer Extension Pipe X77028 Inner Extension Pipe X77054 Cup Assembly X73010 Dura-Life Diaphragm (US/Mex) X77010 Main Body Cover X77011 Float Arm/Handle with Locks X77014...

  • Page 13: Troubleshooting

    Troubleshooting If you experience a problem with your X7 Quattro™, please follow the troubleshooting steps below to restore performance. If further assistance is required, contact Zodiac Customer Service. Please have your serial number and date of purchase available when you call.
  • Page 14 ® ZODIAC POOL SYSTEMS, INC. 2620 Commerce Way • Vista, CA • 92081 ©2009 Zodiac Pool Systems, Inc. All rights reserved. TL-2015A 10/09 Tel: 800-822-7933 • Fax: 877-327-1403...
