Summary of Contents for baracuda Captura Plus

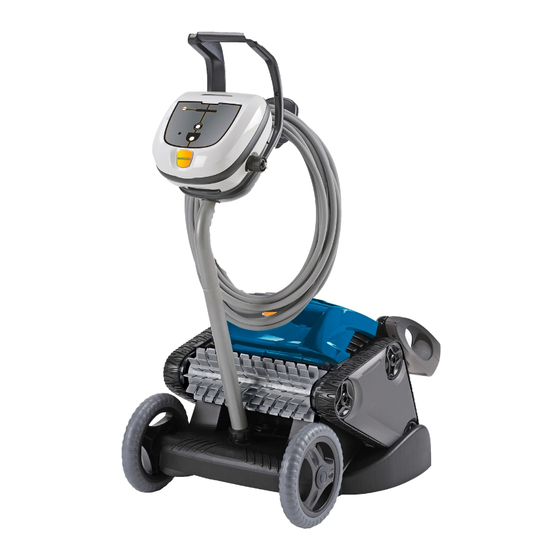

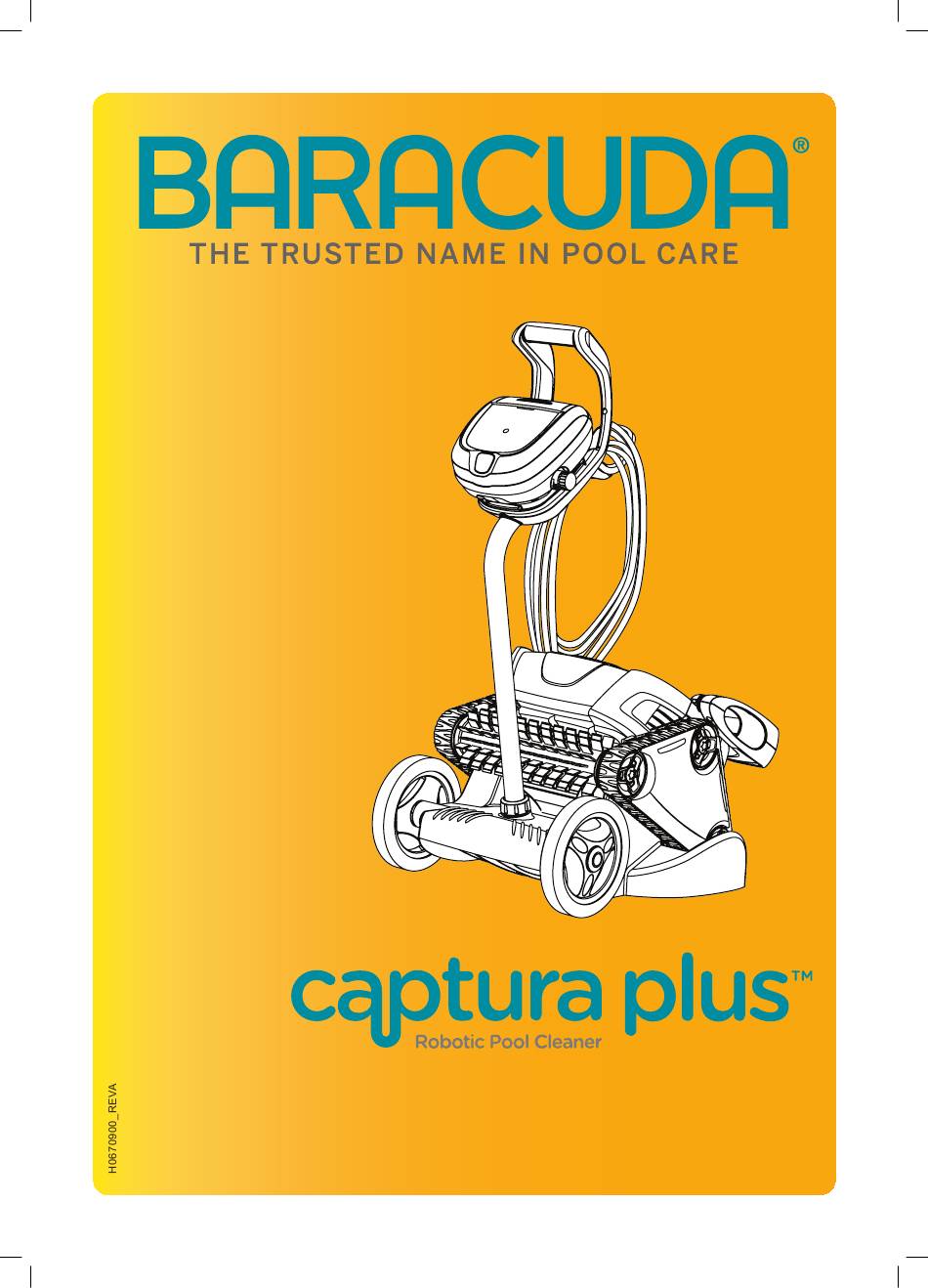

- Page 1 TYPE EM14 -- TYPE EM15 -- Owner's Manual...
-
Page 2: Table Of Contents
If the original dealer does not perform warranty service, please visit www.baracuda.com.au to locate an independent service company near you. If you are unable to locate a service company,please call our Baracuda Customer Service at 1300 784 423. -
Page 3: Section 1. Important Safety Instructions
• Do not bury cord. Locate cord so as to prevent it from being damaged by lawn mowers, hedge trimmers and other equipment. • To reduce the risk of electrical shock, do not use the robotic cleaner or control box if the cord is worn or damaged. Contact Baracuda Customer care Service 1300 784 423 immediately for proper servicing and replacement of the damaged cord. -
Page 4: Section 2. Getting Started
Section 2. Getting Started 2.1 General Specifications Unpacking The packaging should contain the following items: The general specifications for the cleaner are as follows: • Baracuda Robotic Cleaner ® • Floating Cable Control box 220-240 VAC, 50 Hz; short circuit-proof •... -
Page 5: Assembling The Transport Caddy
• Check cleaner and components for damage during transport. • If there are missing parts or damage, contact Baracuda Technical Support: 1300 784 423 Assembling the Transport Caddy Unscrew the handnut from the base unit (Figure 2). Figure 4. Twist Handnut to Secure Frame Snap two (2) support blocks into place (Figure 5). -
Page 6: Connecting The Control Unit To The Caddy
Section 2. Getting Started Connecting the Control Unit to the Caddy Align the bottom of the control unit with the notch at bottom of the control unit hook on the caddy (Figure 8). Figure 6. Attach Caddy Handle Figure 8. Align Control Unit on Caddy Hook Press control unit onto the caddy hook until it snaps and locks into position (Figure 9). -
Page 7: Connecting The Floating Cable To The Control Box
Section 2. Getting Started Section 2. Getting Started Connecting the Floating Cable to the Control Box WARNING Failure to comply with the following warnings can result in permanent injury, electrocution or drowning. PREVENT ELECTRICAL SHOCK • Keep the Control box at least 3.5 m from the edge of the pool. -
Page 8: Section 3. Operation
Spread the floating cable over the pool, coils in the cable before storing the cleaner. making sure there are no kinks or coils in the The Baracuda robotic cleaner includes a safety feature ® cable. Allow enough floating cable for the... -
Page 9: Starting The Cleaner
Section 3. Operation Starting the Cleaner Observe Cleaner Behaviour The first time you use the cleaner, the cleaning surface wall cleaning and water line brushing on all types setting is Floor and Wall • C After the first time, the default is the last setting used. •... -
Page 10: Rinsing The Cleaner
Do not let your cleaner dry in direct sunlight near the pool. Note: Recommended Usage Baracuda recommend up to 3 cleaning cycles per week in summer. Up to 3 cleaning cycles per week means your pool will remain clean and filter less clogged. -
Page 11: Storing The Cleaner
Section 3. Operation Grasp the handle and lift up to remove the Using a hose with clean water, rinse the filter filter canister (Figure 17). canister and lid to remove all debris (Figure 19). Figure 17. Remove the Filter Canister Figure 19. -
Page 12: Section 4. Maintenance
Section 3. Operation Place the cleaner in vertical position on the caddy base with the rear tracks on the caddy side wedges (see Figure 21). Loosely coil the power cable starting at the cleaner and moving toward the connection point at control unit. Store the cable by wrapping it around the hook located on the front of the caddy (see Figure 21). -
Page 13: Replacing The Brushes
(even if the bristle wear is not even). Baracuda recommends that you replace the brushes every two (2) years. Figure 27. Pull Tabs Through Each Slot Use scissors to cut the tabs at the guides, as shown in Figure 28. -
Page 14: Replacing The Track
Section 4. Maintenance Replacing the Track Stretch the track around the second wheel, then pull over the last wheel (see Figure 32). Push Stand the cleaner on its side (Figure 29). and position the rib of the track so that the track is seated properly in the groove of the wheel. -
Page 15: Using The Information Led
Floating cable may not be plugged Unplug the floating cable from the LED flashes once into the Control box correctly. Control box and reconnect. If the problem persists, contact Baracuda Customer Service at 1300 784 423 2 Flashes Cleaner wheels may be jammed Turn cleaner wheels to ensure LED flashes twice or brushes may be blocked with they are not jammed. -
Page 16: Section 5. Troubleshooting
Remove cleaner from the pool. Press power button begin a new cycle. OFF, then begin a new cycle. Propeller may be jammed and not Remove cleaner from the pool. Contact Baracuda turning correctly. Customer Service at 1300 784 423 Wheels may be jammed and not turn- Remove cleaner from the pool. -
Page 17: Section 6. Conformity
For installation and troubleshooting questions, please directly contact BARACUDA® After Sales. And don’t forget to register your product online for warranty (see Warranty Card inside the pack). Happy Swimming! For more information visit www.baracuda.com.au or call 1300 784 423 H670900_REVA... - Page 18 NOTES H670900_REVA...
- Page 19 NOTES H670900_REVA...
- Page 20 Baracuda is a registered trademark of Zodiac Group Australia Pty Ltd ABN 87 002 641 965 219 Woodpark Rd, Smithfield, NSW 2164 Australia Tel: 1300 784 423 www.baracuda.com.au © Copyright Zodiac Australia Ltd 2019 H670900_REVA...
