Summary of Contents for CDA WC461

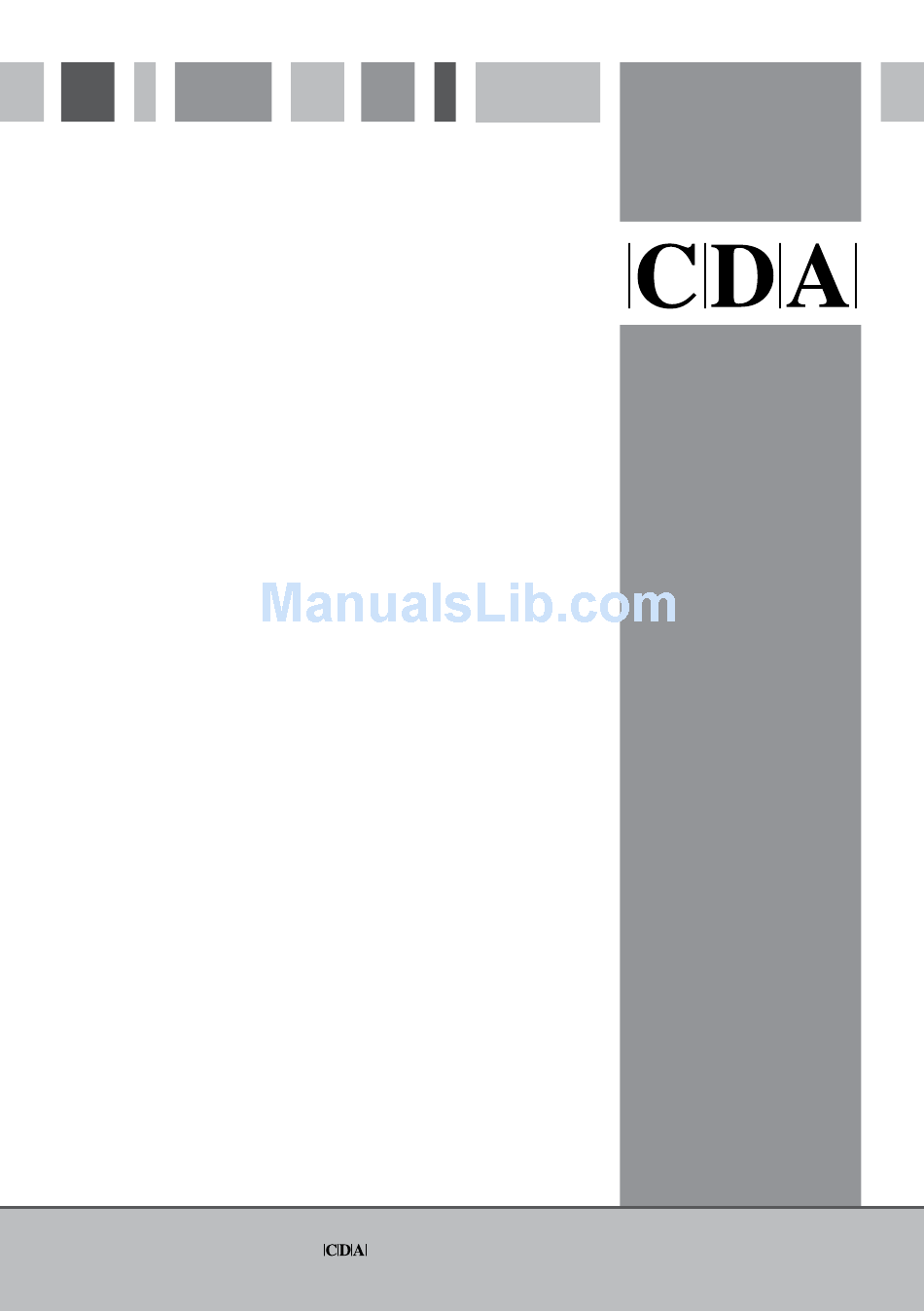

- Page 1 Manual for Installation, Use and Maintenance Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
-
Page 2: Appliance Information
Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model Serial Number This appliance has been designed for domestic use only. -
Page 3: Before First Use
Important • Read the instructions prior to installation and use of the appliance. • Do not lean or climb on the open dishwasher door to prevent damage. • Close the dishwasher door after use to prevent accidents. • Use only detergents, salt and rinse aid specifically designed for dishwashers. •... -
Page 4: Control Panel
Control Panel fig. 1 Power button (1) • To switch the dishwasher on or off, press the power button (1). When you switch on the dishwasher, the end of programme light will illuminate, and two dashes will appear on the display. Programme display (2) The programme display shows the selected programme and the remaining time to run. - Page 5 Please note: You should ensure that there are no dishes in the upper basket when running a lower basket half-load programme, and none in the lower basket when running an upper basket half-load programme. Salt, rinse aid warning lights and end of programme light (7) When the dishwasher salt or rinse aid begins to run out, the warning light will illuminate to advise that it needs refilling.
- Page 6 As a result, it is recommended that powder detergents should be used in the shorter programmes to allow better performance. CDA recommends the use of separate detergent, rinse aid and dishwasher salt rather than combination tablets as separates achieve better wash performance.
- Page 7 Salt To ensure the best efficiency, the dishwasher needs soft water. Hard water means that lime residues remain on the dishes and the interior of the dishwasher, affecting performance. The softener system is designed to remove the ions that make the water hard to provide the best quality wash performance.
-
Page 8: Softener Adjustment
Softener Adjustment The efficiency of your dishwasher depends on the softness of the tap water. To ensure best efficiency, the dishwasher is equipped with a system that reduces the hardness in the mains water supply. The efficiency will increase when the system is correctly set. To find out the water hardness level of your water supply you can use the test strip supplied or alternatively contact your local water board. -
Page 9: Rinse Aid
Rinse Aid To fill the rinse aid compartment 1. Open the rinse aid compartment by turning and removing the cap as shown in figure 6. 2. Fill the rinse aid compartment until the rinse aid indicator goes dark, as shown in figure 7 (where a indicates the compartment is empty, and “b”... -
Page 10: Dishwasher Baskets
Dishwasher Baskets Top basket height adjustment Top basket of your machine is in upper position. When it is in this position, you can place big items such as pans, etc. on lower basket. When you take top basket to lower position, you can place and wash big sized plates on the top basket. -
Page 11: Standard Loading And Test Data
Standard Loading and Test Data Capacity • Upper and lower baskets: 10 place settings. • The upper basket should be adjusted to high position. • Cups should be placed on to the dish rack pins. Detergent / Rinse aid fig. 12 •... -
Page 12: Programme Listing
Programme Listing Programme name Auto-intensive Auto-normal Auto-delicate Intensive + Express Economy Quick Prewash 60-70 50-60 30-50 and temperature Level of soil High High High Medium Medium Detergent required Prewash Prewash Prewash Prewash Prewash The dishwasher is equipped with a sensor that automatically adjusts the washing time, temperature and amount of water required. -
Page 13: Care And Maintenance
Care and Maintenance Before beginning any care or maintenance, you should always disconnect the appliance from the electricity supply, and also turn off the water supply. Door seals Wipe the dishwasher door seals regularly with a damp cloth to remove any residues. -
Page 14: Failure Codes And Troubleshooting
The waste water in the machine cannot be discharged. • Restart the dishwasher and cancel the programme • If the error continues, contact CDA Customer Care Continual fill error. • Contact CDA Customer Care • Make sure the water tap is fully open •... - Page 15 Failure Codes and Troubleshooting Problem Possible cause Check the plug, fuse and circuit breakers of the mains supply. The water tap is turned off. The programme will not start The dishwasher door is not fully closed. The water inlet filter or the machine filters are blocked. The water drain hose is blocked or kinked.
-
Page 16: Electrical Information
Electrical information Warning! This appliance must be earthed. The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow the steps below: 1. Remove the fuse cover and fuse. 2. -
Page 17: Installation
Installation • Do not install this appliance if it is damaged in any way. Installing a damaged appliance may invalidate the warranty. • The water supply tap should be located in an adjacent cupboard so that it can be accessed after installation. •... -
Page 18: Fitting The Integrated Appliance Door
Fitting the integrated appliance door Where non-standard integrated appliance doors are supplied, additional fitting instructions are required to ensure compatibility with this product. The machine is supplied with a fitting template and these instructions should be followed as normal. Fitting template However, the fitting template needs to be located lower down the fascia door;... - Page 20 Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
