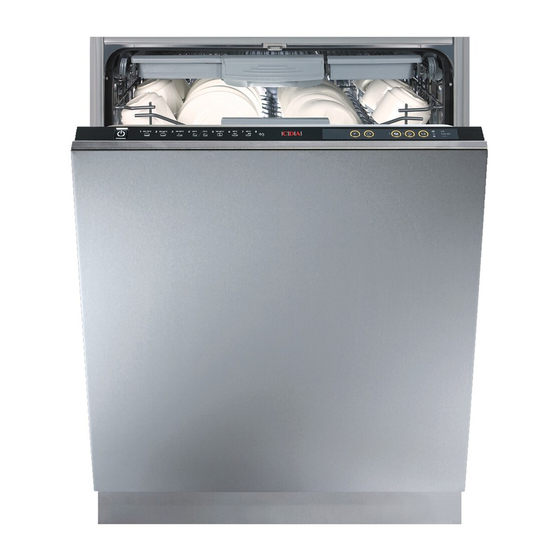

- Page 1 WC600 Integrated Dishwasher Manual for Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
-
Page 3: Before First Use
• Children could get locked inside the appliance. Therefore when disposing of an old appliance, cut off the plug and set aside, and damage the door lock so that the door can no longer be closed. Recommendations • To reduce energy and water consumption, remove all dirt residues from the dishes prior to loading the dishwasher. •... -
Page 4: Control Panel
Control Panel Fig. 1 Power button (1) • T o switch the dishwasher on or off, press the power button (1). When you switch on the dishwasher, the end of programme light will illuminate, and two dashes will appear on the display. The interior light will work automatically when the dishwasher is switched on. - Page 5 The prewash is also an independent programme (8) which can be used to rinse the contents of the dishwasher, for example if the dishwasher is not yet full and a complete programme is not yet required. • To do so, select the programme as described below. •...
- Page 6 Control Panel Cancelling a programme It is possible to cancel the programme once is has started. • First open the door slightly to reduce the risk of water spillage. • P ress and hold in the Programme Selection button until the end of programme indicator flashes and a “1” shows on the display.
-
Page 7: Interior Light
Interior Light The dishwasher is equipped with an interior light to illuminate the dishwasher when loading and unloading. This light is preset to Eco mode when supplied, but can be adjusted if necessary. Normal When the power is on, the interior light switches on when the door is opened and switches off when mode the door is closed. - Page 8 As a result, it is recommended that powder detergents should be used in the shorter programmes to allow better performance. CDA recommends the use of separate detergent, rinse aid and dishwasher salt rather than combination tablets as separates achieve better wash performance.
- Page 9 This is achieved by using detergent into the prewash section of the compartment “a” (figure 2). CDA recommends the use of separate detergent, rinse aid and dishwasher salt dishwasher salt. 3. Then close the detergent compartment lid until the latch locks.
-
Page 10: Softener Adjustment
Softener Adjustment The efficiency of your dishwasher depends on the softness of the tap water. To ensure best efficiency, the dishwasher is equipped with a system that reduces the hardness in the mains water supply. The efficiency will increase when the system is correctly set. -
Page 11: Rinse Aid
Rinse Aid compartment se Aid e aid compartment To fill the rinse aid compartment aid compartment by turning and removing the cap as rinse aid compartment by turning and removing the cap as the rinse aid compartment 1. Open the rinse aid compartment by turning and removing the e 4. -
Page 12: Dishwasher Baskets
Top basket height adjustment while Dishwasher Baskets The middle basket has two different heights available, to allow for Bask larger products in either the middle or lower basket. To raise or lower your m the middle basket: Top basket height adjustment while it is full Top basket height adjustment while it is full top ba Basket height adjustment mechanism on the top bask... - Page 13 Adjustable cup racks The dishwasher is equipped with adjustable cup racks on the middle basket to allow long stemmed glasses to rest securely during washing, or stacking of smaller cups. The cup racks can also be folded up when not required to allow more space for larger items. Folding racks in middle and lower basket The dishwasher is equipped with folding plate racks for the middle and lower baskets to offer the option of different uses of space as...
-
Page 14: Standard Loading And Test Data
Standard Loading and Test Data Capacity • Middle and lower baskets: 15 place settings. • The middle basket should be adjusted to the lowest position. Detergent / Rinse aid • 5 + 25 cm3, in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 4. -
Page 15: Programme Listing
Programme Listing Intensive+ Auto Auto- Auto- 70° (Inten- Programme name Intensive Prewash Express Quick Intensive normal delicate sive 60° and and temperature prewash 60-70 50-60 30-50 function) Level of soil High High High Medium Medium High Detergent required Prewash The dishwasher is equipped with a sensor that Prewash Prewash Prewash... -
Page 16: Care And Maintenance
Care and Maintenance Before beginning any care or maintenance, you should always disconnect the appliance from the electricity supply, and also turn off the water supply. Door seals Wipe the dishwasher door seals regularly with a damp cloth to remove any residues. -
Page 17: Failure Codes And Troubleshooting
The programme indicators also serve as a diagnostic display to help in the event of a problem with the appliance. Error Code Error description Advice • Turn off the dishwasher and disconnect the water supply Alarm is active against water overflow • Contact CDA Customer Care • Drain hose is blocked • The filters of your machine might be blocked The waste water cannot be discharged • Restart the dishwasher and cancel the programme • If the error continues, contact CDA Customer Care • Contact CDA Customer Care... - Page 18 Salt compartment cap not completely closed. Poor appliance earth (check mains electrical supply). The door is not opening or closing properly Door tension not correctly adjusted for the decor door. The internal light is not working Light failure - Contact CDA Customer Care for replacement...
-
Page 19: Electrical Information
If in doubt regarding the electrical connection of this appliance, consult a qualified electrician. Do not shorten the supply cable, the appliance may require removing for servicing. N.B. Ensure that the plug socket is situated in an easily accessible place. If the power supply cord is damaged, it must replaced by a CDA authorised agent. -
Page 20: Installation
Installation • D o not install this appliance if it is damaged in any way. Installing a damaged appliance may invalidate the warranty. • T he water supply tap should be located in an adjacent cupboard so that it can be accessed after installation. •... -
Page 21: Fitting The Integrated Appliance Door
Fitting the integrated appliance door Where non-standard integrated appliance doors are supplied, additional fitting instructions are required to ensure compatibility with this product. The machine is supplied with a fitting template and these instructions should be followed as normal. Fitting template However, the fitting template needs to be located lower down the fascia door;... - Page 24 Please contact our Customer Care Department, or for Service on the details below. Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
