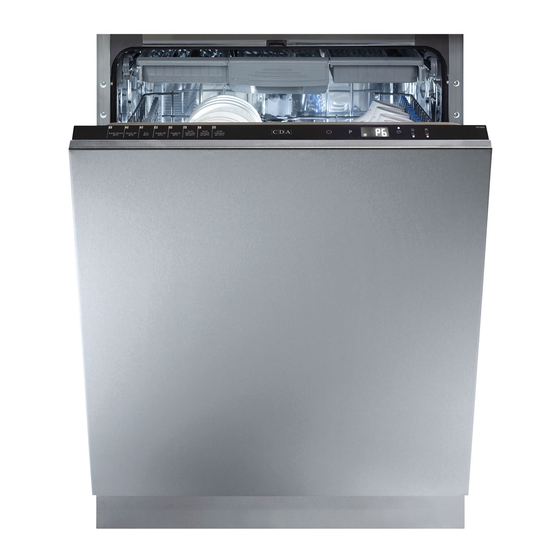

CDA WC680 Installation, Use And Maintenance Manual

Integrated dishwasher
Hide thumbs
Table of Contents

Advertisement

Quick Links

WC680
Integrated dishwasher
Installation, use and maintenance
www.cda.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WC680 and is the answer not in the manual?

Questions and answers

Related Manuals for CDA WC680

Summary of Contents for CDA WC680

  • Page 1 WC680 Integrated dishwasher Installation, use and maintenance www.cda.eu...

  • Page 2: Table Of Contents

    Contents Important information and notes Recommendations and before first use Control panel Selecting a programme and feature information Starting a programme Changing a programme Cancelling a programme Detergent information Salt information Softener adjustment Direct wash feature Rinse aid 20 Dishwasher basket information 20 Loading information Adjustable racks and cutlery tray information 22 Standard loading and test data...
  • Page 3 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
  • Page 4 Availability of this manual in an alternative format: A soft copy of this manual is available for download from www.cda.eu. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services.
  • Page 5 ensure that sharp objects such as knives are placed blade down to prevent accidents. • Do not open the dishwasher door when a programme is running. If it is necessary to do so, then open it only slightly to allow the dishwasher to pause the programme and prevent any water spilling out.
  • Page 6 play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Recommendations • To reduce energy and water consumption, remove all dirt residues from the dishes prior to loading the dishwasher. • Only run the dishwasher when fully loaded. •...

  • Page 7: Control Panel

    Control Panel Fig. 1 Power button (1) • To switch the dishwasher on or off, press & hold the power button (1) for 3 seconds. When you switch on the dishwasher, the end of programme light will illuminate, and two dashes appear on the display.
  • Page 8 • To set the delay timer, press the delay timer button (4). This will switch the timer on for one hour. • To change the delay duration, press the delay timer button again until the required delay duration is shown on the display, alternating with the selected programme and the programme duration.

  • Page 9: Starting A Programme

    Prewash indicator (7) The dishwasher is equipped with a prewash function that automatically adds a prewash to the selected programme. The prewash function improves the wash performance of the programme, but also can change the temperature and duration of the programme. •...

  • Page 10: Changing A Programme

    programme is shown on the display. • If required, set the delay timer by pressing the Delay Timer button • Once a programme is selected, the end of programme light will switch off. • When you close the dishwasher door, the programme will start automatically.

  • Page 11: Cancelling A Programme

    is shown on the display. • Then close the door. The dishwasher will begin the new programme from the point at which the old programme stopped. Cancelling a programme It is possible to cancel the programme once is has started. •...
  • Page 12 As a result, it is recommended that powder detergents should be used in the shorter programmes to allow better performance. CDA recommend the use of separate detergent, rinse aid and dishwasher salt rather than combination tablets as separates achieve better wash performance.
  • Page 13 again, you should fill the salt and rinse aid compartments, adjust the water hardness setting to the maximum and run an empty wash, then adjust the water hardness setting and the rinse aid setting to the appropriate level. If you use both tablets and separates at different times, ensure you use the three in one function when running a programme with tablets for best wash performance.
  • Page 14 Salt To ensure the best efficiency, the dishwasher needs soft water. Hard water means that lime residues remain on the dishes and the interior of the dishwasher, affecting performance. The softener system is designed to remove the ions that make the water hard to provide the best quality wash performance.

  • Page 15: Softener Adjustment

    CDA recommends the use of separate detergent, rinse aid and dishwasher salt rather than combination tablets as separates achieve better wash performance. fig 2 If you do use combination detergents, add salt and rinse aid to the dishwasher and then adjust the water hardness setting and rinse aid setting to the minimum.
  • Page 16 5. Wait for one minute. 6. Check the number of marks on the strip to see the level of water hardness. If the hardness of the water you use is above 63dE or if you are using well water; you are recommended to contact your local water board to confirm the water hardness level and to use filter and water refinement devices.

  • Page 17: Direct Wash Feature

    Direct wash This feature uses nozzles to help to wash bottles, glasses etc. directly. Alternatively, the nozzles can be unclipped and placed horizontally and used as an aid in washing the lower basket. When changing the direction of the nozzles, pay attention to their positions on the basket.

  • Page 18: Rinse Aid

    Rinse aid Rinse aid helps to ensure better quality wash results and increased drying performance. To fill the rinse aid compartment, open the rinse aid compartment lid. Fill the compartment with rinse aid to the MAX level and then close the lid. Be careful not to overfill the rinse aid compartment and ensure that you wipe up any spillages.
  • Page 19 Level Brightener Dose Indicator Rinse-aid not dispensed r1 is shown the on display. 1 dose is dispensed r2 is shown the on display. 2 doses are dispensed r3 is shown the on display. 3 doses are dispensed r4 is shown the on display. 4 doses are dispensed r5 is shown the on display.
  • Page 20 Dishwasher Baskets The middle basket has two different heights available, to allow for larger products in either the middle or lower basket. To raise or lower the middle basket: 1. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position (fig.
  • Page 21 Adjustable cup racks (Glass guard) The dishwasher is equipped with adjustable, soft rimmed, cup racks on the middle basket to allow long stemmed glasses to rest securely during washing, or stacking of smaller cups. The cup racks can also be folded up when not required to allow more space for larger items.

  • Page 22: Standard Loading And Test Data

    Standard Loading and Test Data Capacity • Middle and lower baskets: 15 place settings. • The middle basket should be adjusted to the lowest position. Detergent / Rinse aid • 5 + 25 cm , in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 5.

  • Page 23: Programme Listing

    Programme Listing Detergent A: 5cm³ Duration Programme Description B1: 15cm³ (min) B2: 25cm³ Fastest programme for lightly soiled and recently used dishes. Super quick A+B2 Suitable for 4 place settings. Quick 30’ For lightly soiled dishes and a quick wash. Eco (Reference) A+B2 Standard programme for normally soiled, daily-used dishes.

  • Page 24: Care And Maintenance

    Care and Maintenance Before beginning any care or maintenance, you should always disconnect the appliance from the electricity supply, and also turn off the water supply. Door seals fig. 14 Wipe the dishwasher door seals regularly with a damp cloth to remove any residues.
  • Page 25 Please note: Never run a programme without the filters in place. Incorrect fitting of the filters may reduce wash performance and potentially damage your appliance. Spray arms You should clean the spray arms at least once a month. 1. Remove the lower basket 2.
  • Page 26 • The filters of your machine might be blocked The waste water cannot be discharged • Restart the dishwasher and cancel the programme • If the error continues, contact CDA Customer Care • Contact CDA Customer Care Continual fill error • Close the tap •...
  • Page 27 Poor appliance earth (check mains electrical supply). Door tension not correctly adjusted for the decor The door is not opening or closing properly door. Light failure - Contact CDA Customer Care for The internal light is not working replacement Knocking or tapping noise during cycle...

  • Page 28: Electrical Information

    N.B. Ensure that the plug socket is situated in an easily accessible place. If the power supply cable or plug is damaged, it must be replaced by a CDA authorised agent. If the plug socket does not match the dishwasher plug, it must be replaced by the manufacturer or an authorised service agent in order to avoid a hazard.

  • Page 29: Installation

    Installation • Do not install this appliance if it is damaged in any way. Installing a damaged appliance may invalidate the warranty and could cause further damage to the surrounding area. • Do not hold the appliance by the door or control panel to move it as this may cause damage.
  • Page 30 There is a template supplied in the bag of fixings with detailed dia- grams on fitting the appliance. Figures 18 and 19 on page 31 show the recommended installations of our dishwashers. The set-ups in these figures should be mimicked wherever possible to help to ensure the best performance of the appliance.
  • Page 31 • Use the additional fitting template and kit supplied with the appli- ance to fit the appliance into the cabinetry, secure it and fit and secure the decor door. • Adjust the dishwasher door hinge tension as necessary to ensure the appliance door opens and closes properly and safely with the decor door attached.
  • Page 32 Fitting the integrated appliance door Where non-standard integrated appliance doors are supplied, Fitting template additional fitting instructions are required to ensure compatibility with this product. The machine is supplied with Fig. 21 a fitting template and these instructions should be followed as normal.
  • Page 33 Fitting the Perspex indicator Once your appliance is installed and the decor door has been fitted, you should fit the Perspex indicator. There is an instructional sheet supplied with the indicator strip but further information is below. 1. Remove the blue backing film from the indicator to reveal the adhesive side.
  • Page 34 IMPORTANT After completing the installation, test that the appliance fills and drains without issue on any programme. Below are two potential faults that you may encounter (displayed by programme indicator lights and/or fault code) and their potential causes. Inadequate water supply. Check that the Intensive Super Quick...
  • Page 35 FICHE Supplier's trade mark WC680 Supplier's model Capacity of dishwasher The energy e ciency class Annual energy consumption in kWh per year (AE ) ( 280 Cycle )* Energy consumption (E ) (kWh per cycle) 0,93 O mode power consumption (W) (P...
  • Page 36 For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu www.cda.eu...
