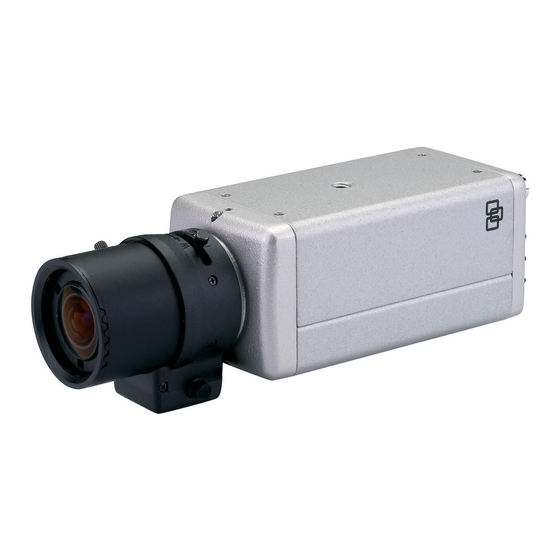

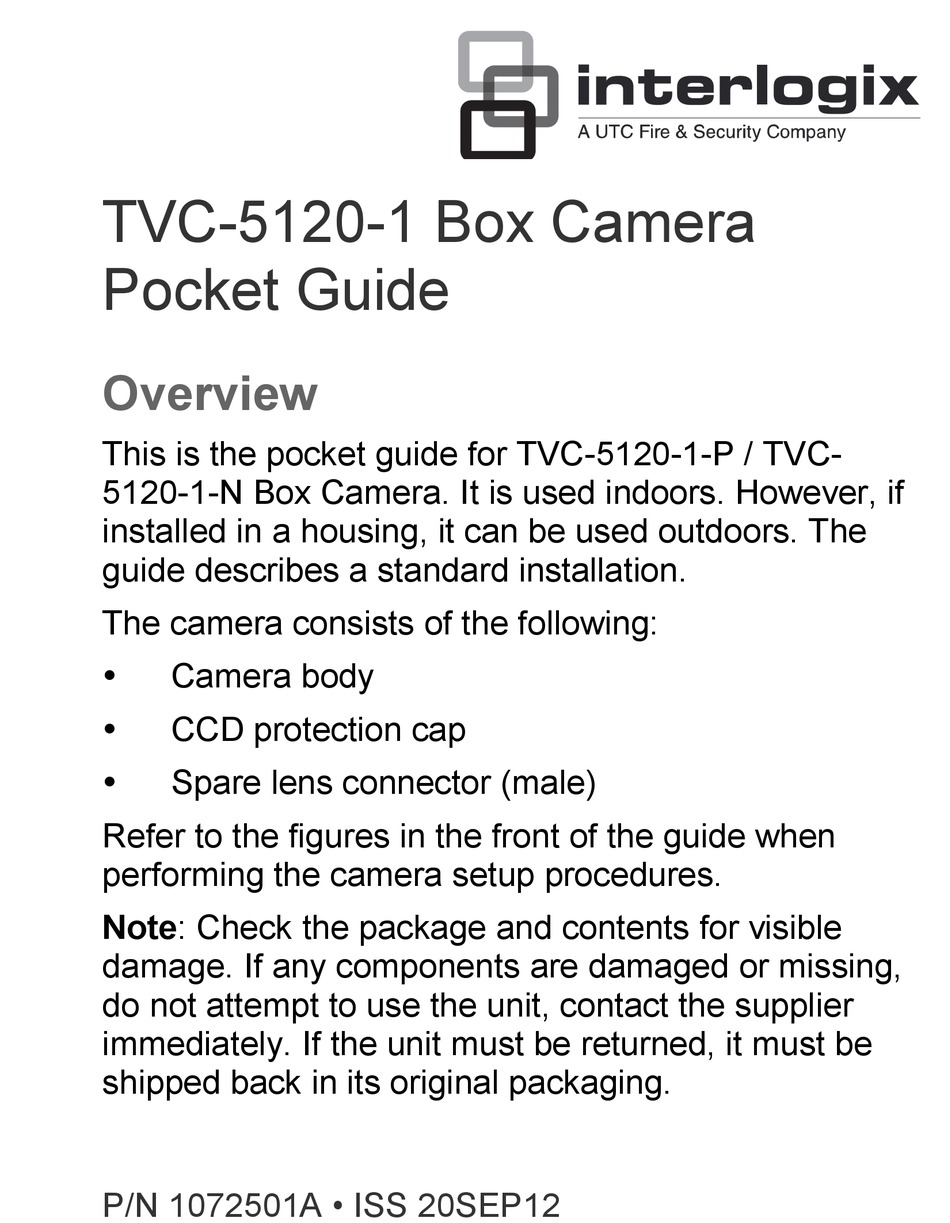

TVC-5120-1 Box Camera
Pocket Guide
Overview
This is the pocket guide for TVC-5120-1-P / TVC-
5120-1-N Box Camera. It is used indoors. However, if
installed in a housing, it can be used outdoors. The
guide describes a standard installation.
The camera consists of the following:
Camera body
CCD protection cap
Spare lens connector (male)
Refer to the figures in the front of the guide when
performing the camera setup procedures.
Note: Check the package and contents for visible
damage. If any components are damaged or missing,
do not attempt to use the unit, contact the supplier
immediately. If the unit must be returned, it must be
shipped back in its original packaging.
P/N 1072501A • ISS 20SEP12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Interlogix TVC-5120-1
Summary of Contents for Interlogix TVC-5120-1
- Page 1 TVC-5120-1 Box Camera Pocket Guide Overview This is the pocket guide for TVC-5120-1-P / TVC- 5120-1-N Box Camera. It is used indoors. However, if installed in a housing, it can be used outdoors. The guide describes a standard installation. The camera consists of the following: ...
- Page 2 1: Setting the lens mode Camera Autoiris lens connector Autoiris lens plug Lens (Autoris lens shown. Manual lens has no cable) C-mount adaptor DC-type autoiris lens leads: Damping coil positive (A) and negative (B), Driving coil positive (C) and negative (D)
- Page 3 2: Connecting power 3: Recommend DIP switch settings Fixed lens: DC iris lens:...
- Page 4 Installation To install the camera: Connect a coaxial cable terminated with BNC connectors between the VIDEO OUT connector of the camera and the video in connector on a monitor, multiplexer, switcher, or other standard video device. To attach the lens, please refer to the instructions that came with the lens.
- Page 5 Set the DIP switches. See the table below and Figure 3 on page 3 for the recommended settings. Item Description Remark Auto Iris For autoiris lens only, the shutter is fixed 1/50 (PAL) Auto For fixed lens. As the iris Electronic is fixed, the camera shutter...
-
Page 6: Specifications
305 g (0.67 lb.) Dimensions (H × W × L) 56 x 50 x 125 mm (2.2 x 4.9 x 4.95 in.) Contact information For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu. Regulatory information © 2012 UTC Fire & Security. All rights reserved. Manufacturer UTC Fire &... - Page 7 UTC Fire & Security B.V. Kelvinstraat 7, 6003 DH Weert, The Netherlands FCC compliance Class B: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 8 2004/108/EC. 2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
