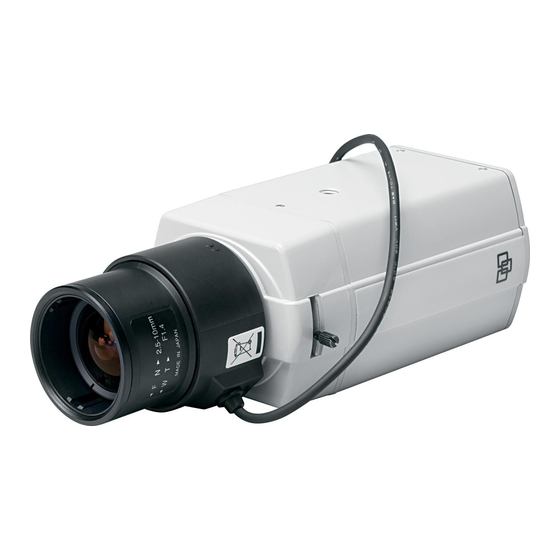

TVC-6110-1 / TVC-6120-1 Camera Quick Start
Guide
Introduction
This is the Quick Installation Guide for the TVC-6110-1-N(-P)/
TVC-6120-1-N(-P) camera.
Refer to the user manual for complete instructions on installing
and configuring this camera.
User guidelines
• Program the camera settings as much as possible before
mounting the camera. Take appropriate safety precautions
while completing programming after installation.
• Always use a 12 VDC or 24 VAC UL listed Class 2 power
supply to power the camera.
• Do not use the camera over the temperature range
specifications: -10°C to +50°C (14°F to 122°F)
• If the light source where the camera is installed
experiences rapid, wide- variations in lighting, the camera
may not operate as intended.
WARNING: To reduce the risk of fire or electronic shock, do
not expose the camera to rain or remove cover.
Description

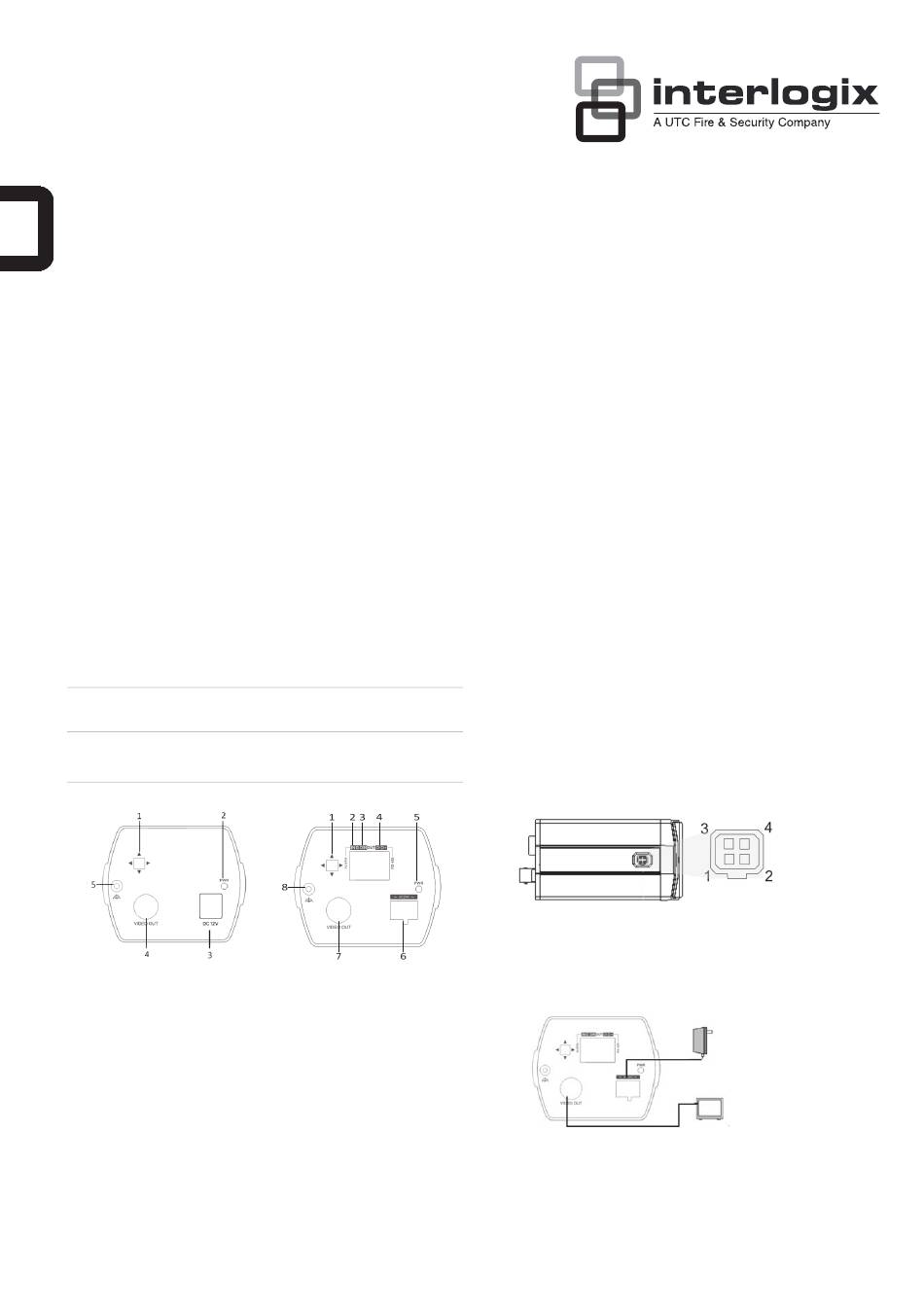

Figure 1: Camera description
TVC-6110-1-N(-P)
1. OSD control button
2. Power LED
3. 12 VDC Power
4. Video output
5. Ground
© 2012 UTC Fire & Security. All rights reserved.
TVC-6120-1-N(-P)
1. OSD control button
2. Alarm output/Ground
3. D/N switch (3.3V)
4. RS-485 ports (D+, D-)
5. Power LED
6. 12 VDC/24 VAC dual power
7. Video output
8. Ground
Installation
Please check the package contents and make sure that the
device in the package is in good condition and all the assembly
parts are included.
The camera is designed for both indoor and outdoor use. To
use the camera outdoors, it must be installed in an approved
outdoor housing.
Note: Before installing, please ensure that the mounting
surface is strong enough to withstand three times the weight of
the camera. If the wall is not strong enough, the camera may
fall and cause serious damage.
Install the camera
1. Attach the lens.
Refer to the instructions that came with the lens you
purchased for complete installation instructions of that
lens.
Screw the lens clockwise onto the lens mount of the
camera. Take care to prevent dust from entering between
the lens mount and the lens.
For optimal performance, please use an auto iris lens.
Plug the auto-iris drive cable to the 4-pin interface on the
side of the camera. The 4 pins are: 1. Damper -; 2.
Damper+; 3. Drive+; 4. Drive-
2. Connect the cables.
Connect a coaxial cable from the camera's BNC connector
to a CCTV monitor or video recording device. Connect a
12 VDC or 24 VAC power supply to the power input.
1 / 2
Power supply
Monitor
