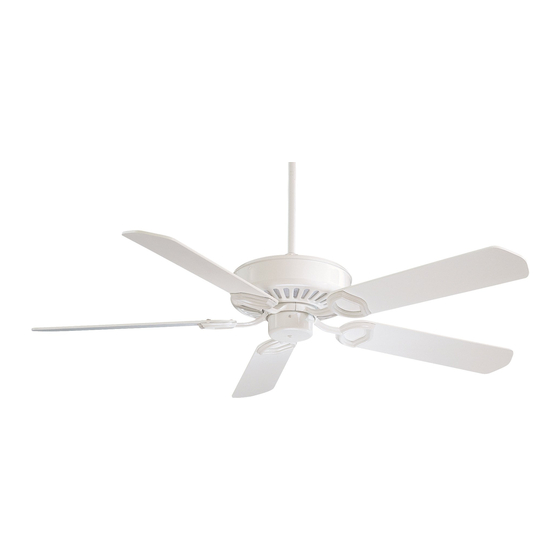

- Page 1 ULTRA INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
- Page 3 Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in the original installation.
- Page 4 This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the fan was not designed.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................BLADE INSTALLATION................PACKAGE CONTENTS..............ATTACHING THE SWITCH CUP............INSTALLING THE FAN..............OPERATING THE REMOTE CONTROL/WALL CONTROL ..HANGING THE FAN................. CARE OF YOUR FAN................ELECTRICAL CONNECTIONS............TROUBLESHOOTING................INSTALLING THE WALL TRANSMITTER......... SPECIFICATIONS..................FINISHING THE INSTALLATION..........1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267... -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (5) 13. Extra Wall Plate w/2 Mounting screws 14. Receiver (includes 6 wire nuts) 2. Hanger bracket 15. Balancing kit 3. Canopy 4. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING MOUNTING OPTIONS (MIN. 2" THICK) JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan. - Page 11 DOWNROD CANOPY OUTLET BOX COUPLING *OMIT COUPLING DOWNROD CROSS PIN COVER WHEN USING SET SCREWS THE MINIMUM-LENGTH HITCH CANOPY COVER DOWNROD LOCK HANGER SUPPLY REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig. 6 Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is Step 2. Motor to Receiver Electrical Connections: Connect the WHITE turned off at the main fuse or breaker box before wiring. wire from the fan to the WHITE wire marked "TO MOTOR N" from the Receiver. - Page 13 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from RECEIVER the receiver.
- Page 14 INPUT AC120V OUTLET BOX *Wall Control Only WHITE (NEUTRAL) BLACK (HOT) WHITE GREEN OR BARE AC SUPPLY COPPER (GROUND) BLACK ("AC IN L") BLACK WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") ORANGE GROUND (CONNECT TO GROUND- (FOR UPPER LIGHT) GROUND WIRE ON...
-
Page 15: Installing The Wall Transmitter
INSTALLING THE WALL TRANSMITTER (Wall Control Only) WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2. -
Page 16: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Slide the Canopy up over the hanger bracket and place the keyholes from the canopy over the two screws from the hanger bracket. Rotate Canopy until it locks at the narrow section of the HANGER keyholes. -
Page 17: Blade Installation
BLADE INSTALLATION THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE LIGHT KIT. SCREWS Caution: Remove 5 rubber packing mounts and discard before FIBER installation. WASHERS Step 1. Attach the fan blade to the blade holder using the BLADE screws and fiber washers provided. Tighten screws securely. Repeat process for remaining blades.(Fig. -
Page 18: Attaching The Switch Cup
ATTACHING THE SWITCH CUP Remove the screws from the switch cup plate. Slide switch cup up against plate and rotate it until the screw holes are aligned. Secure switch cup to plate using the screws removed earlier. (Fig. 18) NOTE: DO NOT PINCH WIRES BETWEEN THE SWITCH HOUSING AND THE SWITCH CUP PLATE. SWITCH CUP PLATE SCREWS... -
Page 19: Operating The Remote Control/Wall Control
OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. D. OFF-ON Slide Button (Wall Control Fans Only) instructions apply to ceiling fans that feature a DOWN This button turns the power Off and On to the Fan and light (... - Page 20 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: To change the direction of the rotation of the blades the fan must be in operation mode. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 19.
-
Page 21: Care Of Your Fan
CARE OF YOUR FAN 4. Use a lint free lightly damp cloth or duster to remove dust from Here are some suggestions to help maintain your fan. the blades. 1. Because of the fan's natural movement some connections may become 5. -
Page 22: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM SYMPTOM SYMPTOM Fan Wobble Fan will not start Fans/Light Turn On Fan Sounds Noisy SOLUTION and Off Unexpectedly SOLUTION SOLUTION Check to make sure the wall switch is turned NOTE: All blade sets are grouped by Allow a 24-hour "break in" SOLUTION weight. - Page 23 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 24: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the 0.30 11.1 1852 light(s). 10.7 11.8 54" Medium 0.44 27.3 3636.83 kgs 1.65' 0.65 78.1... - Page 25 1852 11.1 166.92 27.3 133.22 3636.83 7077.09 78.1 90.62...
