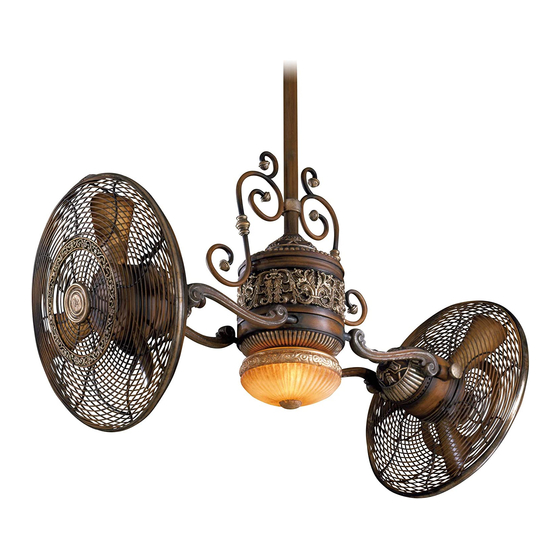

TRADITIONAL GYRO
U.S. Patents: D523,548; D523,549; D523,550; D523,983; D524,438; D526,059; D526,400;
D526,712; D530,810; D532,097; D567,350; 6,832,902; 7,183,680; 7,229,255
© 2004 Minka Lighting, Inc.
INSTRUCTION MANUAL WARRANTY CERTIFICATE
BY
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Traditional Gyro and is the answer not in the manual?

Questions and answers

Related Manuals for Minka-Aire Traditional Gyro

Summary of Contents for Minka-Aire Traditional Gyro

  • Page 1 TRADITIONAL GYRO U.S. Patents: D523,548; D523,549; D523,550; D523,983; D524,438; D526,059; D526,400; D526,712; D530,810; D532,097; D567,350; 6,832,902; 7,183,680; 7,229,255 © 2004 Minka Lighting, Inc. INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 This is a limited warranty. Minka-Aire's only obligation under this limited warranty is to replace or repair, or refund the purchase price, in Minka-Aire's sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this limited warranty.
  • Page 4 This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.

  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES..................INSTALLING THE LIGHT BULB AND GLASS SHADE..... PACKAGE CONTENTS..............ADJUSTING THE TILT ANGLE..............INSTALLING THE FAN..............OPERATING YOUR REMOTE CONTROL/WALL TRANSMITTER... HANGING THE FAN................. CARE OF YOUR FAN..................ELECTRICAL CONNECTIONS............TROUBLESHOOTING................. INSTALLING THE WALL TRANSMITTER......... SPECIFICATIONS..................FINISHING THE INSTALLATION..........LISTED E75795 1151 W.

  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 ATTENTION: ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically. NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.

  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan motor assembly 13. Receiver with 6 wire nuts Hanger bracket plate 14a. Wall transmitter Incl. 2 mounting Hanger bracket screws and 3 wire nuts 4.

  • Page 9: Installing The Fan

    SUPPORT (OPTIONAL) To hanger your fan where there is an existing fixture but no ceiling joist, you may need to HANGER ® install a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer.) OPENING must be FACING...

  • Page 10: Hanging The Fan

    HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 3. Secure hanger bracket to hanger bracket plate using the two hex hanger bracket and hanger ball have been provided for your safety and nuts and washers provided, make sure nuts are securely tighten. (Fig. 7) the proper installation of your new ceiling fan.
  • Page 11 NOTE: DO NOT INSTALL THE COUPLING COVER AND DECORATIVE RING IF YOU PLAN TO USE THE MINIMUM LENGTH DOWNROD. Step 8. Now lift motor assembly into position and place hanger ball into hanger bracket. Rotate until the check groove has dropped into the registration slot and seats firmly.
  • Page 12 INSTALLING THE DECORATIVE HOOKS SCROLL ARMS DOWNROD 1. Align the key-slot holes in the decorative scrolls with the pins in CANOPY COUPLING DECORATIVE the motor housing, push down to *OMIT COUPLING SCROLL COVER WHEN USING engage the locking mechanism, THE MINIMUM-LENGTH CANOPY COVER carefully slip the decorative scroll HOLES...

  • Page 13: Electrical Connections

    ELECTRICAL CONNECTIONS Step 2. Motor to Receiver Electrical Connections: Connect the WHITE WARNING: To avoid possible electrical shock be sure electricity is wire from the fan to the WHITE wire marked "TO MOTOR N" from the turned off at the main fuse or breaker box before wiring. Receiver.
  • Page 14 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
  • Page 15 INPUT AC120V OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) WHITE GREEN OR BARE AC SUPPLY COPPER (GROUND) BLACK ("AC IN L") BLACK WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") GRAY GROUND (CONNECT TO GROUND- (FOR CENTER MOTOR) GROUND WIRE ON (GREEN) HANGER BRACKE...

  • Page 16: Installing The Wall Transmitter

    INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2.

  • Page 17: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Slide the canopy up to ceiling and over the two screws on hanger bracket. Rotate canopy clockwise, next, while holding the canopy with one hand, slide the canopy cover OUTLET BOX over the screws and rotate counter-clockwise until tight. HANGER Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.

  • Page 18: Installing The Light Bulb And Glass Shade

    INSTALLING THE LIGHT BULB AND GLASS SHADE WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint- free, cotton cloth.
  • Page 19 To install the metal light cap follow Step 2. above. To remove the metal light cap, you must first press and then turn counterclockwise, the custom built in spring mechanism inside the light plate will push the metal light cap out of the light plate. (Fig. 21) 100 W HALOGEN BULB GLASS...

  • Page 20: Adjusting The Tilt Angle

    ADJUSTING THE TILT ANGLE Step 1. Pull the "PULL" knob out to unlock the fan, tilt the fan body to desired location, push back the "PULL" knob to lock the fan. (Fig. 22) Fig. 22...
  • Page 21 OPERATING THE REMOTE CONTROL/WALL TRANSMITTER Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D. OFF-ON Slide Button (Wall Control Fans Only) This button turns the power Off and On to the Fan and light ( button) only or ceiling fans that feature an UP Buttons: Light(s).
  • Page 22 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. Warm Weather (fans tilted dowards) A DOWNWARD airflow creates a cooling effect as shown in Figure 23. This allows you to set your air conditioner on a warmer setting without affecting your comfort.

  • Page 23: Care Of Your Fan

    CARE OF YOUR FAN 4. Use a lint free lightly damp cloth or duster to remove dust from Here are some suggestions to help maintain your fan. the blades. 1. Because of the fan's natural movement some connections may become 5.

  • Page 24: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers.
  • Page 25 SYMPTOM SYMPTOM Fan Wobble Lights shut off and will not come back on. SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Because wood and This unit is equipped with a wattage limiting device. Lamping in plastic blades vary in density, the fan may wobble even though excess of 190 watts will disable your ceiling fan’s light kit.
  • Page 26 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.

  • Page 27: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 120 0.70 2900 17.61 21.78 5.84' 14" Medium 0.80 3400 0.85...
