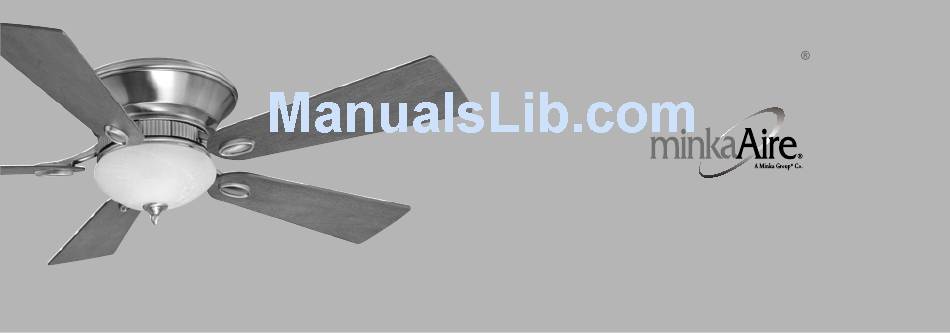

DELANO II
BY
U.S. Patents: D595,403; D597,655
INSTRUCTION MANUAL WARRANTY CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELANO II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minka-Aire DELANO II

Summary of Contents for Minka-Aire DELANO II

  • Page 1 DELANO II U.S. Patents: D595,403; D597,655 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in the original installation.
  • Page 4 This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the fan was not designed.

  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES..................INSTALLING THE MOUNTING PLATE..........PACKAGE CONTENTS..............INSTALLING THE LIGHT KIT............... INSTALLING THE MOUNTING BRACKET......INSTALLING THE LIGHT BULBS AND GLASS SHADE ... ELECTRICAL CONNECTIONS............OPERATING THE REMOTE CONTROL/WALL CONTROL..INSTALLING THE WALL TRANSMITTER........ CARE OF YOUR FAN................FINISHING THE INSTALLATION..........

  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.

  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: A. Mounting hardware: 1. Fan Blades (5) #10 x 1.5" Wood screws (2) 2. Mounting bracket 3. Fan motor ass'y #8 x 3/4" Machine screws (2) 4.

  • Page 9: Installing The Mounting Bracket

    INSTALLING THE MOUNTING BRACKET Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. OUTLET BOX WARNING: All of the parts, hardware and components have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied by MOUNTING BRACKET Minka Aire®...

  • Page 10: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is Caution! The dip switches on the receiving unit are covered with a rubber cover, remove the rubber cover and then have it replaced after making any turned off at the main fuse or breaker box before wiring. changes to the dip switches.
  • Page 11 INPUT AC120V OUTLET BOX WHITE WHITE (NEUTRAL) BLACK (HOT) AC SUPPLY GREEN OR BARE BLACK COPPER (GROUND) BLACK ("AC IN L") WHITE ("AC IN N") RECEIVER GROUND BLACK BLACK Fig. 2 Fig. 3 Fig. 4...

  • Page 12: Installing The Wall Transmitter

    INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2.

  • Page 13: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Move fan into position over the four mounting screws and secure with the provided washers and nuts. (Fig. 6) STUDS Step 2. Raise the motor housing up against the mounting bracket, the four supports inside the housing should be placed against the four studs on mounting SCREWS bracket, twist the housing clockwise until snug.

  • Page 14: Blade Installation

    BLADE INSTALLATION THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE GLASS SHADE. SCREWS Step 1. Attach the fan blade and medallion to the blade RUBBER holder using the screws and rubber washers provided. Tighten WASHERS screws securely. Repeat process for remaining blades.(Fig. 8) BLADE HOLDER BLADE HOLDER Step 2.

  • Page 15: Installing The Mounting Plate

    INSTALLING THE MOUNTING PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes.

  • Page 16: Installing The Light Kit

    INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. 1. Raise and hold the light kit close to the mounting plate and proceed to do the wire connections. Connect the white wire connectors from the light kit and fan, follow the same procedure with the black wire connector from the fan and the black wire connector from the light kit.

  • Page 17: Installing The Light Bulbs And Glass Shade

    INSTALLING THE LIGHT BULBS & GLASS SHADE WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton cloth.

  • Page 18: Operating The Remote Control/Wall Control

    OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. D. OFF-ON Slide Button (Wall Control Fans Only) instructions apply to ceiling fans that feature a DOWN This button turns the power Off and On to the Fan and light (...
  • Page 19 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: To change the direction of the rotation of the blades the fan must be in operation mode. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 13.

  • Page 20: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 1. Because of the fan's natural movement some connections may become 4. There is no need to oil your fan. The motor has permanently lubricated loose. Check the support connections, brackets and blade attachments bearings.

  • Page 21: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM SYMPTOM SYMPTOM Fan will not start Fan Wobble Fan Sounds Noisy Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION SOLUTION Check to make sure the wall switch is NOTE: All blade sets are grouped by Allow a 24-hour "break in" period. SOLUTION turned on.
  • Page 22 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.

  • Page 23: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 0.34 1976 11.25 12.89 2.61' 52" Medium 0.51 3899 0.58 5634...
