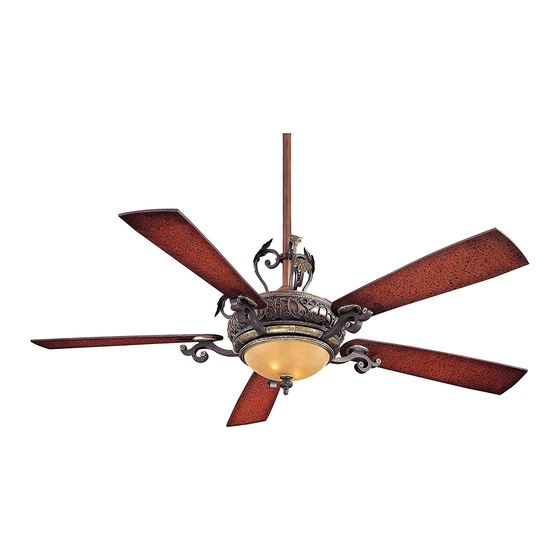

NAPOLI

U.S. Patents D513,532; D514,685; D514,690; D516,702; D521,627; D522,122

INSTRUCTION MANUAL WARRANTY CERTIFICATE

Table of Contents

Need help?

Do you have a question about the Napoli and is the answer not in the manual?

Questions and answers

Summary of Contents for Minka-Aire Napoli

Page 1 NAPOLI U.S. Patents D513,532; D514,685; D514,690; D516,702; D521,627; D522,122 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
Page 3 You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire along with proof of purchase, your name ® and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the ®...
Page 4 The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs. This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and Minka-Aire ®...
Page 5: Table Of Contents
SAFETY FIRST ATTACHING THE BLADES CONTENTS PACKAGE CONTENTS INSTALLING THE LIGHT KIT & GLASS SHADE BEGIN INSTALLATION OPERATING THE WALL TRANSMITTER HANGING THE FAN CARE OF YOUR FAN ELECTRICAL CONNECTIONS TROUBLESHOOTING INSTALLING THE WALL TRANSMITTER SPECIFICATIONS FINISHING THE INSTALLATION 1151W. Bradford Court, Corona CA 92882 For Customer Assistance Call: 1-800-307-3267...
Page 6: Safety First
SAFETY FIRST 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2.Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
Page 7 ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan’s light kit will shut off automatically. NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
Page 8: Package Contents
PACKAGE CONTENTS 1. Fan motor housing ceiling mounting only) M6.5x89mm wood screws 2. Decorative scroll 13. Halogen bulb (3 pcs) 3a. Hanger bracket plate 14a.Wall plate (includes 2- Ø6.5x19mm Flat washers 3b. Hanger bracket 6x8mm mounting screws) (3 pcs) 4. Fan blade (5 pcs) 14b.Wall Transmitter Incl.
Page 9: Begin Installation
To hang your fan where there is an existing fixture but no ceiling joist,you may need OUTLET BOX MUST BRACKET BE FACING to install a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer). ® Fig.3 UP-SIDE...
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 3. Secure hanger bracket to hanger bracket plate using the two hex hanger bracket and hanger ball have been provided for your safety and nuts and washers provided, make sure nuts are securely tighten. (Fig. 7) the proper installation of your new ceiling fan.
Page 11 OUTLET BOX HANGER HANGER BRACKET DOWNROD BRACKET PLATE CROSS PLATE HANGER SET SCREW SET SCREW BALL FLAT WASHER FLAT SET SCREW WASHER SPRING WASHER STAR WASHER HITCH PIN HEX NUT LOCK PIN WRENCH WOOD REGISTRATION SCREW HANGER SLOT BRACKET DECORATIVE Fig.6 Fig.7 Fig.10...
Page 12 HANGER Step 7. Carefully feed fan wires up through the downrod. (Fig. 11) Thread BALL Downrod into the Coupling until the holes are lined up and secure with CANOPY COVER CANOPY the Lock Pin and Hitch Pin previously removed, tighten Set Screws. (Fig. DECORATIVE Step 8.
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS WARNING:To avoid possible electrical shock be sure electricity is turned Receiver. Connect the BLACK wire from the fan to the BLACK wire off at the main fuse or breaker box before wiring. marked "TO MOTOR L" from the Receiver. Connect the BLUE wire from the fan to the BLUE wire marked "For Light"...
Page 14 Step 4.If your outlet box has a GROUND wire (Green or Bare Copper) connect this wire to the Hanger Ball OUT LET and Hanger Bracket Ground wires. If your outlet box WALL CONTROL does not have a Ground Wire, then connect the Hanger RECEIVER Ball and Hanger Bracket Ground Wires together.
Page 15: Installing The Wall Transmitter
INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2.
Page 16: Finishing The Installation
FINISHING THE INSTALLATION Slide the Canopy up over the Hanger Bracket and place the keyholes from Canopy HANGER BRACKET over the two screws from the Hanger Bracket. Rotate Canopy until it locks at the narrow section of the keyholes. While holding the Canopy in place with one hand, slide the Canopy Cover over the screw heads and rotate until snug.
Page 17: Attaching The Blades
ATTACHING THE BLADES FOLLOWING OPERATION MUST ACCOMPLISHED BEFORE INSTALLING THE LIGHT KIT. Step 1. Attach the fan blades to the blade holders using the screws & fiber washers provided. (Fig 19). 3/16"X1/2" SCREW Step 2. Remove one of the three screws from the FIBER light support plate and loosen the other two (do not WASHER...
Page 18: Installing The Light Kit & Glass Shade
INSTALLING THE LIGHT KIT & GLASS SHADE Attention: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan’s light kit will shut off automatically. Warning:Shut off the power supply before removing or replacing lamp.
Page 19 OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control fans only: Install the A23, 12v battery (included) . To prevent damage to transmitter remove the battery if not used for long periods of time. REPLACE THIS ENTIRE PAGE c o n t r o l t h e b r i g h t n e s s s e t t i n g s o f t h e feature that allows the light to remain at the same brightness as the last time it was turned off.
Page 20: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. blades. 1. Because of the fan's natural movement some connections may become 5. There is no need to oil your fan. The motor has permanently loose. Check the support connections, brackets and blade attachments lubricated bearings.
Page 21: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM SYMPTOM SYMPTOM Fan Wobble Fan will not start Fan will not start Lights shut off and will not come back on. SOLUTION SOLUTION SOLUTION SOLUTION 1.NOTE: All blade sets are grouped by 1. Allow a 24-hour "break in" 1.Check to make sure the wall switch is turned on.
Page 22 SYMPTOM SYMPTOM Frequency interference Lights shut off andw- ill not come back on. SOLUTION SOLUTION 1.Turn the power off to your ceiling fan. 1. This unit is equipped with 2.lease use a small size tool to change the frequency setting on the control system. 3.Return power to the unit Note: After the AC power is on,do not press any other a wattage limiting device.
Page 23: Specifications
Wattage used by the light (s). 68" 0.66 51.8 3600 20.8 23.85 5.28' High 0.93 106.2 5500 For any additional information about your Minka-Aire Ceiling Fan,please write to: ® 1151 W.Bradford Court, Corona, CA 92882 For customer assistance call:1-800-307-3267 MKA9013108...
Page 24 English Verison...
