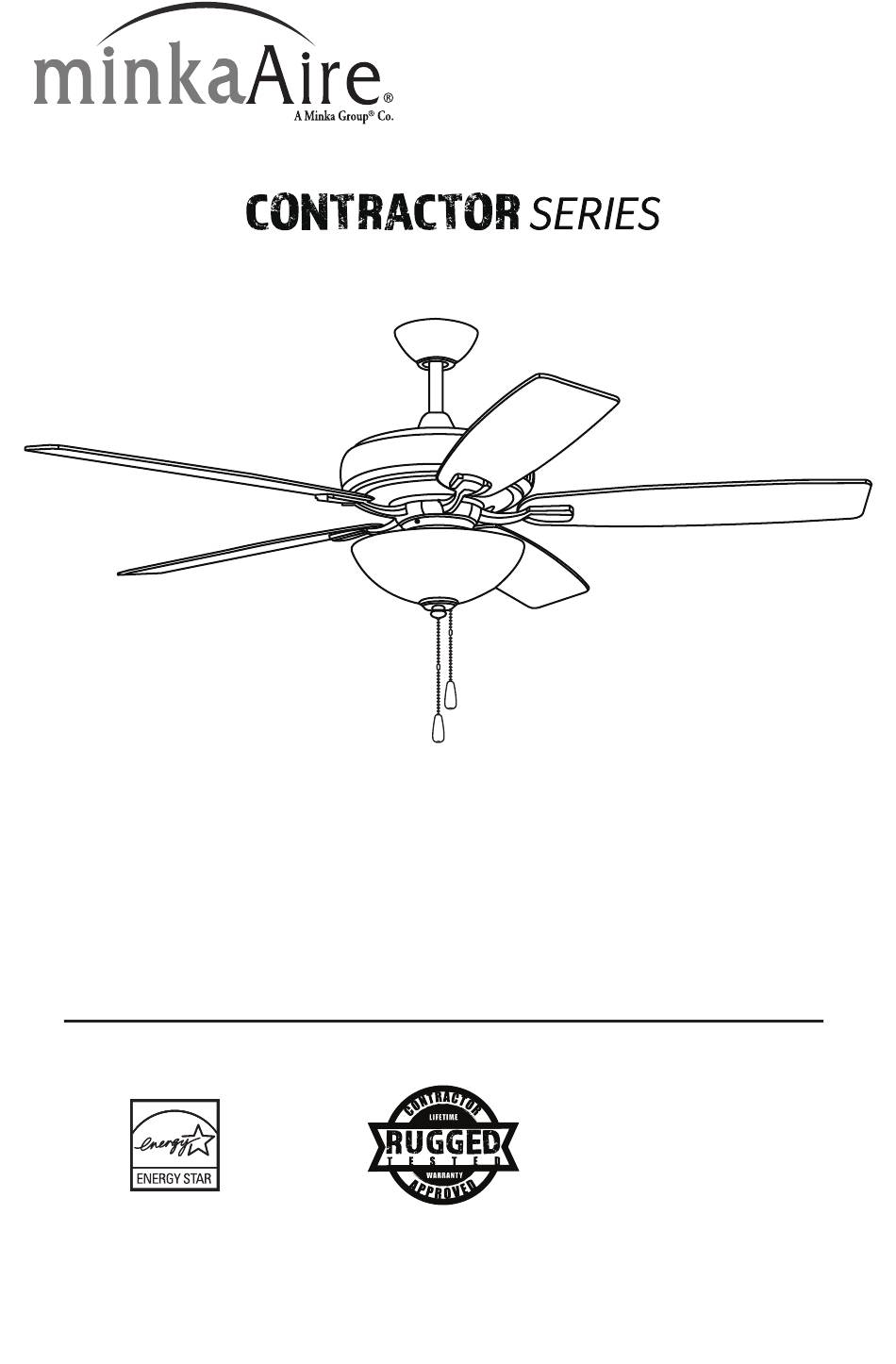

- Page 1 Model No. F552L WATT II TACTICAL TO PRACTICAL INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 This product is protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws. ©2020 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim. Replacement is subject to availability of the same model.
-
Page 4: Table Of Contents
CONTENTS SAFETY RULES............................. PACKAGE CONTENTS..........................INSTALLING THE FAN..........................HANGING THE FAN..........................ELECTRICAL CONNECTIONS........................ FINISHING THE INSTALLATION......................BLADE INSTALLATION..........................INSTALLING THE MOUNTING PLATE....................INSTALLING THE LIGHT KIT........................ INSTALLING THE LIGHT BULBS & GLASS SHADE ..............OPERATING YOUR FAN......................... CARE OF YOUR FAN..........................TROUBLESHOOTING.......................... -
Page 5: Safety Rules
SAFETY RULES Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. -
Page 6: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Mounting hardware: Hanger bracket #10 x 1.5" Wood screws (2 PCs.) Canopy #8 x 3/4" Machine screws (2 PCs.) Canopy cover Lock washers (2 PCs.) Downrod assembly 4mm Star washers (2 PCs.) Coupling cover... -
Page 7: Installing The Fan
Fig. 2 proper blade clearance when installing on a steep, sloped ceiling. Longer downrods are available from ANGLED CEILING PROVIDE ® your Minka-Aire dealer. MAXIMUM 18 ANGLE STRONG SUPPORT To hang your fan where there is an existing fixture HANGER... -
Page 8: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied ®... - Page 9 Slip coupling cover, canopy cover Step 5. and canopy onto downrod. (Fig. 9) Carefully reinstall hanger ball DOWNROD onto rod being sure that cross CANOPY pin is in the correct position, set screws are tighten and wires are CANOPY COVER COUPLING COVER not twisted.
-
Page 10: Electrical Connections
(Fig. 11) Step 3. Figure 12 & 13 Illustrate the wiring connections using optional wall unit. ® (Available at your Minka-Aire Retailer.) NOTE: If a light kit is not included with your fan, one can be purchased at your ®... - Page 11 FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH. HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) CEILING LIGHT SWITCH WALL WHITE (NEUTRAL) BLUE (OPTIONAL LIGHT) GROUND BLACK (MOTOR) (CONNECT TO GROUND WIRE ON HANGER BRACKET IF NO HOUSE GROUND WIRE EXISTS.) WIRING OPTION 1...
-
Page 12: Finishing The Installation
FINISHING THE INSTALLATION Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the Step 1. other one half a turn from the screw head. Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 13: Blade Installation
BLADE INSTALLATION Attach the fan blade to the blade bracket using the screws and fiber Step 1. washers provided. Tighten screws securely.Repeat for remaining blades. (Fig. 15) Step 2. Align holes in blade bracket and motor and secure with properscrews. Repeat process with the other blade bracket. -
Page 14: Installing The Light Kit
INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Remove the 3 screws from the mounting plate. Step 2. Place the light kit attached close to the mounting plate, firmly snap the wire molex together. -
Page 15: Installing The Light Bulbs & Glass Shade
INSTALLING THE LIGHT BULBS & GLASS SHADE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Install 2 x 9W LED bulbs (included). Step 2. Remove the decorative nut, glass cap and nut from the light kit. Place the glass shade over the light kit stem. -
Page 16: Operating Your Fan
OPERATING YOUR FAN Restore power to ceiling fan and test for proper operation. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc. The Reverse switch is located on the switch cup. Slide the switch to the Left for warm weather operation. -
Page 17: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 1. Because of the fan's natural movement some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from the ceiling). 2. -
Page 18: Troubleshooting
TROUBLESHOOTING SYMPTOM - Fan will not start SOLUTION Check fuses or circuit breakers. Check line wire connections to fan and switch wire connections in switch housing. CAUTION: Make sure main power is off. Check to make sure the reverse is set to one side. If switch is located in the middle it might not make proper contact. -
Page 19: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light(s). Fan Size Speed Volts Amps Watts N.W. G.W. C.F. 0.10 4.58 00.00 0.00' 60” High 0.40 29.76 PERFORMANCE AND ENERGY INFORMATION Estimated Airflow 4,381...
