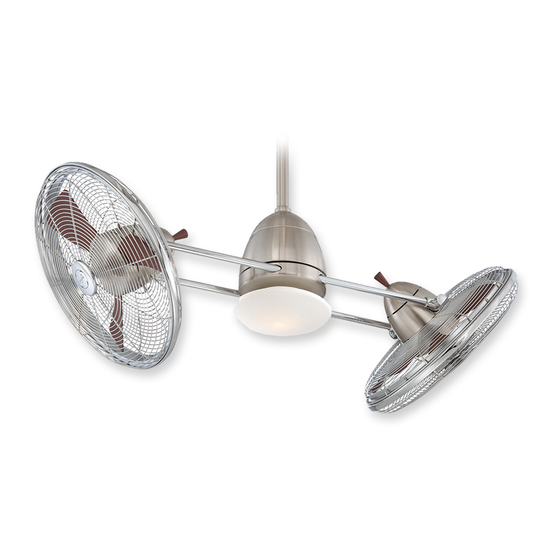

Minka-Aire Gyro Instruction Manual

Ceiling fan
Hide thumbs

Advertisement

Table of Contents

GYRO
TM
BY
U.S. Patents: D478,975; D489,443; D489,809; D490,146
6,832,902; 7,183,680; 7,229,255
INSTRUCTION MANUAL WARRANTY CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gyro and is the answer not in the manual?

Questions and answers

Anthony Rodriguez
May 25, 2025

My fan blades will not turn on with remote, but my fan light turns on and off by the remote, as well as the fans rotation around the down light turns on and off by the remote.

0
1 comments:
Mr. Anderson
May 26, 2025

If the Minka-Aire Gyro fan blades do not turn on with the remote, but the fan light and rotation function work, the issue could be a bad receiver or a loose center motor wire connection. Check the receiver connections in the fan canopy. If connections are secure, connect the gray wire from the fan to the black wire from the receiver and test. If blades spin, the receiver is faulty. If not, the center motor may be bad.

This answer is automatically generated

0
Natalie Macke
July 28, 2025

The rotation function works and I can get it to go counter clockwise, but the fan blades in each of the independent baskets will only go clockwise. How do I get the blades to switch to counter clockwise?

0
Karen Rainville
July 28, 2025

I have the Minka Air Gyro Rotating fan for about 4 years now. I’ve been leaving it on almost constantly lately due to the high humidity on my screened patio, hoping to keep dampness to a minimum. I just noticed that it’s making a slight catching sound. Does the fan need oil or some type of lubricant periodically? Thank you

User image 6887629d89dc7
0
Wally Treu
July 12, 2025

The fan makes a squeaking sound when rotation is turned on

User image 687247bf9b0d7
0

Related Manuals for Minka-Aire Gyro

Summary of Contents for Minka-Aire Gyro

  • Page 1 GYRO U.S. Patents: D478,975; D489,443; D489,809; D490,146 6,832,902; 7,183,680; 7,229,255 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 This is a limited warranty. Minka-Aire's only obligation under this limited warranty is to replace or repair, or refund the purchase price, in Minka-Aire's sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this limited warranty.
  • Page 4 This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.

  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES..................INSTALLING THE LIGHT BULB AND GLASS SHADE......PACKAGE CONTENTS..............ADJUSTING THE TILT ANGLE................ INSTALLING THE FAN..............OPERATING YOUR REMOTE CONTROL/WALL TRANSMITTER... HANGING THE FAN................. CARE OF YOUR FAN..................ELECTRICAL CONNECTIONS............TROUBLESHOOTING..................INSTALLING THE WALL TRANSMITTER......... SPECIFICATIONS....................FINISHING THE INSTALLATION..........1151 W.

  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 ATTENTION: ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically. NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.

  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan motor assembly 12a. Wall transmitter Incl. 2 mounting screws and 3 wire nuts 2. Hanger bracket 12b. Wall plate w/2 mounting screws 3. Canopy 13.

  • Page 9: Installing The Fan

    To hang your fan where there is an existing fixture but no ceiling joist, you may need to install OUTLET BOX UPSIDE HANGER RECESSED BRACKET OUTLET BOX a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer). FIG. 3 FIG. 4...

  • Page 10: Hanging The Fan

    HANGING THE FAN Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan.
  • Page 11 DOWNROD CANOPY OUTLET BOX COUPLING *OMIT COUPLING DOWNROD CROSS PIN COVER WHEN USING SET SCREWS THE MINIMUM-LENGTH CANOPY COVER HITCH DOWNROD LOCK HANGER SUPPLY DECORATIVE RING REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig.

  • Page 12: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is Step 2. Motor to Receiver Electrical Connections: Connect the WHITE turned off at the main fuse or breaker box before wiring. wire from the fan to the WHITE wire marked "TO MOTOR N" from the Receiver.
  • Page 13 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
  • Page 14 INPUT AC120V OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) WHITE GREEN OR BARE AC SUPPLY COPPER (GROUND) BLACK ("AC IN L") BLACK WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") GRAY GROUND (CONNECT TO GROUND- (FOR CENTER MOTOR) GROUND WIRE ON (GREEN) HANGER BRACKE...

  • Page 15: Installing The Wall Transmitter

    INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2.

  • Page 16: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Slide the canopy up to ceiling and over the two screws on hanger bracket. Rotate OUTLET BOX canopy clockwise, next, while holding the canopy with one hand, slide the canopy cover over the screws and rotate counter-clockwise until tight. HANGER BRACKET Note;...

  • Page 17: Installing The Light Bulb And Glass Shade

    INSTALLING THE LIGHT BULB AND GLASS SHADE WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton cloth.
  • Page 18 To install the metal light cap follow Step 2. above. To remove the metal light cap, you must first press and then turn counterclockwise, the custom built in spring mechanism inside the light plate will push the metal light cap out of the light plate. (Fig. 18) 100 W HALOGEN BULB METAL...

  • Page 19: Adjusting The Tilt Angle

    ADJUSTING THE TILT ANGLE Step 1. Pull the "PULL" knob out to unlock the fan, tilt the fan body to desired location, push back the "PULL" knob to lock the fan. (Fig. 19) Fig. 19...
  • Page 20 OPERATING THE REMOTE CONTROL/WALL TRANSMITTER Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D. OFF-ON Slide Button (Wall Control Fans Only) This button turns the power Off and On to the Fan and light ( button) only or ceiling fans that feature an UP Buttons: Light(s).
  • Page 21 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. Warm Weather (fans tilted dowards) A DOWNWARD airflow creates a cooling effect as shown in Figure 20. This allows you to set your air conditioner on a warmer setting without affecting your comfort.

  • Page 22: Care Of Your Fan

    CARE OF YOUR FAN 4. Use a lint free lightly damp cloth or duster to remove dust from the Here are some suggestions to help maintain your fan. blades. 1. Because of the fan's natural movement some connections may become 5.

  • Page 23: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers.
  • Page 24 SYMPTOM SYMPTOM Fan Wobble Lights shut off and will not come back on. SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Because wood and This unit is equipped with a wattage limiting device. Lamping in excess of 190 watts will disable your ceiling fan’s light kit. To reset plastic blades vary in density, the fan may wobble even though blades are matched.
  • Page 25 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.

  • Page 26: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 0.70 2900 17.69 13.42 6.15' 14" Medium 0.80 3400 0.84 1350...
