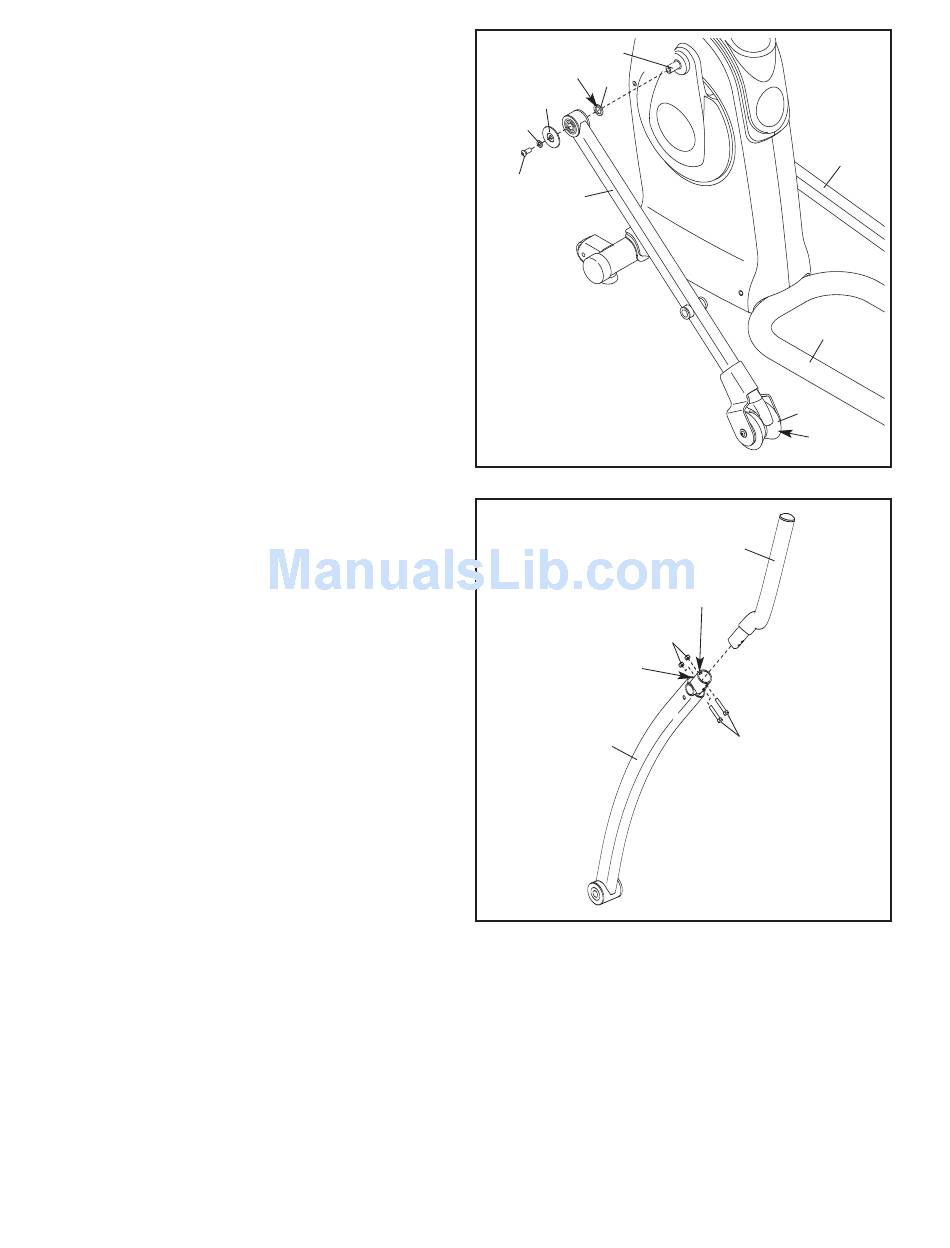

5. Identify the Left Roller Leg (12), which is marked
with a "Left" sticker. Orient the Left Roller Leg as
shown near the left Crank Arm (36).
Apply a small amount of the included grease to
both sides of a Wave Washer (98). Also, apply
grease to the Roller (22) on the Left Roller Leg
(12); spread the grease evenly around the
Roller.
Slide the Wave Washer (98) onto the left Crank
Arm (36). Next, slide the Left Roller Leg (12)
onto the Crank Arm and set the Roller (22) on
the Base (1). Attach the Left Roller Leg with an
M10 x 23mm Shoulder Screw (80), an M10 x
20mm x 1.5mm Washer (84), and a Crank Axle
Cap (30).
Repeat this step to attach the Right Roller
Leg (21) to the right Crank Arm (not shown).
6. Identify the Left Handlebar (8), which is marked
with a "Left" sticker. Insert the Left Handlebar into
one of the Handlebar Legs (11) as shown.
Attach the Left Handlebar (8) with two M8 x
42mm Bolts (71) and two M8 Nylon Locknuts
(96). Make sure that the Nylon Locknuts are
inside the hexagonal holes.
Assemble the Right Handlebar (not shown)
and the other Handlebar Leg (not shown) in
the same way.
