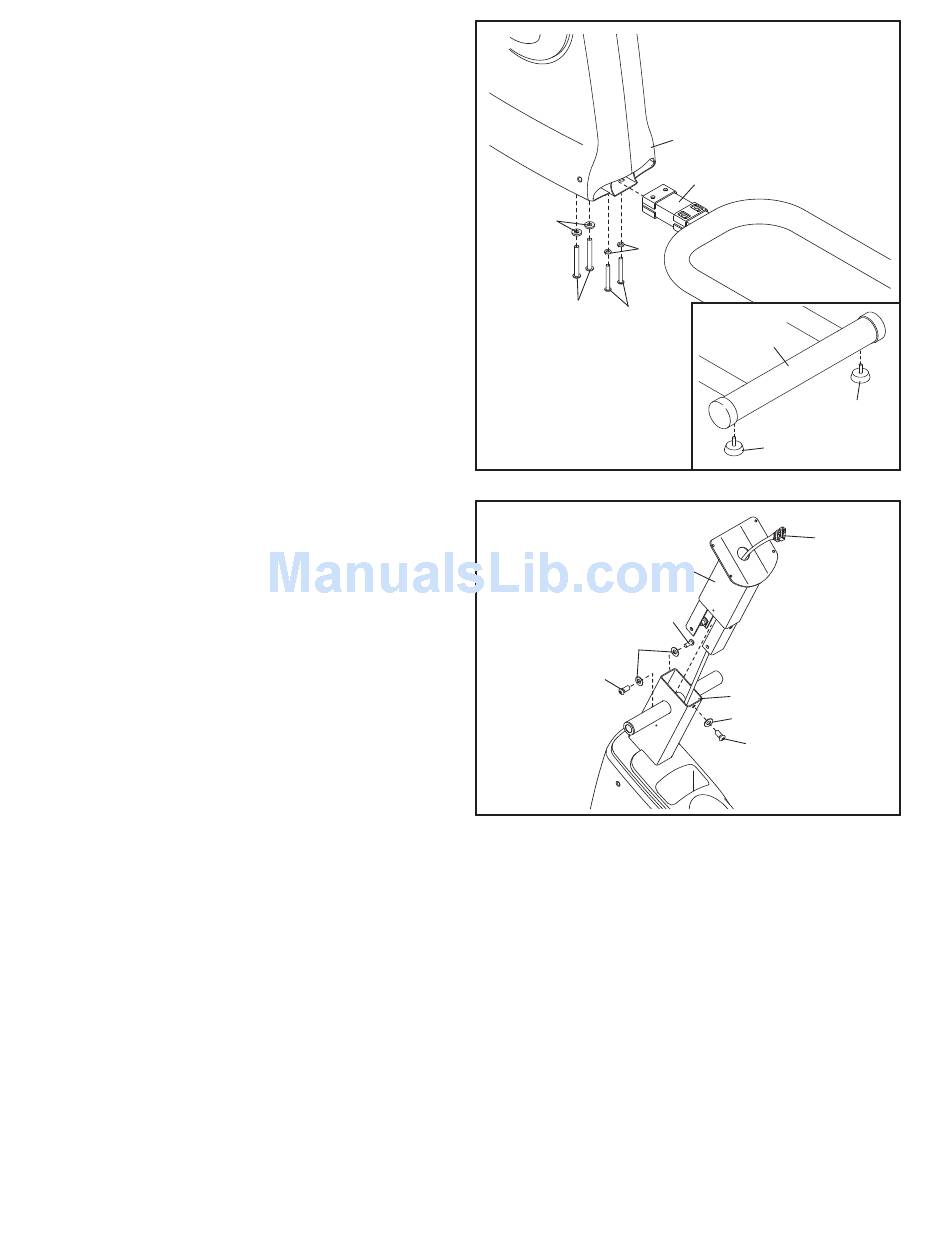

3. Orient the Base (1) near the Frame (2) as
shown. See the inset drawing. Attach two Feet
(26) to the underside of the Base.
Have a second person tip the Frame (2) forward.
Insert the Base (1) into the Frame. Attach the
Base with two M10 x 62mm Bolts (89), two M10
Spacers (76), two M8 x 48mm Button Screws
(78), and two M8 Split Washers (72).
4. Have a second person hold the Upright (6) near
the Frame (2) as shown.
Pull the Wire Harness (48) out of the Frame (2)
and insert it upward through the Upright (6). Do
not let the Wire Harness fall into the Upright; use
a piece of tape or an elastic band to hold the
Wire Harness in place until step 12.
Insert the Upright (6) into the Frame (2). Attach
the Upright with three M8 x 16mm Button Screws
(95) and three Star Washers (100). Avoid pinch-
ing the Wire Harness (48) between the
Upright and the Frame.
