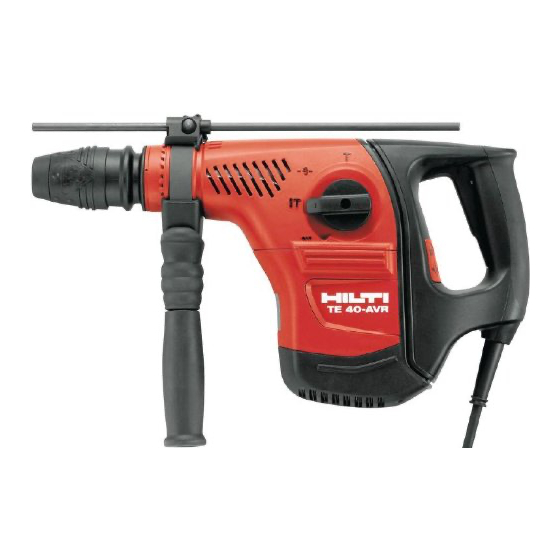

Hilti TE 40 Operating Instructions Manual
Combihammer
Hide thumbs
Also See for TE 40:
- Operating instructions manual (238 pages) ,
- Manual (168 pages) ,
- Instructions manual (142 pages)
Related Manuals for Hilti TE 40
Summary of Contents for Hilti TE 40

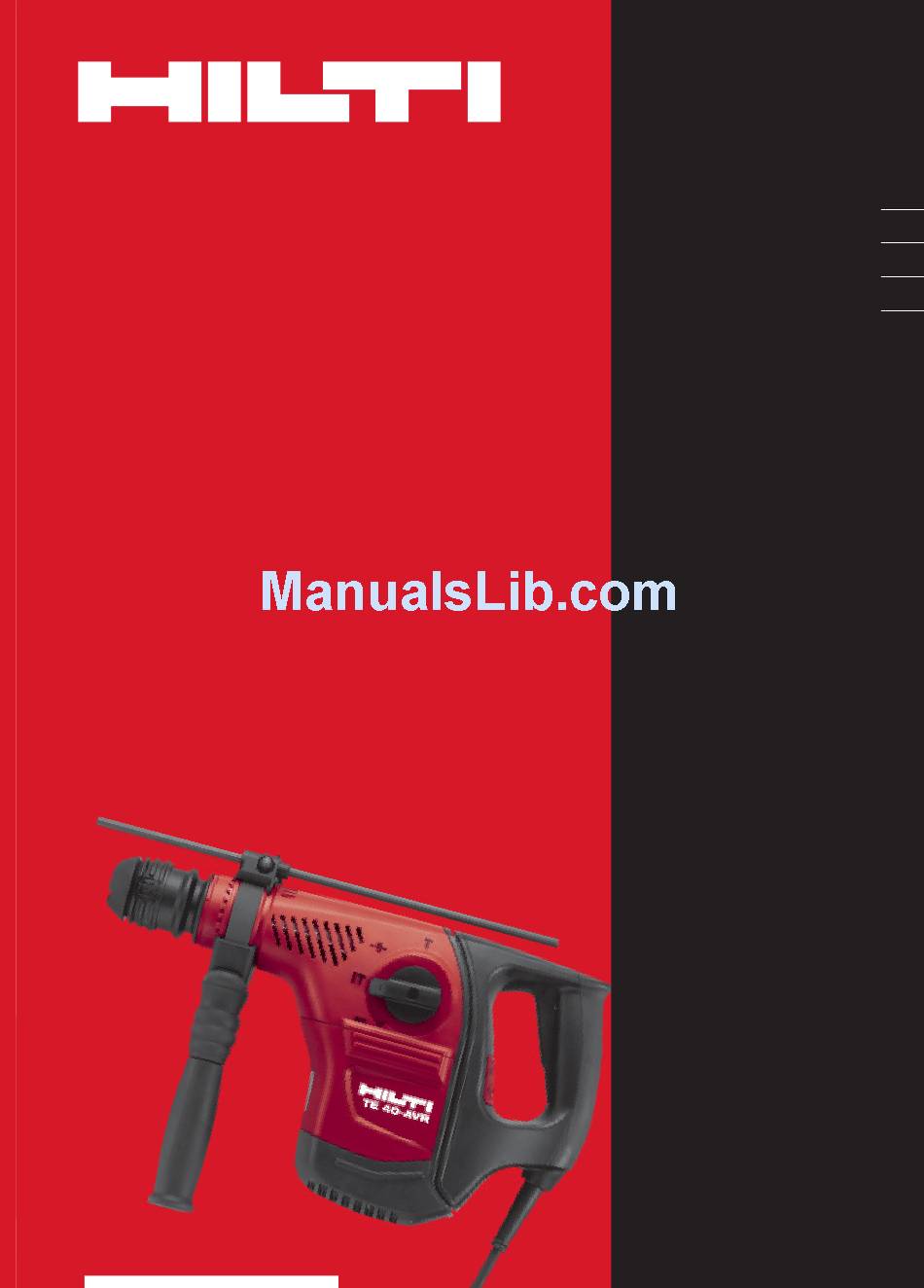

- Page 1 TE 40 / TE 40-AVR Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 07.07.2013 | Doc-Nr: PUB / 5142305 / 000 / 00...
- Page 2 This Product is Certified Ce produit est certifié Este producto esta certificado Este produto está certificado Printed: 07.07.2013 | Doc-Nr: PUB / 5142305 / 000 / 00...
- Page 3 Printed: 07.07.2013 | Doc-Nr: PUB / 5142305 / 000 / 00...
- Page 4 Printed: 07.07.2013 | Doc-Nr: PUB / 5142305 / 000 / 00...
-
Page 5: Table Of Contents
In these operating instructions, the designation “the Always keep these operating instructions to- power tool” always refers to the TE 40 or TE 40-AVR gether with the power tool. combihammer. Ensure that the operating instructions are... -
Page 6: Description
Modification of the power tool or tampering with its parts is not permissible. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance. - Page 7 (see section 9 “Troubleshooting”). 2.6 Lubrication Oil lubrication 2.7 Active vibration reduction (only TE 40‑AVR) The power tool is equipped with an AVR active vibration reduction system which reduces vibration significantly compared to power tools without active vibration reduction. 2.8 TPS theft protection system (optional) The power tool may be equipped with the TPS theft protection system as an option.
-
Page 8: Insert Tools, Accessories
∅ 6…32 mm (¼ to 1¼") Metal drill bits ∅ 6…13 mm (¼ to ½") 4 Technical data Right of technical changes reserved. Power tool TE 40 / TE 40‑AVR Rated voltage 120 V Rated current input 12.4 A Mains frequency 50…60 Hz... -
Page 9: Safety Instructions
Power tool TE 40 / TE 40‑AVR Weight, TE 40‑AVR 5.6 kg (12.35 lb) Dimensions (L x W x H) 425 mm (16.73") x 113 mm (4.45") x 243 mm (9.57") Speed under no load 550/min Single impact energy 4.9 J Drilling dia. - Page 10 Use auxiliary handles, if supplied with the tool. Hilti Customer Service. Check extension cords Loss of control can cause personal injury. at regular intervals and replace them if found to c) Hold power tool by insulated gripping surfaces, be damaged.
-
Page 11: Before Use
Hilti and designed to filter out microscopic particles Service Center. Under unfavorable circumstances, and direct dust away from the face and body. -
Page 12: Operation
7 Operation 7.1.3 Removing the insert tool 5 Disconnect the supply cord plug from the power outlet. Open the chuck by pulling back the insert tool lock- ing sleeve. CAUTION Pull the drill bit out of the chuck. In accordance with the applications for which it is de- signed, the power tool produces a high torque. - Page 13 CAUTION 7.2.3 Hammer drilling (B) 9 Improve the blood circulation in your fingers by re- NOTE laxing your hands and exercising your fingers during Working at low temperatures: The hammering mecha- breaks between working. nism works only when the power tool has reached a minimum operating temperature.
-
Page 14: Care And Maintenance
Blinking red light See section “Troubleshooting”. damaged or when the controls do not function faultlessly. 8.4 Maintenance If necessary, the power tool should be repaired by Hilti WARNING Service. Repairs to the electrical section of the power tool may be carried out only by trained electrical specialists. -
Page 15: Disposal
10 Disposal Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling. Please ask your Hilti customer service department or Hilti representative for further information. - Page 16 This constitutes Hilti’s entire obligation with regard to warranties. warranty and supersedes all prior or contemporaneous...
- Page 17 Tel.: +423 / 234 21 11 Fax:+423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 3161 | 0513 | 00-Pos. 3 | 1 Printed in Liechtenstein © 2013 Right of technical and programme changes reserved S. E. & O 274307 / A2 Printed: 07.07.2013 | Doc-Nr: PUB / 5142305 / 000 / 00...
