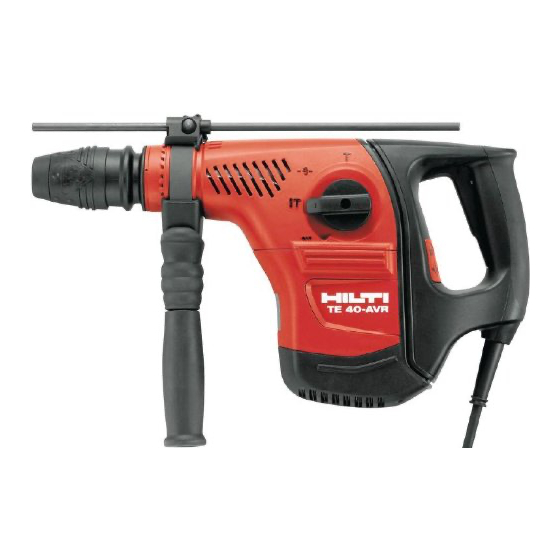

Hilti TE 40 Manual
Hide thumbs
Also See for TE 40:
- Operating instructions manual (238 pages) ,
- Manual (168 pages) ,
- Instructions manual (142 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Hilti TE 40
Summary of Contents for Hilti TE 40
- Page 1 TE 40 TE 40-AVR English Printed: 17.03.2017 | Doc-Nr: PUB / 5142305 / 000 / 01...
- Page 2 Printed: 17.03.2017 | Doc-Nr: PUB / 5142305 / 000 / 01...
- Page 3 Chisel positioning Protection class II (double-insulated) 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be English...
- Page 4 The type designation and serial number are stated on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
- Page 5 ▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
- Page 6 ▶ If the battery is too hot to touch it may be defective. In this case, place the power tool in a non-flammable location, well away from flammable materials, where it can be kept under observation and allowed to cool down. Contact Hilti Service after the battery has cooled down. English...
- Page 7 3 Description 3.1 Parts, indicators and operating controls English Printed: 17.03.2017 | Doc-Nr: PUB / 5142305 / 000 / 01...
- Page 8 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 4 Technical data 4.1 Combihammer...
-
Page 9: Operation
TE 40 TE 40AVR Ø drill bits for metal 1/4 in …1/2 in 1/4 in …1/2 in Ø drill bits for metal 6 mm …13 mm 6 mm …13 mm 5 Operation 5.1 Preparations at the workplace CAUTION Risk of injury! Inadvertent starting of the product. - Page 10 5.1.3 Removing the chuck CAUTION Risk of injury! The depth gauge, if fitted but not used, may hinder the user. ▶ Remove the depth gauge from the tool. Note To change the chuck, set the function selector switch to this position 1.
- Page 11 1. Apply a little grease to the connection end of the accessory tool. ◁ Use only genuine Hilti grease. Use of the wrong grease can result in damage to the tool. 2. Push the accessory tool into the chuck as far as it will go, turning it and applying light pressure until it engages with an audible click.
- Page 12 Check extension cords at regular intervals and replace them if found to be damaged. 5.2.1 Function selector switch ▶ Set the function selector switch to the desired working position. ◁ Do not operate the function selector switch while the motor is running. Risk of damage! 5.2.2 Drilling without hammering ▶...
- Page 13 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 7 Transport and storage •...
-
Page 14: Troubleshooting
Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information. - Page 15 Printed: 17.03.2017 | Doc-Nr: PUB / 5142305 / 000 / 01...
- Page 16 Hilti = registered trademark of Hilti Corp., Schaan 20170308 Printed: 17.03.2017 | Doc-Nr: PUB / 5142305 / 000 / 01...
