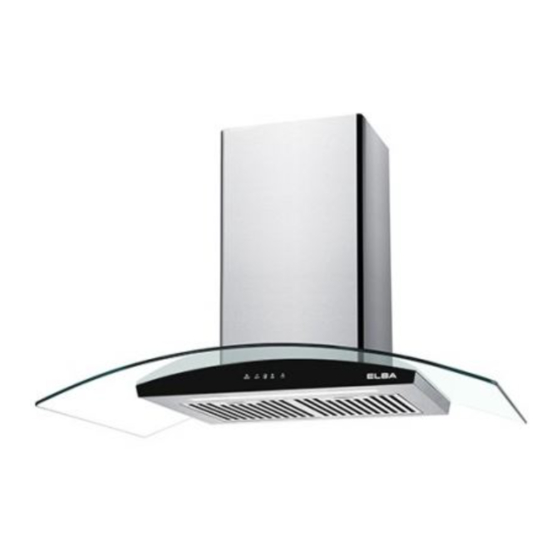

- Page 1 DESIGNER HOOD Covo 668/90 Covo 669/90GP USER MANUAL...
- Page 2 TROUBLE SHOOTINGS CAUTION: Disconnect the power supply before servicing. STATUS CAUSE AND METHOD OF REPAIRING TOOL The power "+" type If the power supply is damaged,please call supply is Screwdriver technicians to repair. damaged Sharp Pincers a) Remove the vane guard and rotate the vane by hand,If the vane cannot move smoothly, the core or bearings of the motor may be damaged.
- Page 3 READ AND SAVE THESE INSTRUCTIONS MANUAL Dress the protective glove before you start to clean the hood. Remove the components gently during Glove CONTENTS carrying out the clearance. TECHNICAL CHARACTERISTICS ........1 Never wash the control switch with water BODY SIZE ..................1 or other kind of liquid to avoid the liquid might cause electrical problem to...
- Page 4 Do not connect the air outlet to chimney flues or combustion gas ducts. TECHNICAL CHARACTERISTICS MODEL NO.: Covo 668/90 、Covo 669/90GP TOTAL POWER: 254W THREE SPEED MOTOR: 250W LED LIGHTS:2x2W Do not leave naked...
- Page 5 10. The same way to take out the other fan. MAIN PARTS NAME 11. After clean, please assemble it like the opposite ways of loose it. Duct bracket Note: Left motor fixed cover and fan have a little difference from right side ,there is a letter ＂R ＂on the right side cover and a letter ＂L＂...
- Page 6 3. Clean the aluminium filter once a week or according to use status. 2. Install the cooker hood right above the hob.The recommended distance Press the buckle of the aluminium filter slightly, take off the aluminium between the hob and the lower edge of the cooker hood is minimum 650mm and maximum 700mm.
- Page 7 OPERATING INSTRUCTION INSTALLATION PROCEDURES SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES;PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. Step 1: A: Touch A , the fan runs at the low speed. Press it again, the fan turns off. Fix the position of the cooker hood B: Touch B, the fan runs at the mid speed.
- Page 8 Step 8: Step 4: Exhaust pipe 1. Draw the inner duct cover up to Expanding Tube Take out the cooker hood from the suitable high, mark on the wall 5x60 Wood Screw the carton and put it on a horizon- Air outlet two keyhole of the outer duct cover bracket with a pen .
