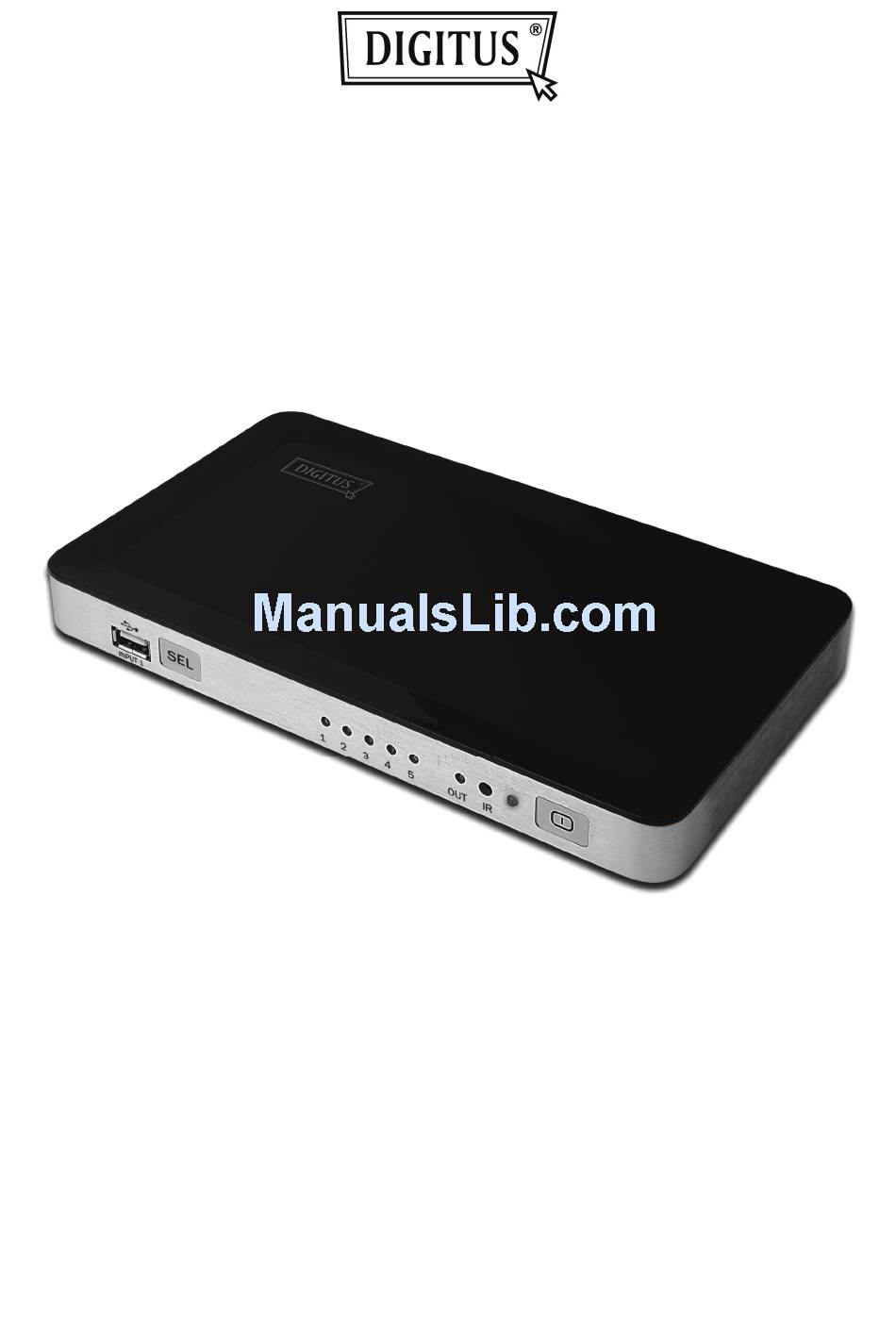

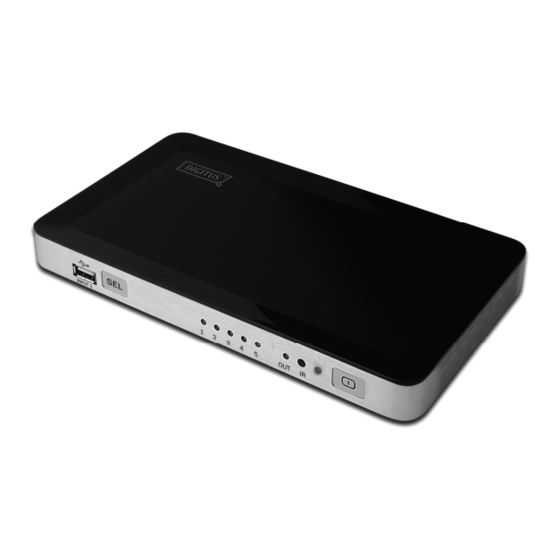

- Page 1 HDMI VIDEO SWITCH 4+1 PORT + INTEGRATED PC CONNECTION User Manual DS-45310...
- Page 2 TABLE OF CONTENTS Introduction ........................2 Specifications ........................3 Package Contents ......................3 Panel Descriptions ......................4 Connection and Operation ....................5 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
-
Page 3: Specifications
2.0 SPECIFICATIONS Signal Inputs/Output Input port USB 2.0 x1, HDMI x4 Output port HDMI x1 Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth Max. 2.25Gbps/225MHz Resolutions(HDTV) Interlaced(50&60Hz) 480i,576i,1080i for HDMI Progressive(50&60Hz) 480p,576p,720p,1080p for HDMI; Max to 1920X1080,1600X1200 for USB Mechanical Size(L-W-H) 220×130×25mm... -
Page 4: Panel Descriptions
4.0 PANEL DESCRIPTIONS Front Back 5.0 CONNECTION AND OPERATION Connection 1) Connect the HDMI source devices to the HDMI inputs of this product. (Input cables are optional) 2) Connect Computer to the USB 2.0 input of this product using one USB male to male cable. -
Page 5: Connection Diagram
5.1 CONNECTION DIAGRAM a HDMI Input b HDMI Output c USB 2.0 Input 1 DVD Player 2 Playstation 3 SAT Receiver 4 Blue-Ray Player 5 PC 6 Notebook 7 HDTV...
