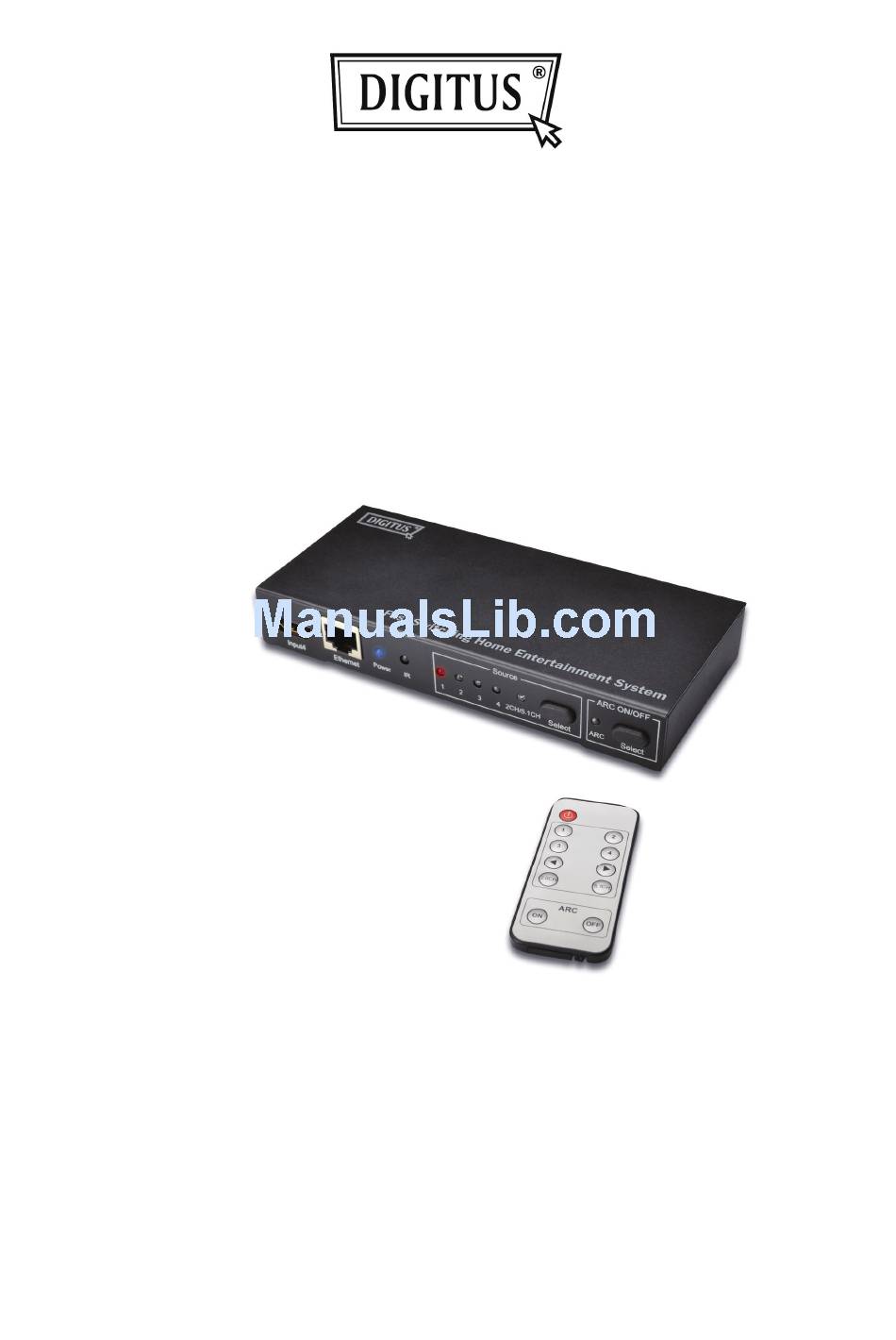

- Page 1 4+1 PORT HDMI VIDEO SWITCH Quick Installation Guide DS-45320...
- Page 2 1. First check product packaging, including: main unit, one power adapter (5V 2A), User’s manual, one Remote Control; other devices should be prepared： Hi-Def source, HDTV, Amplifier Receiver, PC, five HDMI Cables, one Cat5e/6 Cable, three audio cables. 2. Connect four Hi-Def sources to the inputs of the main unit with a user-supplied HDMI cable.
- Page 3 3. Insert the DC side of 5V power supply into the main unit and then connect the AC side of the power supply into the wall outlet. 4. Turn on the Hi-def source，HDTV. 5. After the main unit has been properly calibrated, the Hi-Def video and audio whose content is from source will Play on HDTV immediately.
- Page 4 7. If you want to select 2CH or 5.1CH from source to output to Amplifier Receiver, you can press the 2CH or 5.1CH key on the remote control to control. 8. If you want to output audio from HDTV to Amplifier Receiver, please first enable the ARC function of the HDTV, then press the ARC ON on the remote control or ”Select”...
