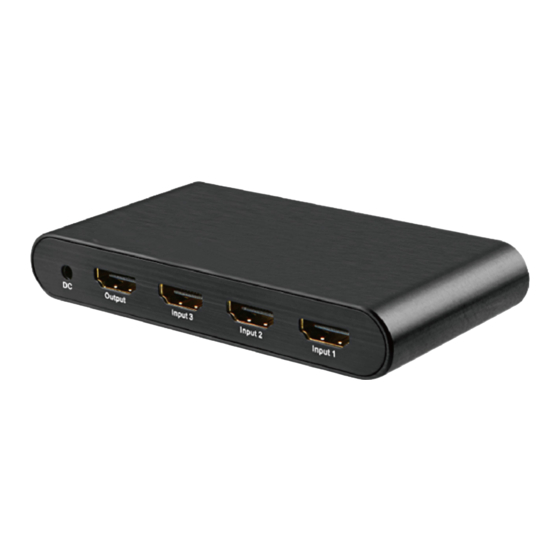

Uhd hdmi switch, 3x1
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

UHD HDMI Switch, 3x1
User Manual
DS-45316 Rev.2

Introduction

DIGITUS® UHD HDMI Switch, 3x1 is a high-performance HDMI UHD
Switcher. This switcher not only has the key-press-switching function, it
also has intelligent switching function. The switcher routes high definition
video (in multiple resolutions up to 4kx2k@60HZ) and digital audio from
any one of the several sources to display units. All inputs accommodate the
Connections of the high definition video sources simultaneously.
All brand names and logos which mentioned above are trademarks or registered trademarks of
the respective owner.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-45316 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DS-45316

Summary of Contents for Digitus DS-45316

  • Page 1 User Manual DS-45316 Rev.2 Introduction DIGITUS® UHD HDMI Switch, 3x1 is a high-performance HDMI UHD Switcher. This switcher not only has the key-press-switching function, it also has intelligent switching function. The switcher routes high definition video (in multiple resolutions up to 4kx2k@60HZ) and digital audio from any one of the several sources to display units.
  • Page 2 Features This HDMI UHD Switcher has many features that enable it to perform in a superior manner. Among those features you will find:  Supports to switch 3 HDMI sources to 1 HDMI display  Multifunctional on switching: intelligent or mechanical ...
  • Page 3 Specifications Signal Inputs/Output Input Video HDMI Maximum Single Link Range Full 3D and 4Kx2K@60HZ Output Video HDMI Operating Frequency Vertical Frequency Range 24/30/50/60Hz Video Amplifier Bandwidth 6Gbps/600MHz Resolutions (HDTV) Interlaced (50&60Hz) 480i, 576i, 1080i Progressive (50&60Hz) 480p, 576p, 720p, 1080p, 4K2K@30HZ, 4K2K@60HZ, Environmental Operating Temperature...
  • Page 4 Connection Diagram 5V Power Adapter HDMI Source 1 HDMI Display HDMI Source 2 HDMI Source 3 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
