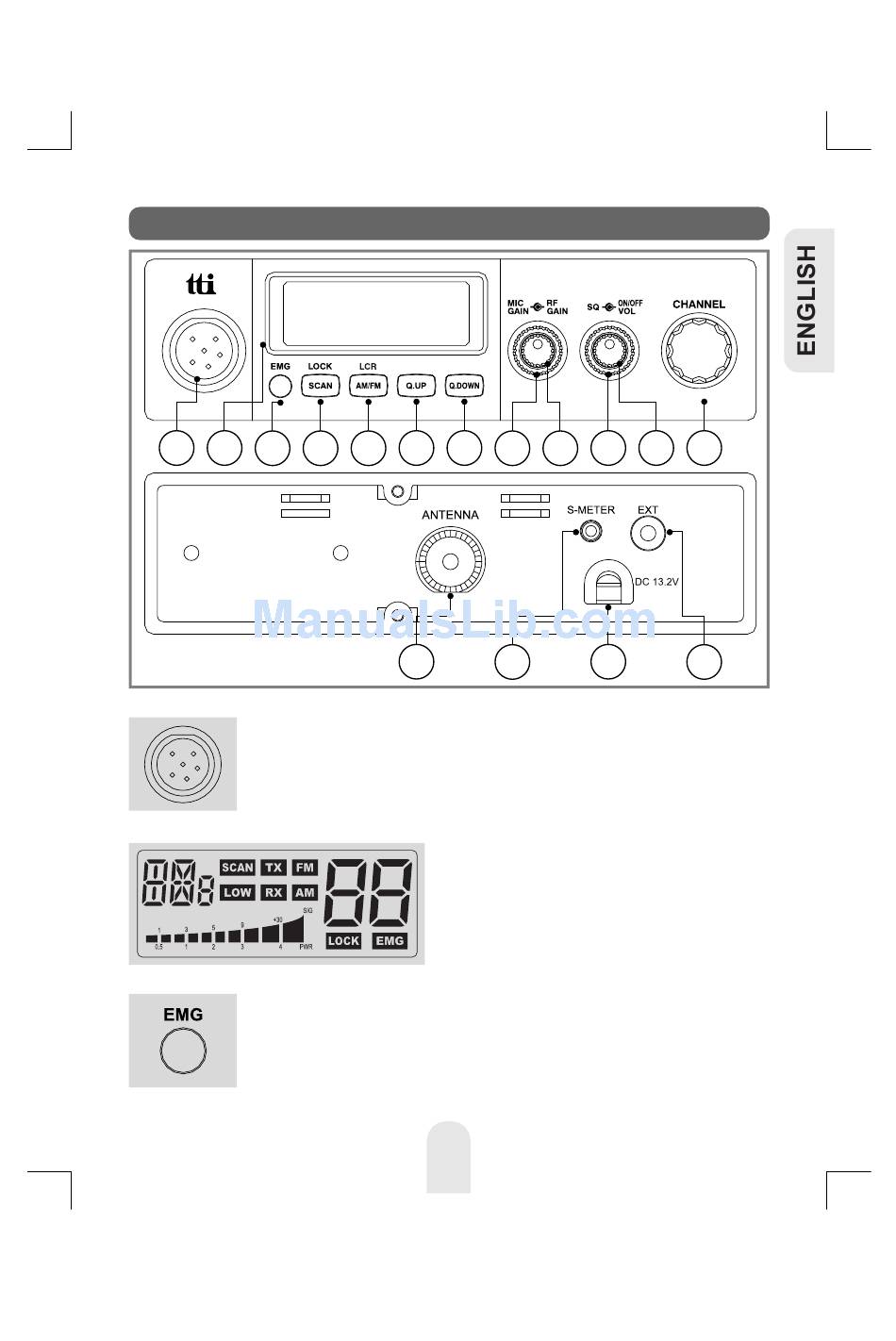

4. Transceiver Controls and Functions
1
2
3
1) Microphone Jack
Insert the microphone into this jack. Use the guide
for easy connection.
2) LCD Display
3) Emergency Button
Pressing this button will lead you to the emergency
channel, "CH 9" and the EMG icon will be displayed.
The channel selector and quick up/quick down
buttons will not work. To return to the previous ope-
ration mode, momentarily press the emergency button again.
4
5
6
7
13
Most of the operational
information is displayed.
Please see item no. 5 for the
details of information.
6
8
9 10 11 12
14
15
16
